RITE-HITE Eclipse 620G - Page 14

Eclipse
®
Dock Shelter (620G, 620NH) Installation/Service/Owner's Manual Rite‑Hite
®
14 Publication: AMEN00141 2019-11-22
INSTALLATION
Weighted Seal, Wear Panel
Continued

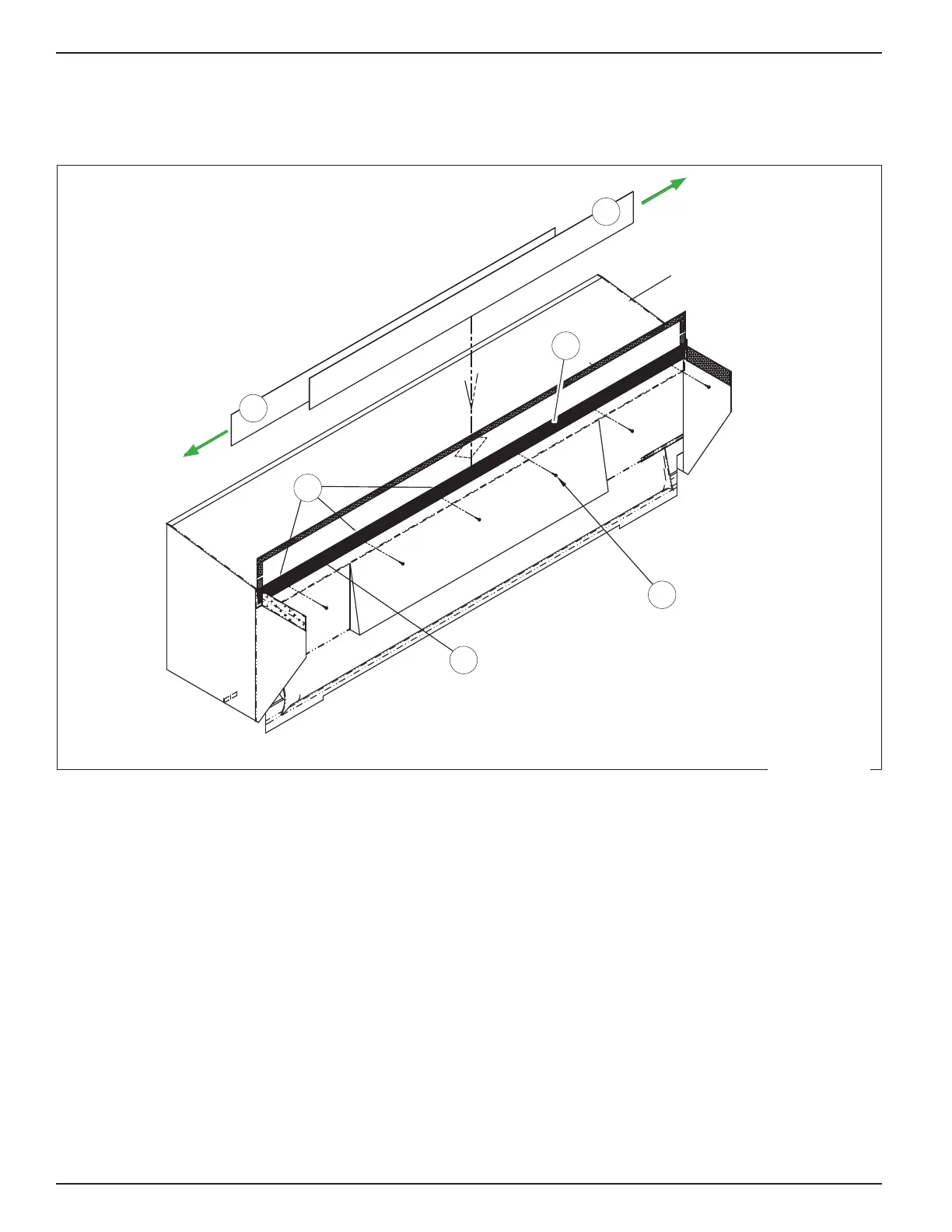

Secure Roller Seal Assembly
<Secure Roller Seal Assembly_adj.pdf>
B
A1
A2
C
D
Canopy Top
E
1. Insert gutter panels (A1, A2) in pocket (B) located
behind 4in [102mm] touch and hold fastener on
weighted seal.
Slide 1 HMWPE panel right (A1) and 1 HMWPE panel
left (A2) to ll entire width of pocket.
2. Secure seal assembly and gutter panel to front bar
in 6 places with 1 1/4in [30mm] long self drill/tap
screws (C).
• Do not use washers with these 6 fasteners.
• Align fasteners with tabs (D) on top edge of fabric
ap (E).
• Do not put screw at center location.
Figure 16
