RITE-HITE Eclipse 620G User Manual

Rite‑Hite
®
Installation/Service/Owner's Manual Eclipse
®
Dock Shelter (620G, 620NH)
Publication: AMEN00141 2019-11-22 15
INSTALLATION
Weighted Seal, Wear Panel
Continued

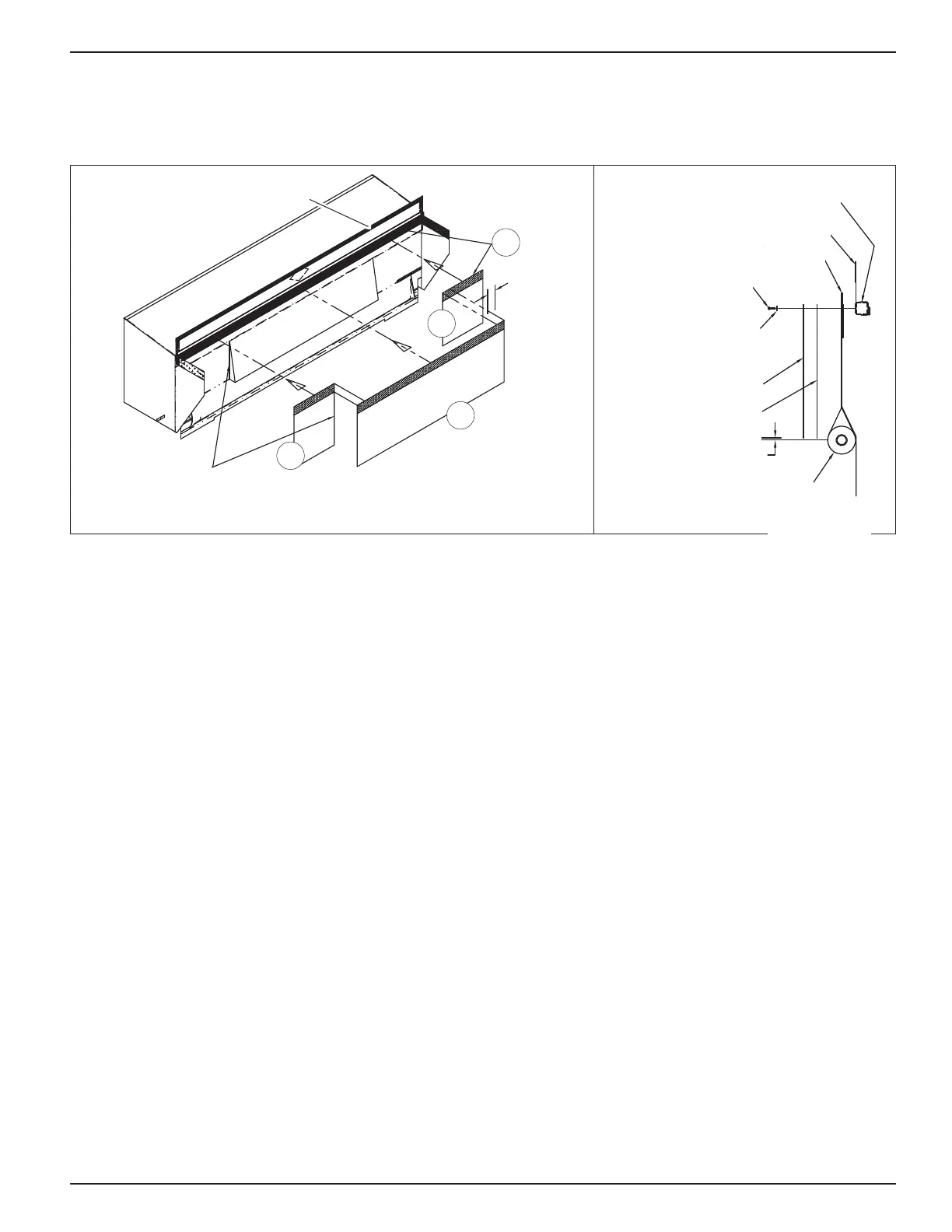

Position Wear Panels on Head Frame
B
C
Align inside edge of
(A) with outside of
center foam block.
A
A
≈ 4in
[100mm]
overlap
Flap
<Eclipse Manual ‑ Wear Panels_191004.pdf>
1/2in [13mm] MAX.
Side View
Roller Seal Assembly
Corner Wear Panel
Center Wear Panel
Assembly
Washer
Fastener
Gutter Panel Assembly
Gutter Flap (Shown Up)
Front Bar
1. Align top edges of corner and center panels with top
of touch and hold fasteners on the canopy (C).
• Position both corner panels (A).
• Center wear panel assembly (B) on
center of unit width.
Figure 17
