Dock Shelter (620G, 620NH) Installation/Service/Owner's Manual Rite‑Hite
®
16 Publication: AMEN00141 2019-11-22
INSTALLATION
Weighted Seal, Wear Panel
Continued

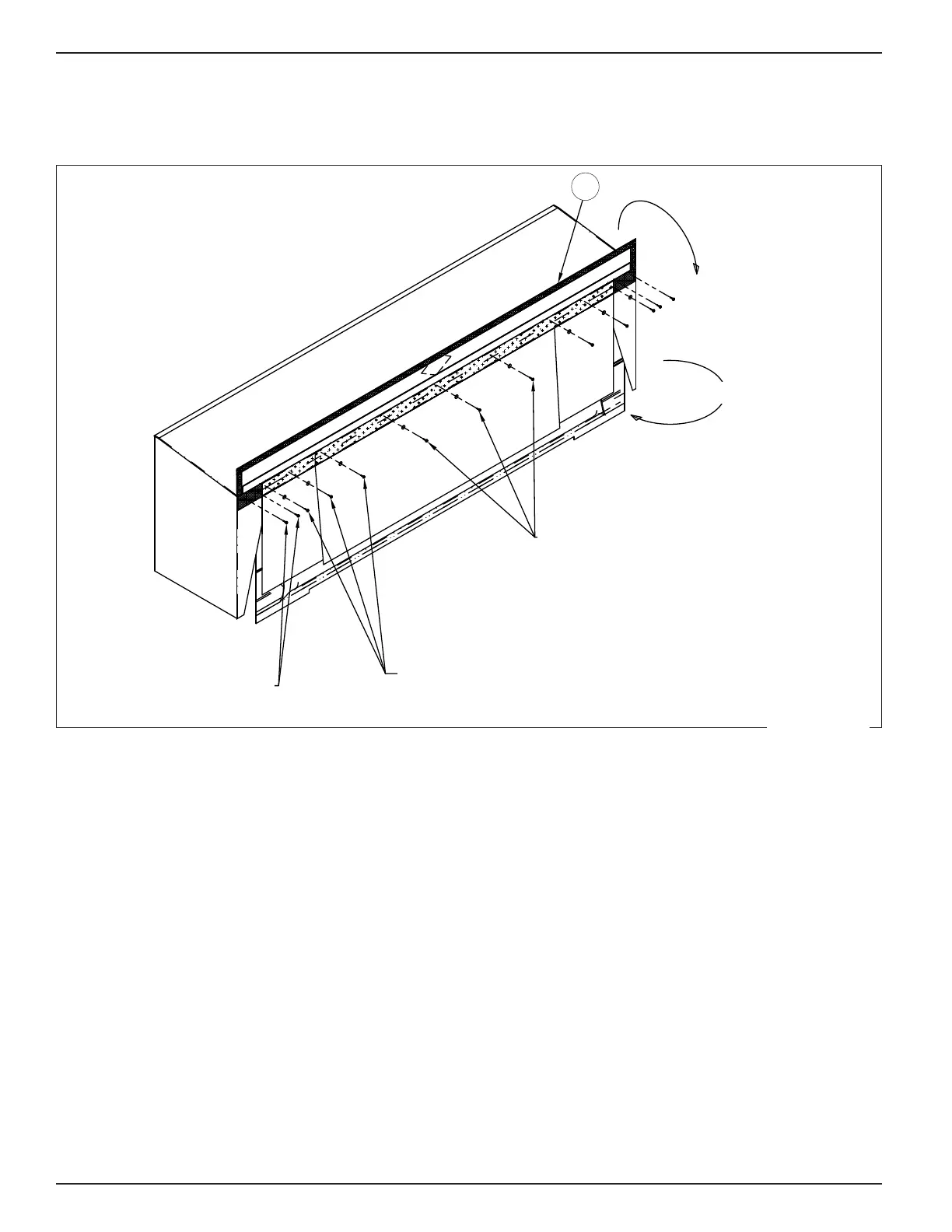

Secure Wear Panels, Front Flaps and Gutter Flap
<Eclipse Manual ‑ Secure wear panels_191004.pdf>
A
Secure each front ap:
(2) 1‑1/4in self drill/tap screws
with washers
Secure each corner wear panel (inside screw goes
through center wear panel assembly and corner
wear panel):
(3) 2in self drill/tap screws with washers
Secure center wear panel assembly. Align screws
with fabric tabs on top edge of fabric:
(3) 2in self drill/tap screws with washers
Front Flap
1. Install fasteners
(Figure 18).
2. Fold over gutter flap (A) and secure touch and hold
fastener.
Figure 18
