INSTALLATION
Bumpers
1in ‑ 2in [25mm ‑ 50mm]
below dock level

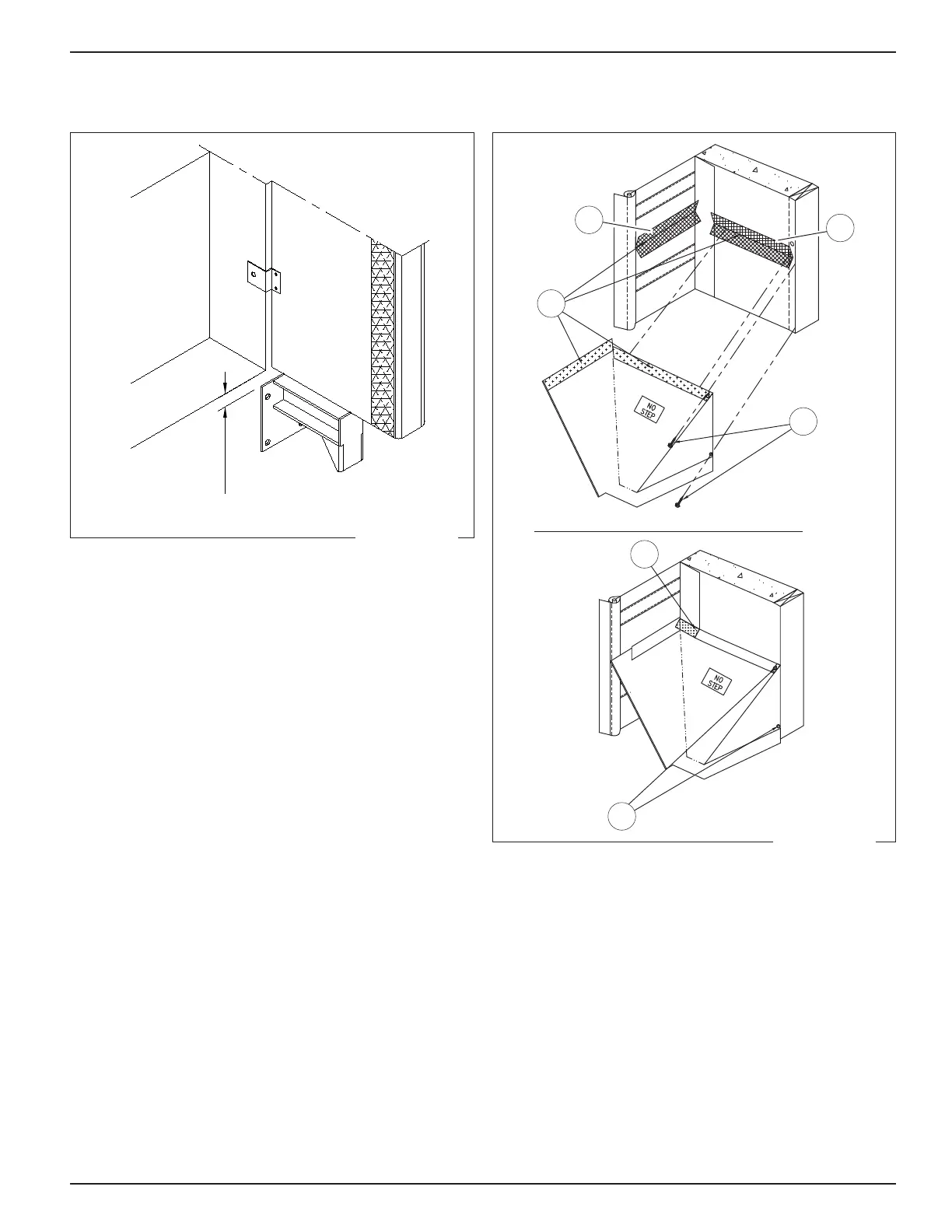

1. Mount 1 bumper per side frame to the foundation wall.
2. Position bumpers so they are centered with the side
frames, and located 1in ‑ 2in [25mm ‑ 50mm] below
dock level.
3. Fasten the bumpers to the building’s foundation
wall. Use a 1/2in lag bolt with expansion shields,
1/2in 1 piece anchor bolts with expansion collar, or
equivalent fastener. 4 anchors per bumper (required).
Collapsible Style Draft Pad
B
D
C
D
A2
A1
1. Open attachment flap(s) on side member (A1)
and back of side curtain (A2).
2. Align the draft pad's top edges to the center stitch
lines on the attachment flaps (B). Press into place on
touch and hold fasteners.
3. Flip down the upper flap(s) so they lay over the touch
and hold fastener on the draft pad. The draft pad
should fit exactly between the building wall and the
back side of the side curtain (C).
4. Press firmly to attach.
5. Install 2 fasteners through the grommets into the
backer board (or blockout) on the side frame (D).
Figure 19
Figure 20
