It is important to verify the following basic information
before starting with the installation.
TO PREVENT DAMAGE TO CONTENTS, STORE DRY
BETWEEN 40° AND 80° F [4° and 27° C].
1. Alternate dimensions in brackets are in [millimeters].
2. Match control box serial number with track serial number.
3. Make sure that you are working at the correct location and
that you have any required work permits.
4. Inspect the site to make sure that there are no overhead
obstructions (sprinkler pipes, HVAC systems, electrical
supply lines, etc.) that might interfere with the installation.
5. Detour material handling equipment during the installation.
6. Make sure that the electrician is ready to bring the correct
electrical power supply to the door control box.
7. Make sure that the electrical power can be shut off
without interfering with other plant operations.
8. Move the door crate as close to the opening as possible.
9. Install optional equipment after verifying door operation.
NOTE: Electrical prints included in the parts or control
box, supersede any prints included in this owners
manual on Pages 38-42. Always check for electrical
prints.
PUB. NO. FASTRAXCLE APRIL 2014 3
FASTRAX
®
CL
CHAPTER 1 - GETTING STARTED
Make sure to barricade the door opening on both sides to prevent
unauthorized use until the door has been completely installed.
CAUTION !!!
!
When working with electrical or electronic controls, make sure
that the power source has been locked out and tagged according
to OSHA regulations and approved local electrical codes.
DANGER !!!
!
Door Opening Width
Outside dimension of lower tracks should be:
1/2 O.D.W. + 4 3/8" [111] from centerline
or O.D.W. + 8 3/4" [222] overall, ±1/8” [3]
3.2
Max 3” [76]
jamb wrap for
lower track
clearance
Min 4 1/2” [114] jamb wrap required for lower track welding
Min 6 1/2” [165] support required for upper track welding
Getting Started
3/4”
Stand-off
5 1/2”
High Side
3.1
For space clearance
requirements, see
Architectural drawings
on Pages 50 - 63.
Low Side

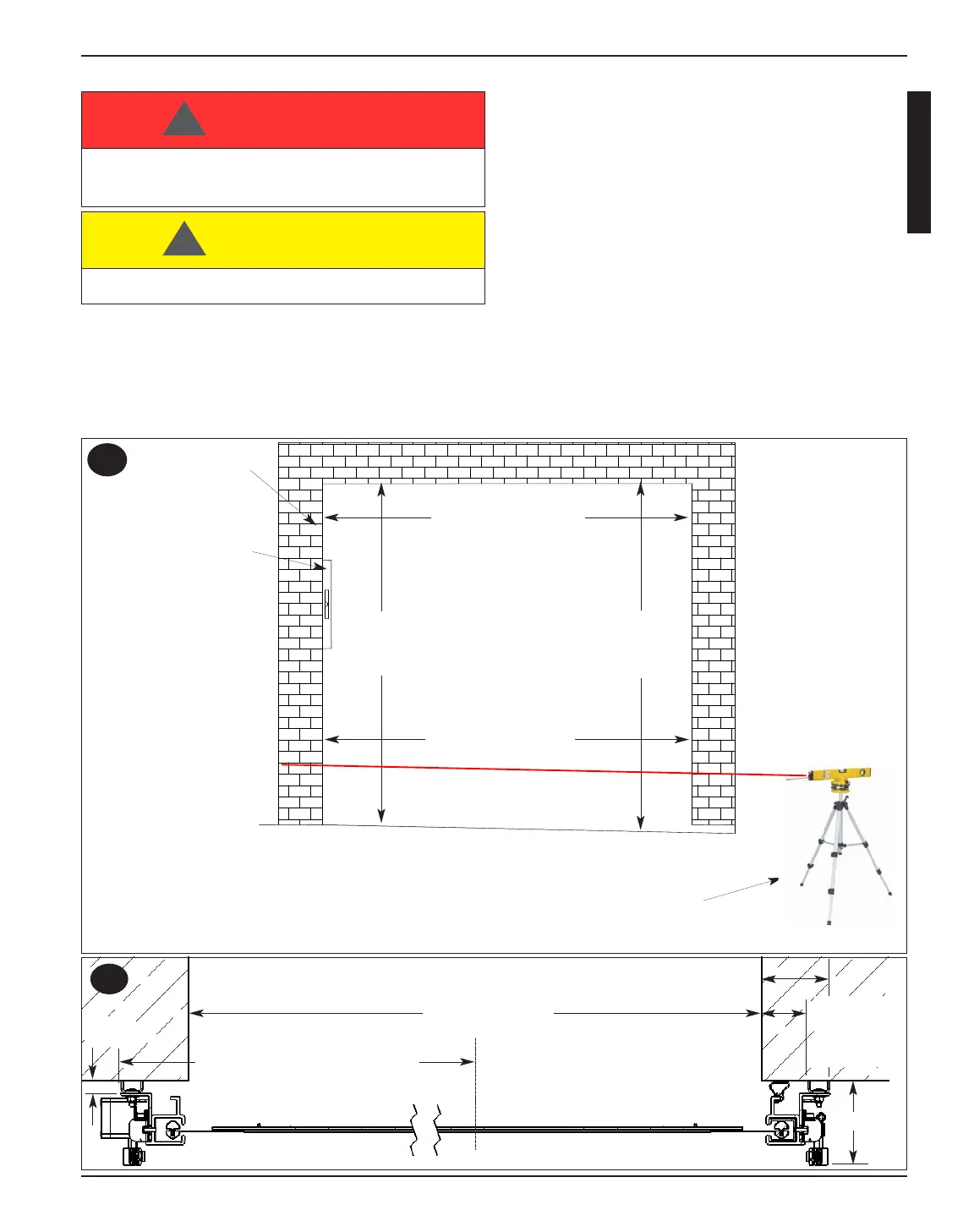

Step 1
Measure Door Opening
Width at the top
Step 2
Measure Door Opening
Width at the floor
Step 3
Measure Door
Opening Height
at left side
Step 4
Measure Door
Opening Height
at right side
Step 6
Surface MUST
be flat, smooth
and collinear with
opposite side
Step 7
Using a 6’ [1829]
carpenter’s level, verify
that the door jambs and
header are plumb and
perpendicular.
Step 5
Dimensions from Steps 1 - 4
should be within ± 1/2" [13]
of the dimensions listed on
the serial number label.
If the measurements do not
agree, STOP! Contact your
RITE-HITE DOORS, INC.
representative.
Step 8
Using a laser level, place a mark where the laser is sighted on
each side of the jamb to determine if the floor is level. Measure
both sides from floor to the mark and if the floor is not level to
within 1/8" [3], shim under the sideframe that will be located on
the “Low Side” (greatest measurement) of the door opening.
To Next Page
