12 Pub. No. 8000CLB FEBRUARY 2004
PROTECDOR® CL Model 8000CL
STAND CLEAR INSTRUCTION LABEL
1. Clean surface where label is to be placed.
2. Peel off backing on label.
3. Apply label in proper position, Figure 24.
BREAKAWAY DETECTION SYSTEM
1. Jog the door down until it is approximately 4’ off the floor.
2. Attach the plastic magnet cup assemblies at each end of
the tension assembly to the magnets, Figure 18.
3. Remove excess slack by tightening the buckle.
4. Reattach the bottom loop seal.

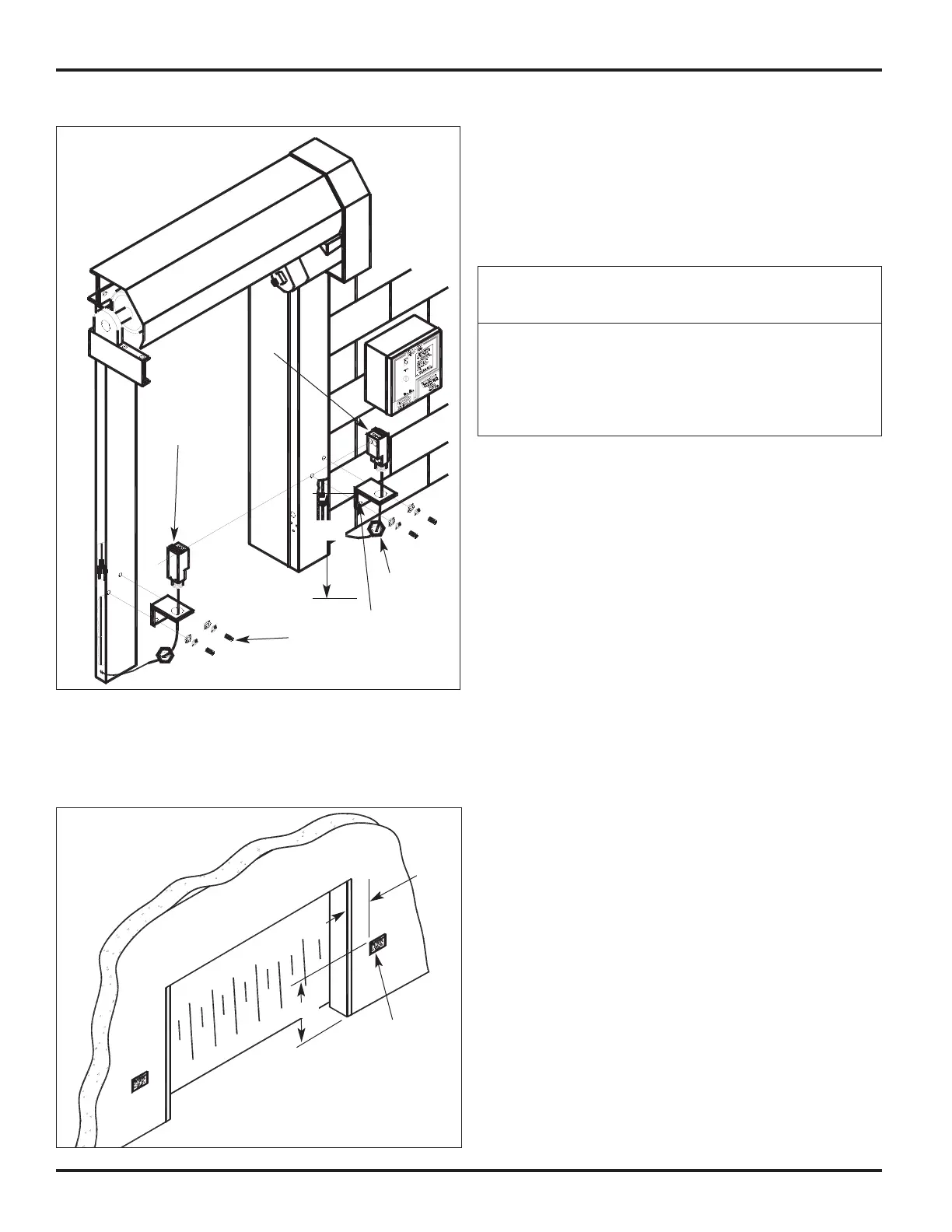

MISC INSTALLATION
FIGURE 23
Photoeye
Source
#10-24X1/2” Bolt w/Lock
& Flat Washer
Nut
Bracket
24 5/8”
FIGURE 24
View of back Side Of Door
Label Both
Sides
12”
5’-0”
In the “jog” mode (OPEN button light flashing), the
door will raise as long as the OPEN button is
pressed. In the downward direction, the door will
only advance in short steps while the button is
pressed. Do not press the contactor to jog the door.
IMPORTANT!!!
Thru-Beam Emitter
Photoeye
To Next Page
