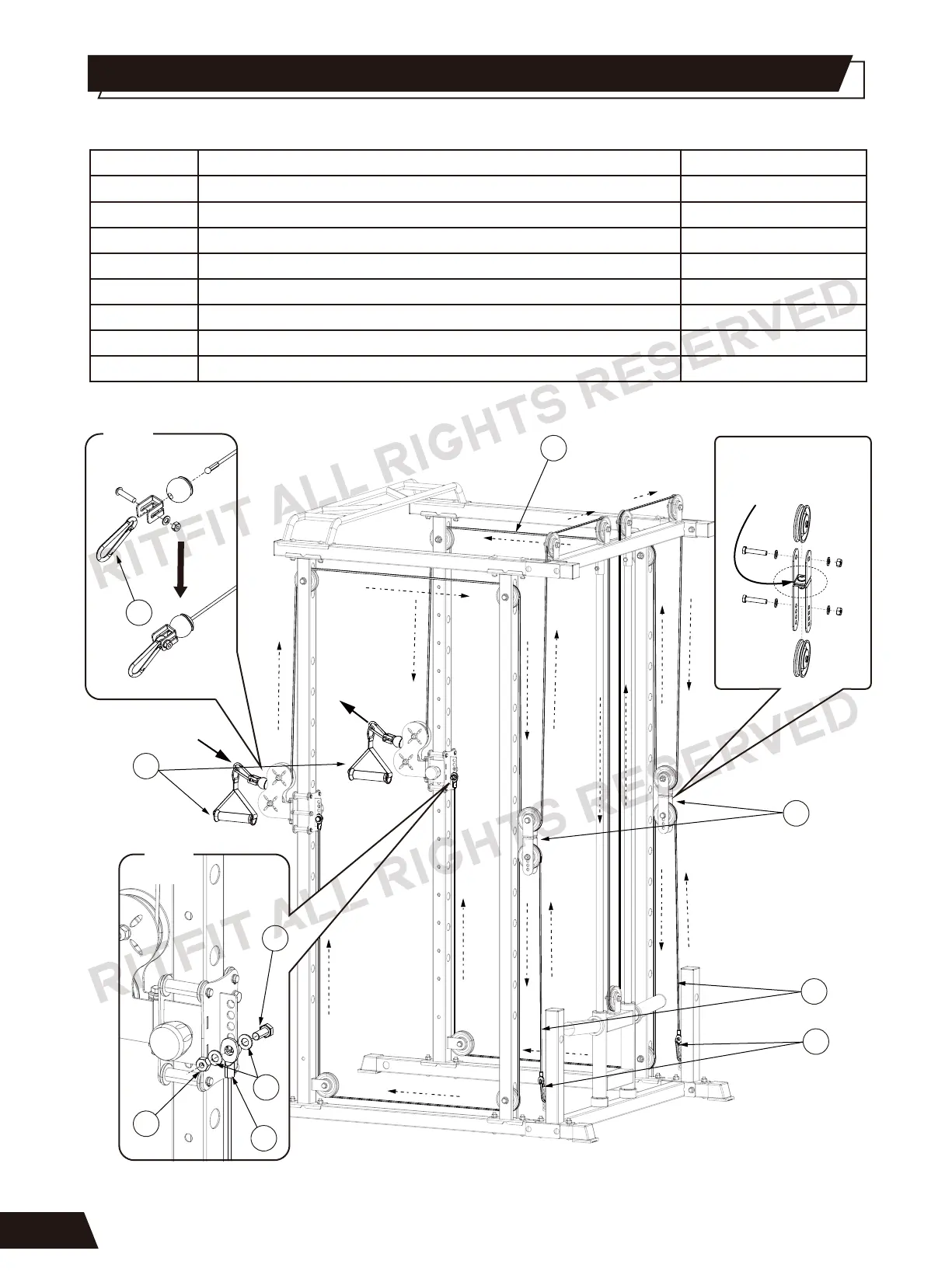

RITFIT PPC03A - Step 9: Cable and Handle Connection

4
STEP 9
15
Carabiner
Pulley Handle
2
19
NO.
1
23
Cable A
Cable B
2
24
Pulley Block
2
21
2
f
M10 Nut
M10 Washer
4
h
M10x25 Hex Bolt
2
e
DESCRIPT ION QUANTITY
start
end
*Disassemble only one side of Cable A first, then follow the step above to run through the power cage.
If this part is too tight,
adjust it by the bolt as
the diagram shows.
x2
x2
e
21
15
h
24
24
15
23
19
f
ASSEMBLY
16
