8 Handling instructions
Page 8 of 13 Rittal cooling unit assembly and operating instructions

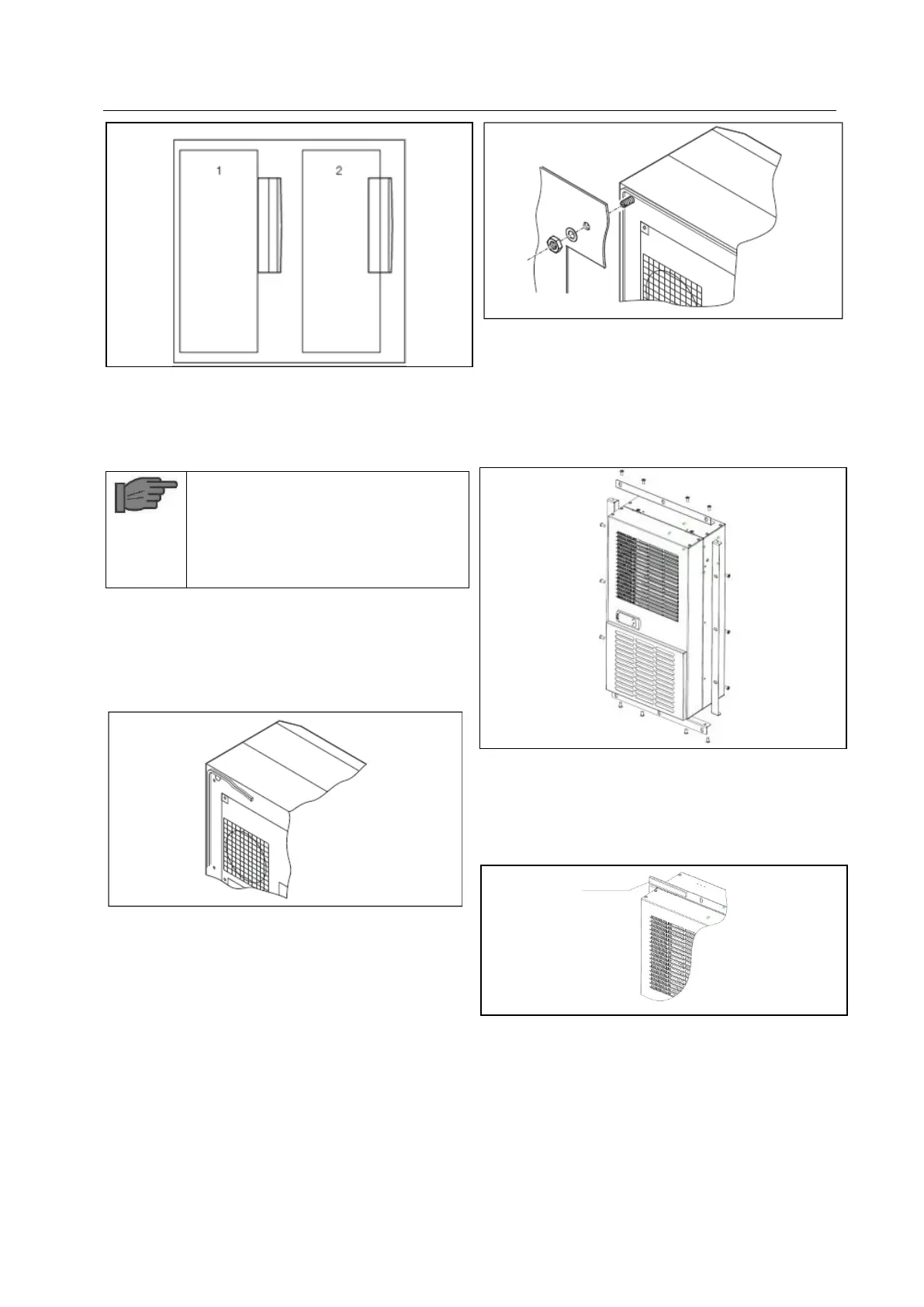

Figure 7: Installation method
To this end, cut the side panel or door of the enclo-
sure, as per the Manu included with the supply, and
drill the relevant holes.
Notice!
For mounting the units SK 3370724 in
the TS side panel or rear panel, we
recommend the use of enclosure panel
fasteners TS 8800.071 (see RITTAL
Catalogue).
8.1.1 External mounting of the cooling
unit
 Cut the supplied sealing tape to the correct
length and stick it carefully along the back of the
unit so that no gaps are left at the joints.
Figure 8: Applying the self-adhesive tape
 Screw the supplied grub screws into the blind
nuts on the rear of the unit.
 Secure the unit using the supplied washers and
nuts.
Figure 9: Securing the unit (all compact units except 3370220)
8.1.2 Partial internal mounting of the
cooling unit (accessories not in-
cluded)
 Fix the 4 mounting bars on the air conditioner by
using screws.
Figure 10: Fixing mounting bars
 Cut the supplied sealing tape to the correct
length and stick it carefully along the inside of the
rear enclosure half so that no gaps are left at the
connection points.
Figure 11: Sticking sealing tape
 Mount the front enclosure tray using the washers
and nuts.
