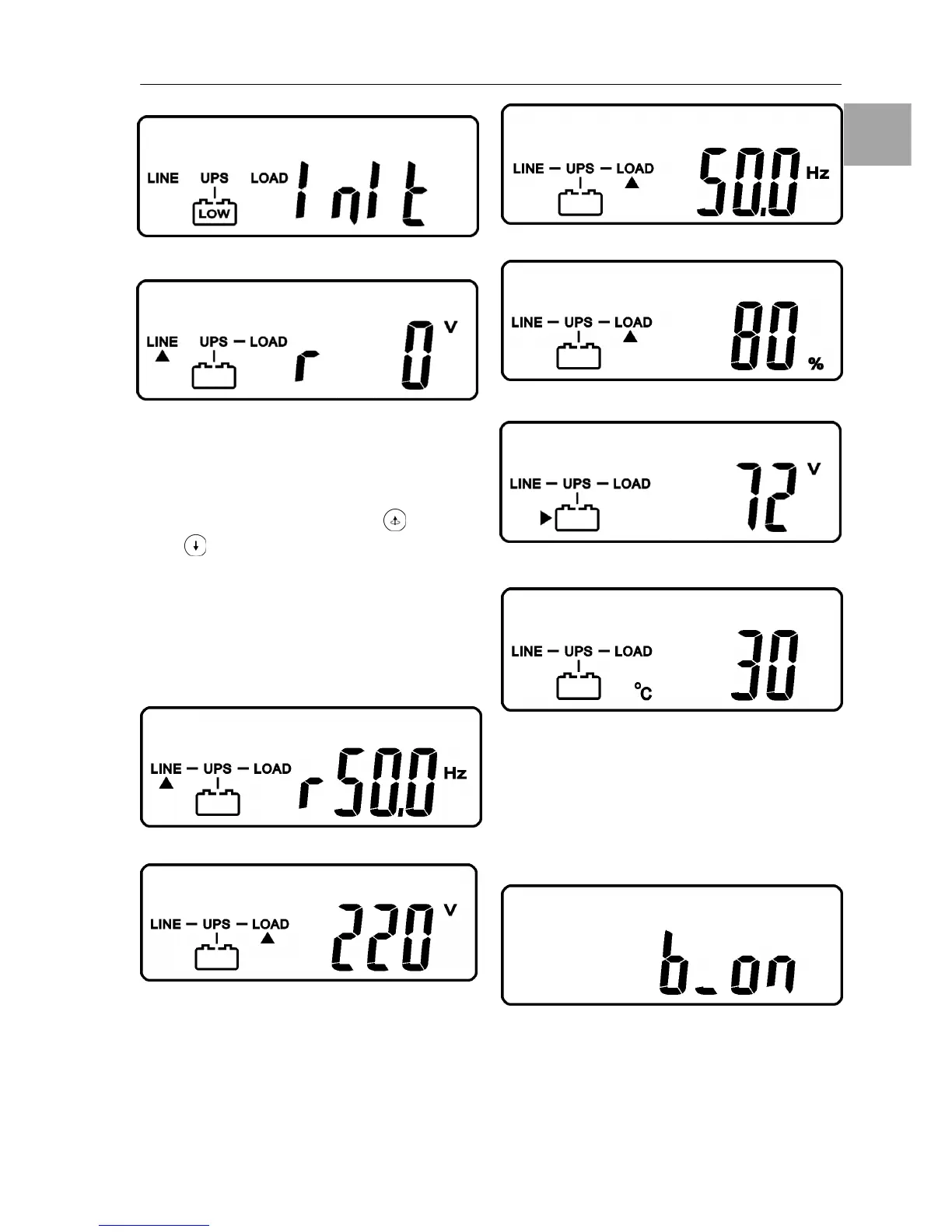

4.4.3. Check Measured Values &
Figures detected by UPS
If you would like to check the measured values
& messages, please use scroll up and scroll
down key pads. When you use scroll down
key pad, the LCD display will illustrate in se-
quence from drawing E(Input Voltage)
drawing J(Input Frequency) drawing K(UPS
Output Voltage) drawing L(UPS Output Fre-
quency) drawing M(UPS Output Load per-
centage) drawing N(UPS Battery Voltage)
drawing O(UPS inner temperature).
drawing J
drawing K
drawing L
drawing M
drawing N
drawing O
4.4.4. UPS Default Data and Special
Function Execution
1. After UPS is turned on successfully, use
key pad to change the LCD Display screen
to drawing P1.
drawing P1
To Next Page
