Rittal VX Assembly Instructions

12 Aufsatzmodul/Top mounting module/Module d’extension
Zulässige Gesamtlast
Allowed overall load
Charge totale admissible
F (N)
6800 N 90°
3200 N 60°
2400 N 45°
3. Montage
3. Assembly
3. Montage

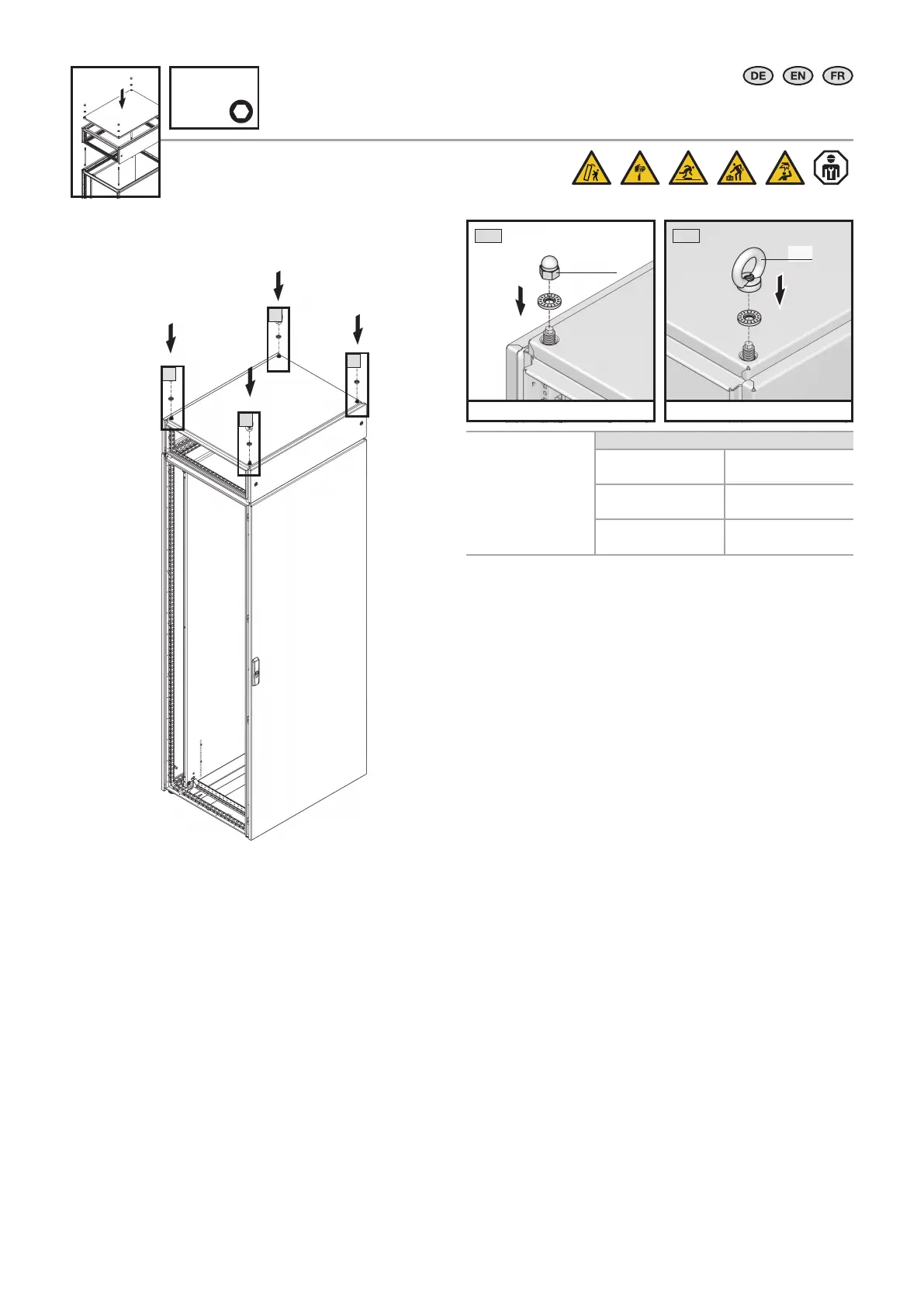

3.3.2 Montage Aufsatzmodul – Alternative
3.3.2 Assembly of the top mounting module – Alternative
3.3.2 Montage du module d’extension – autre possibilité
1 2
M
A
= 20 – 35 Nm M
A
= 20 – 35 Nm
M12
M12
1
2
2
1
SW18
