Rittal VX25 Blue e+ - 12 Drawings; Mounting Cut-Out Representation; Dimensions

12 Drawings
EN
44 Rittal roof-mounted Blue e+ cooling unit/VX25 Blue e+ integration solution
12 Drawings

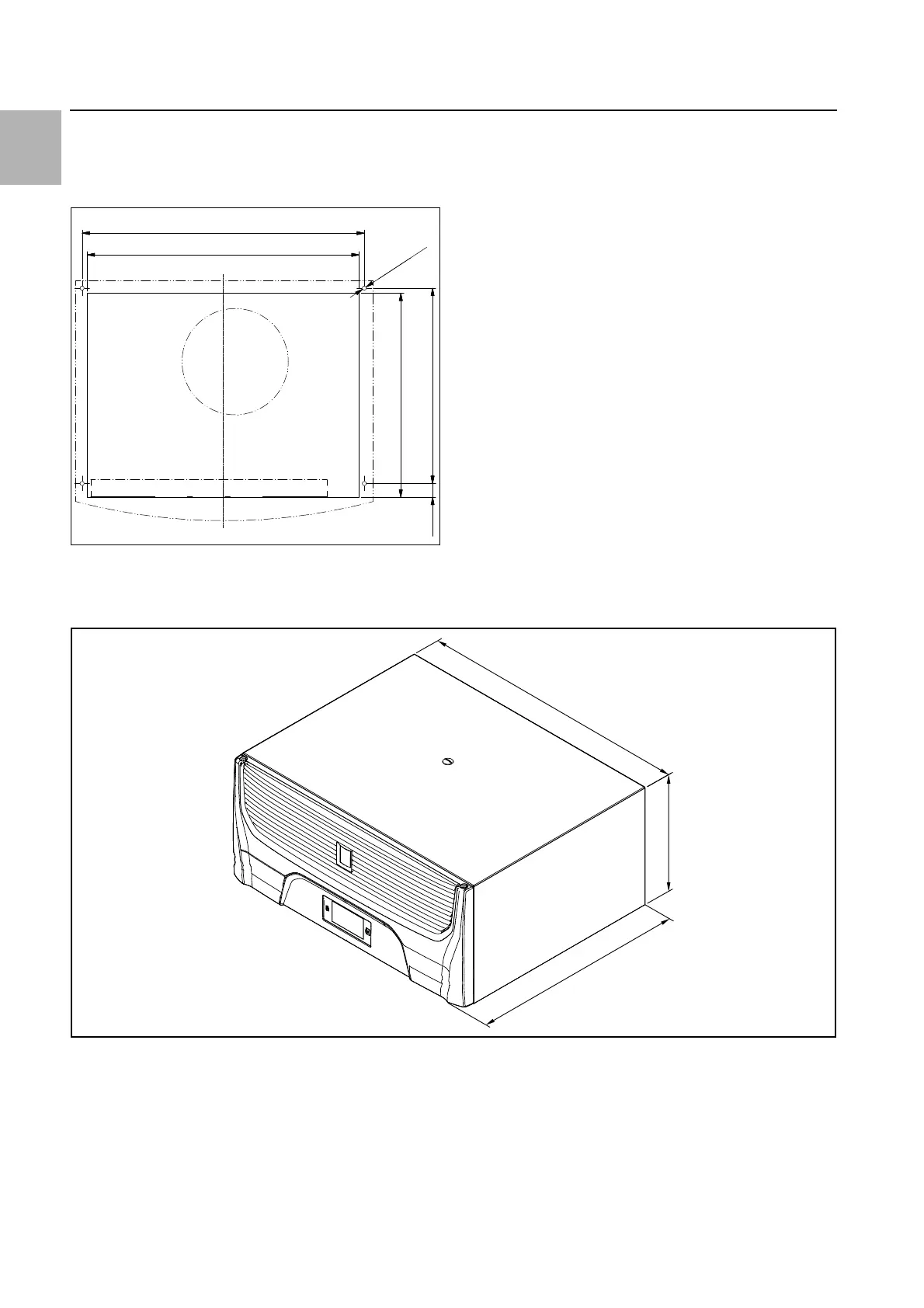

12.1 Mounting cut-out representation
SK 3185730
Fig. 29: Mounting cut-out
12.2 Dimensions
SK 3185730
Fig. 30: Dimensions SK3185730
664
640
Ø 10 (4x)
480
459,6
32,5
700
308
560
