Part #: F10020
For Smaller Volume Infusions:
The FREEDOM60® is designed to accommodate 60ml syringes. For smaller volumes,

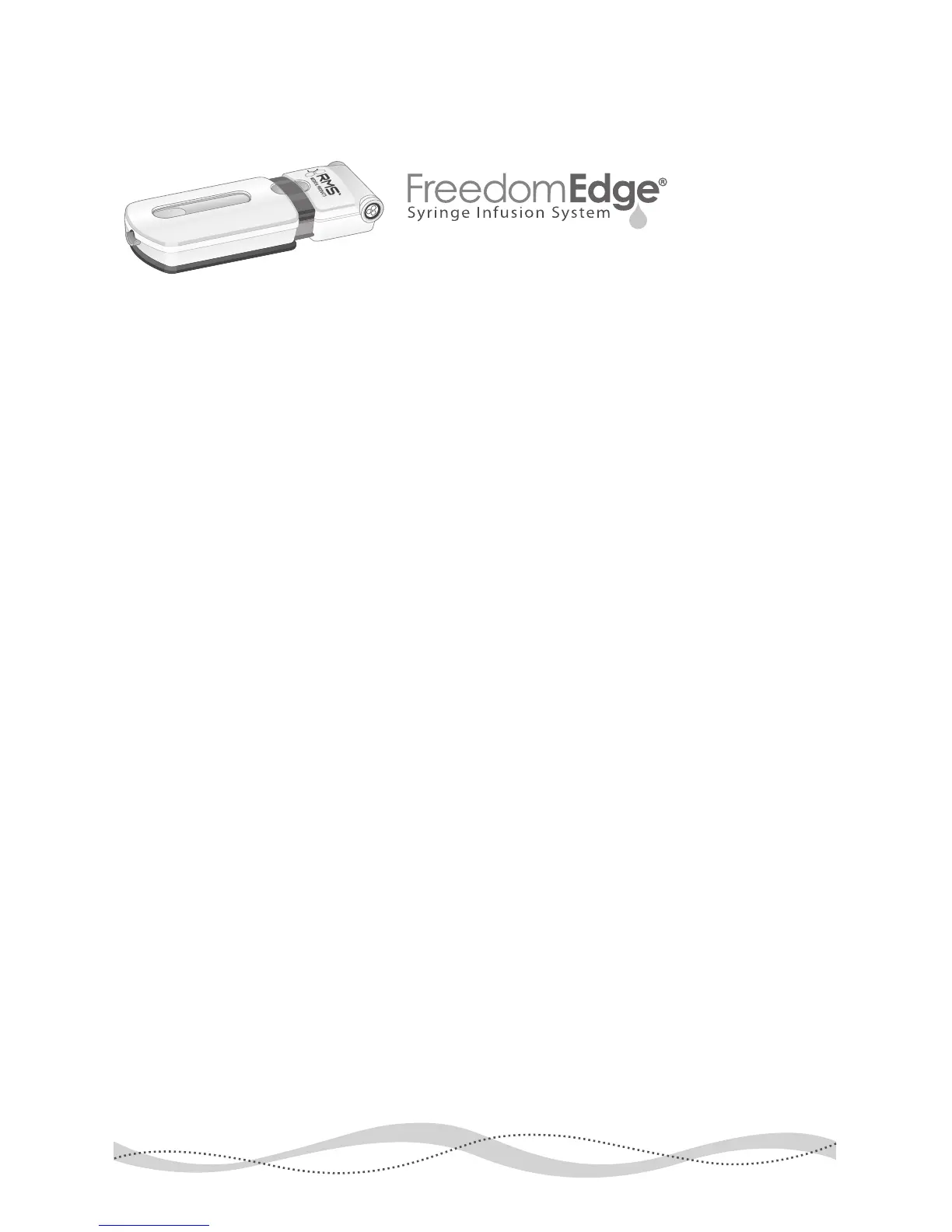

the FreedomEdge® accommodates both 20ml and 30ml syringes.
Syringes for use with the FREEDOM60®:
• Becton Dickinson & Co. BD® Luer-Lok® 60ml (US Reference #309653;
EU Reference #300865)
Testing the FREEDOM60® Syringe Driver:
1. Examine the inside of the syringe shield and ensure it is free of debris or
contamination.
2. Make sure that the syringe driver’s on/o switch is in the OFF position and
that the black tab within the syringe shield is at the end of its track. If the
black tab is not at the end of its track, fully wind the large knob clockwise.
3. Turn the syringe driver ON (–) and watch that the tab moves smoothly
along the full length of its track; listen for the following sounds:
• a ‘click’ as the driver is turned ON (–)
• a ‘whirring’ sound as the black tab moves forward
• a ‘click’ as the tab reaches the end of its travel
4. Test to make sure the syringe tension tab (the one-inch long tab located at
the entry of the syringe shield) operates freely by adjusting it up and down
with your nger.
