RMS FREEDOM60 - Syringe Loading and Removal Instructions; Selected Flow Rates vs Time

English 6 of 20

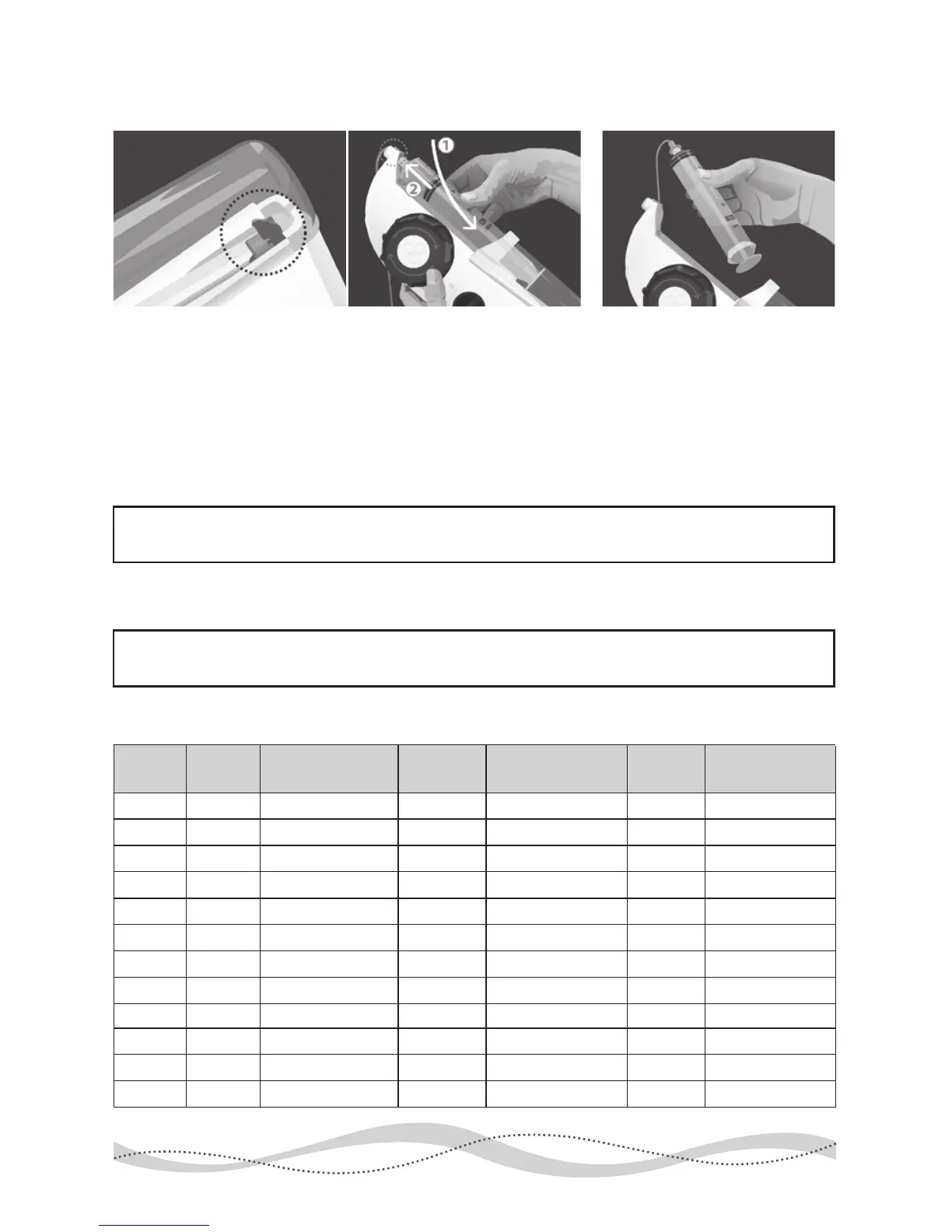

Syringe Loading and Removal Instructions:
To load a syringe: To remove a syringe:
Make sure that the syringe
driver’s ON/OFF switch is in
the OFF position and that the
black tab within the syringe
shield is at the end of its track.
If the black tab is not at the
end of its track, wind the
large knob clockwise.
With the tubing attached and
gradations facing up, load the
pre-lled syringe, plunger rst,
into the syringe shield. Make
sure the tubing luer disc is fully
seated in the driver’s nose.
After the infusion is complete,
turn the syringe driver OFF
and wind the large knob
clockwise until the black tab is
at the end of its track. Remove
the empty syringe by gently
pushing it back to disengage
the nose, then lifting it up out
of the syringe driver.
Note: You will never need to use force to load or remove a syringe. If you’re having trouble
loading or removing, stop and make sure the black tab is at the end of its track.
Note: For assistance in determining which ow rate tubing set to use, please contact
RMS Medical Products at 800-624-9600.
Selected Flow Rates vs Time:
1ml/hr 2ml/hr 30ml/hr 45ml/hr 60ml/hr 120ml/hr
5
5 hrs.
2 hrs. 30 min.
10 min.
6 min. 42 sec.
5 min.
2 min. 30 sec.
10
10 hrs.
5 hrs.
20 min.
13 min. 18 sec.
10 min.
5 min.
15
15 hrs.
7 hrs. 30 min.
30 min.
20 min.
15 min.
7 min. 30 sec.
20
20 hrs.
10 hrs.
40 min.
26 min. 42 sec.
20 min.
10 min.
25
25 hrs.
12 hrs. 30 min.
50 min.
33 min. 18 sec.
25 min.
12 min. 30 sec.
30
30 hrs.
15 hrs.
60 min.
40 min.
30 min.
15 min.
35
35 hrs.
17 hrs. 30 min.
70 min.
46 min. 42 sec.
35 min.
17 min. 30 sec.
40
40 hrs.
20 hrs.
80 min.
53 min. 18 sec.
40 min.
20 min.
45
45 hrs.
22 hrs. 30 min.
90 min.
60 min.
45 min.
22 min. 30 sec.
50
50 hrs.
25 hrs.
100 min.
66 min. 42 sec.
50 min.
25 min.
55
55 hrs.
27 hrs. 30 min.
110 min.
73 min. 18 sec.
55 min.
27 min. 30 sec.
60
60 hrs.
30 hrs.
120 min.
80 min.
60 min.
30 min.
Syringe
Volume
Flow Rate vs Time Chart
