Figure 5
Guardian. Solvents will damage the Guardian logo.
CAUTION
Keep the Guardian away from direct heat sources,
such as exhaust systems or furnace vents — the plastic
will melt.
CAUTION
Do not drive the towed vehicle with the Guardian
in place. The engine will overheat, which can cause
severe damage to the engine.
continued from preceding page
CAUTION
Do not move the tow bar quick-disconnects in order
to adjust the Guardian mounting brackets. The tow
bar quick-disconnects must be centered on the tow
bar mounting brackets. If they are attached too far to
the left or the right, the tow bar will not be centered
on the towed vehicle, which will cause excessive tire
wear and/or other consequential, non-warranty damage.
Be certain that the tow bar brackets and quick-
disconnects have been reassembled, according to
the installation instructions, before towing. Incorrect
assembly will cause the towing system to fail — the
towed vehicle will separate from the motorhome.
7. Now, torque the four replacement bolts to 75 ft./lbs.
This completes the installation of the Guardian mount-
ing hardware.
To connect the
Guardian for towing…
1. Connect the crossbar between the towed vehicle and
the motorhome, according to the instructions in the owner’s
manual.
2. Fit the two posts at the bottom of the Guardian center
panel into the two mounting brackets (Figure 4). Make
certain that the posts are completely inserted into the
brackets. Attach linch pins (inset, Figure 4) to the bottom
of both posts, to secure the posts to the brackets.
Tighten the thumb screws (inset, Figure 4).

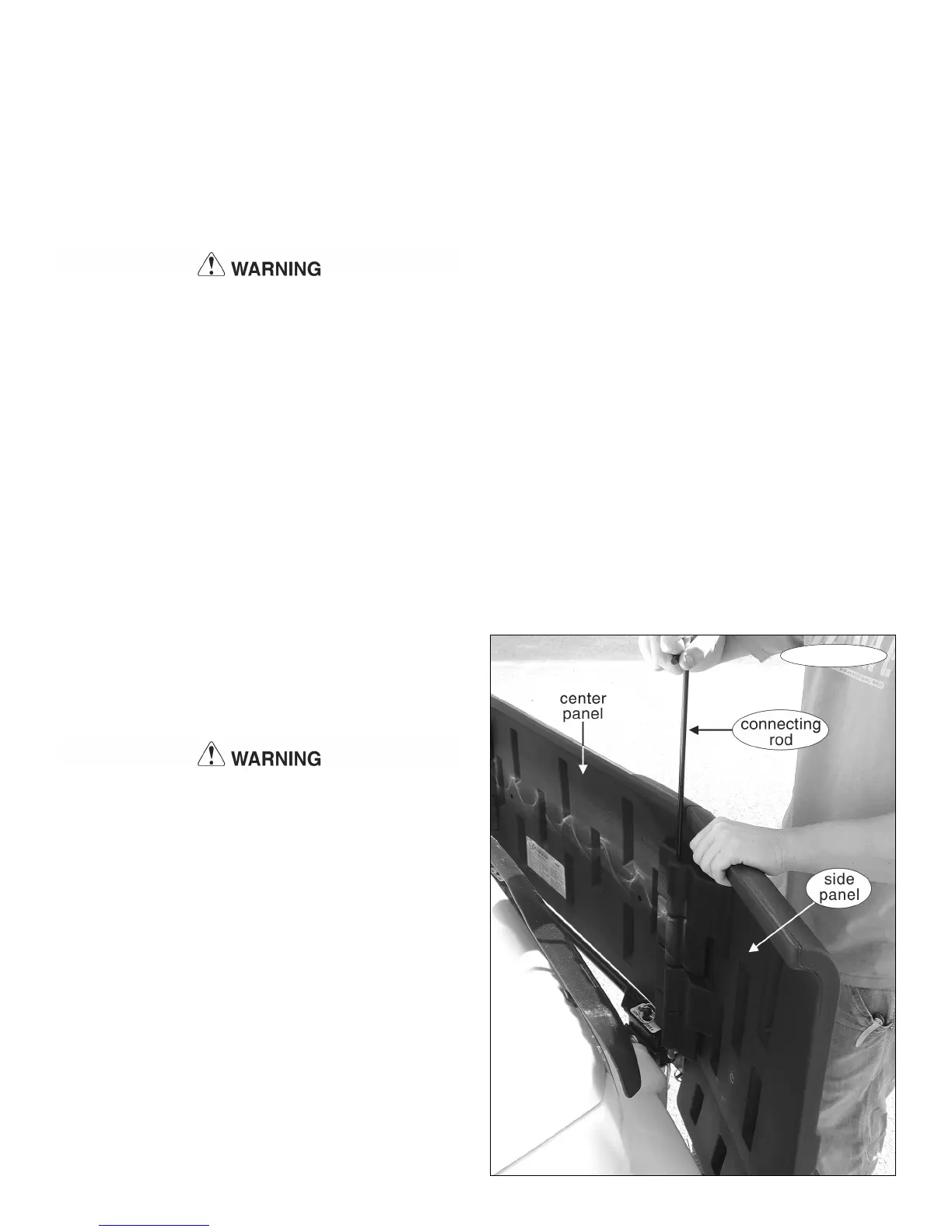

3. Align both of the side panel tabs to the center panel,
and install the connecting rods (Figure 5). Check the thumb
screws to confirm they are still tight.
If the thumb screws are not tightened, the Guard-
ian may vibrate loose during towing, which can cause
property damage, personal injury or even death.
4. To disconnect the Guardian, reverse steps 1 through
3.
To store the Guardian…
Remove the side panels, rotate them 180 de-
grees, and reattach them behind the center panel.
Note: The optional Stowaway (part number 4000-10) or
the Stowaway with rear RV access (part number 4000-40)
will store the Guardian on the back of the motorhome.
Cleaning the Guardian
1. Wipe the entire surface with a silicone protectant. Apply
the protectant when the temperature is between 60 and
100 degrees Fahrenheit.
2. To remove bugs or road dirt, clean with Voom
™
RV
(part number 9911, 32 ounce spray) and a light scrub.
Rinse with water, then apply a silicone protectant.
3. Wire brushes, acids, flame or heat will damage the
