Daily living
Doc No: 21906503 Rev: 05 Copyright © Roadtrek Motorhomes Inc. 2007 B - 10

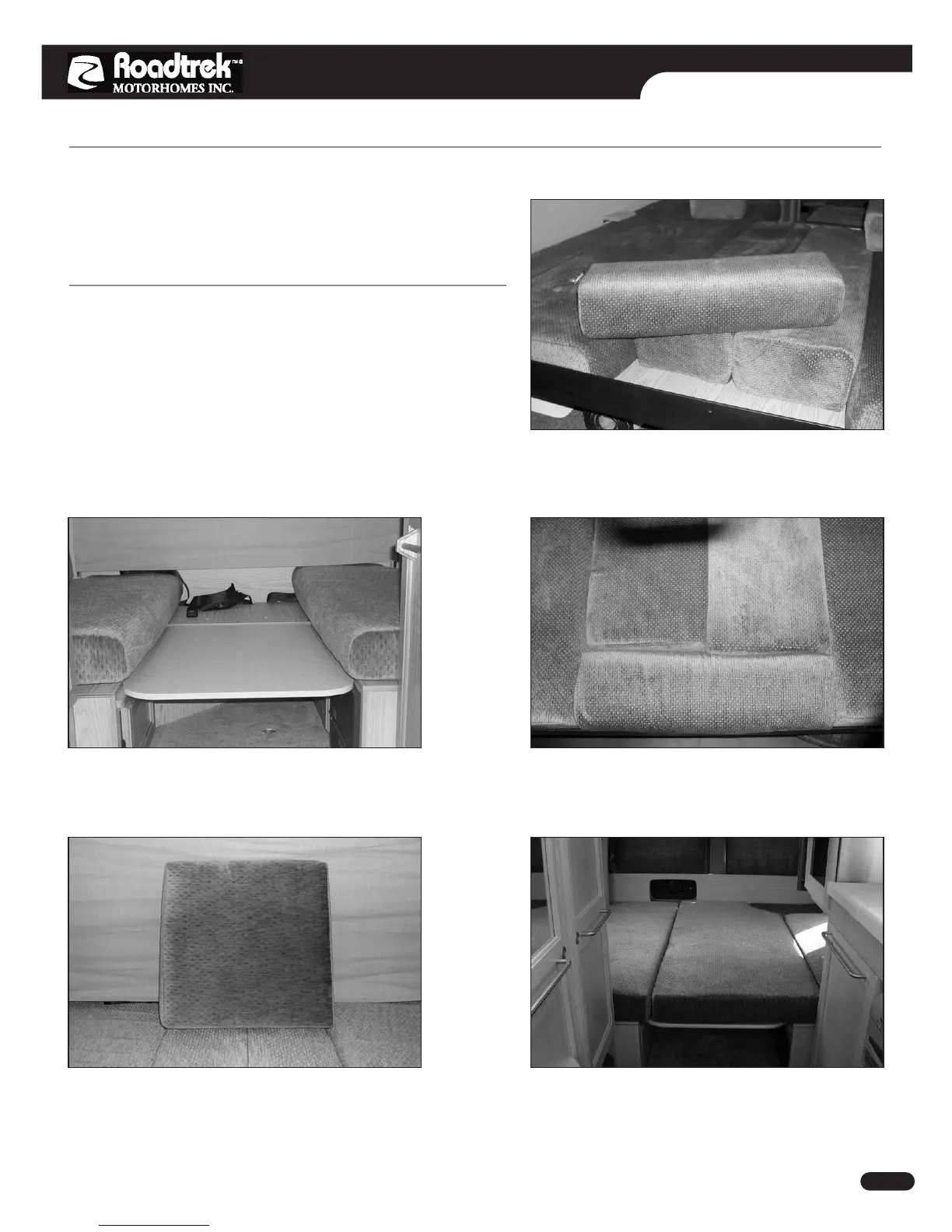

REAR KING BED
If desired, place the small cushion insert at the rear of the
bed to create additional bed length, (see Picture B-P12 and
Picture B-P14). (See bed layout drawing on page B-5)
REAR L-SHAPED LOUNGE TO DOUBLE BED,
(190-Versatile & 170-Popular Models):
1. Remove the table and leg from their base and place the
table on the lateral support located on the upper edge
to seat base boxes, (see Picture B-P13).
2. Remove center dinette cushion, (see Picture B-P15).
Center dinette cushion is extra.
3. Unfold back rest cushions and place on top of table,
(see Picture B-P16).
Note: The shorter passenger side seat rest cushion goes
on the bottom, rear back rest cushion on top.
Picture B-P15: Centre dinette cushion, (Versatile
model).
Picture B-P13: Placement of dinette table used as the
center support for the double bed, (Versatile model).
Picture B-P16: Placement of back rest cushions,
(Versatile model).
Picture B-P12: Small cushion insert - before
insertion, (190-Popular model).
Picture B-P14: Small cushion insert in place creates
more sleeping surface, (190-Popular model).
