Daily living
Doc No: 21906503 Rev: 05 Copyright © Roadtrek Motorhomes Inc. 2007 B - 2
CLOVERLEAF/FOLDING DINING TABLE:
The folding dining table is stored in its own compartment in
the Popular model and the cloverleaf table is stored in the
rear closet in the Versatile, (see Picture B-P3 for Popular
models and Picture B-P4 for Versatile models). For the
Popular, open the compartment door, pull out the folding
table and pivot it up to the horizontal position. Pull out the
additional support bar located on the front wall of the
wardrobe behind the driver seat, and extend the folding leaf.
In the Versatile, remove the table leg and place it in the floor
base receptacle located in front of the wardrobe. Place table
top on top of table leg (remember to bend your knees to
lift).
To use the “leaves”:
1. Pivot the table into the desired position.
2. In a seated position, with one hand on the top of
the table, use the other hand to unfold the desired
leaf to the upright position.
To return the “leaf” to its original position, follow these steps:
1. Hold the leaf with one hand.
2. With the other hand reach under the table and
carefully press on the center of the downward
facing part of the spring hinge.
3. Fold the leaf back into the stored position.
Caution: Cloverleaf dining table is heavy, bend your
knees while lifting.

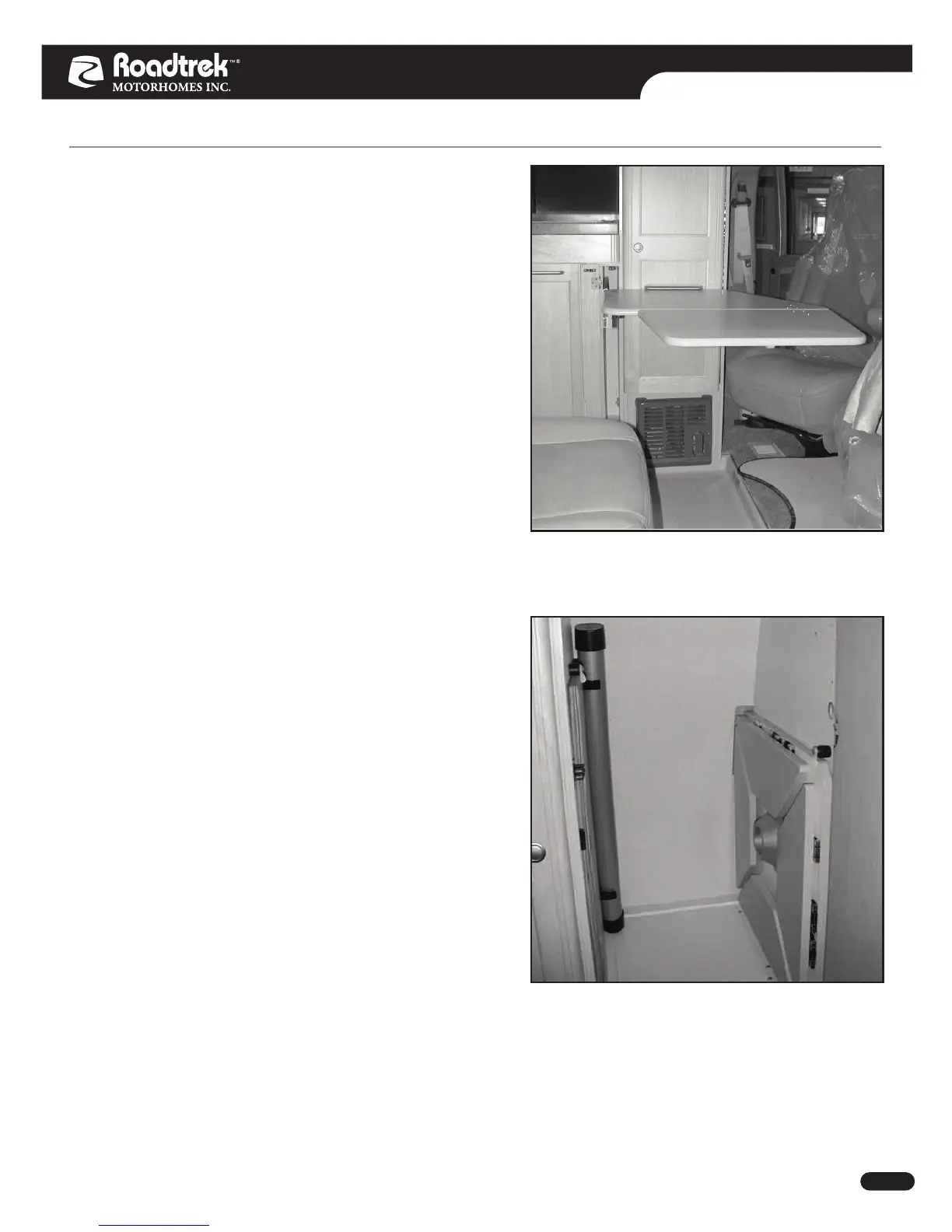

Picture B-P3: Wardrobe closet showing location of
the table (Popular models).
Picture B-P4: Storage location of cloverleaf table
and bed support (Versatile models).
