DRIVER SIDE ACCESS DOORS, (170 Model):
Behind the lockable front access door, (see Picture B-P42),
the following are found:
1. Sewage hose storage location.
2. Grey water gate valve handle.
3. Black water gate valve handle.
4. The power cord.
5. Storage for exterior shower hose.
6. Large storage area.
Behind and below the drivers side entrance step, (see picture
B-P43),
the following are found:
1. Fresh water drain valve.
2. Macerator manual crank handle.
Behind the lockable rear access door, (see Picture B-P44),
the following are found:
1. The city water connection, (integrated on the left
hand the side behind the rear access door).
2. The city water by-pass valve.
3. The exterior shower faucet.
4. The cable TV connection.
Daily living
Doc No: 21906503 Rev: 04 Copyright © Roadtrek Motorhomes Inc. 2007 B - 18

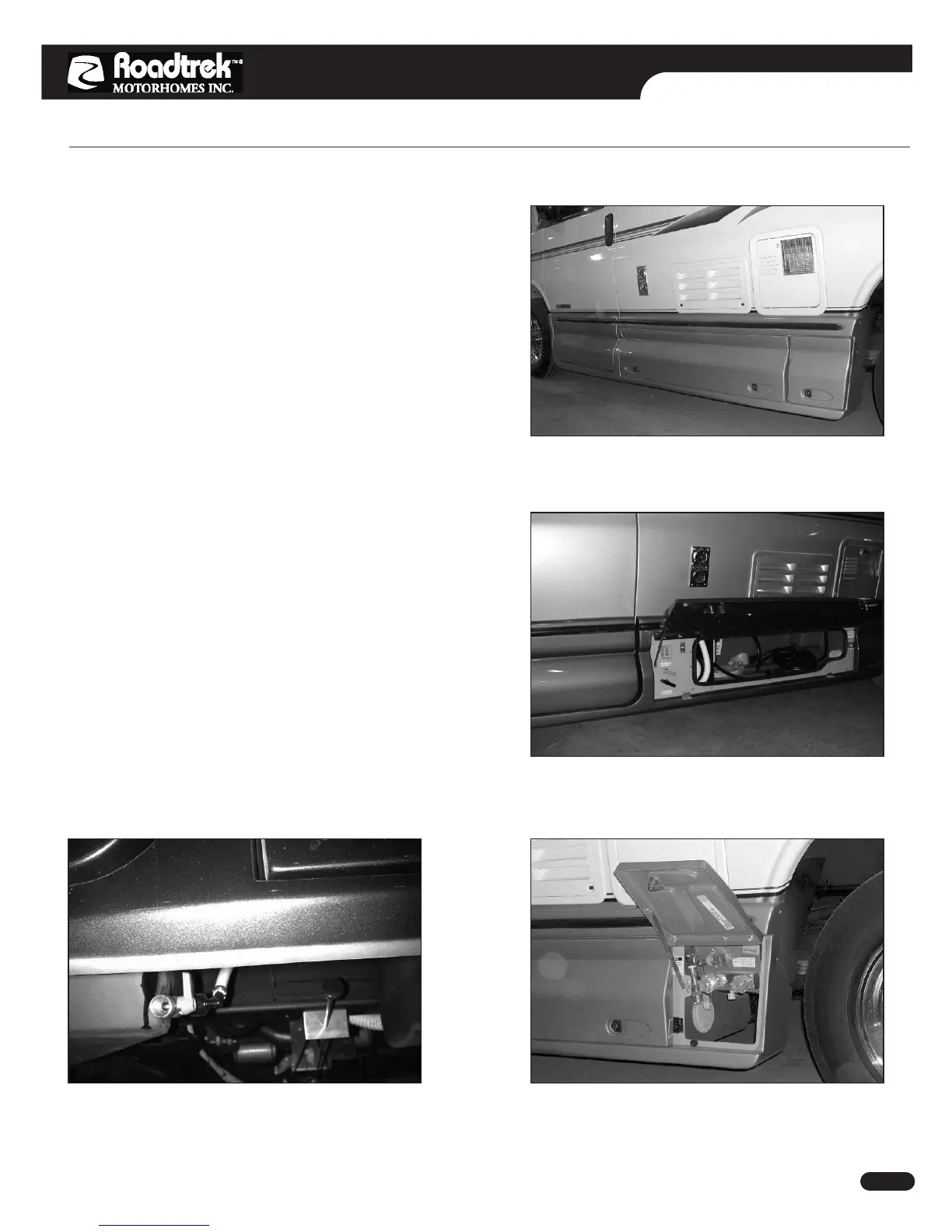

Picture B-P42: Front access door, (170 model).
Picture B-P44: Rear access door, (170 model).
Picture B-P41: Driver side access doors, (170 model).
Picture B-P43: Exterior fresh water drain valve and
macerator manual crank handle, 190 model shown.
