Daily living
Doc No: 21906503 Rev: 05 Copyright © Roadtrek Motorhomes Inc. 2007 B - 21

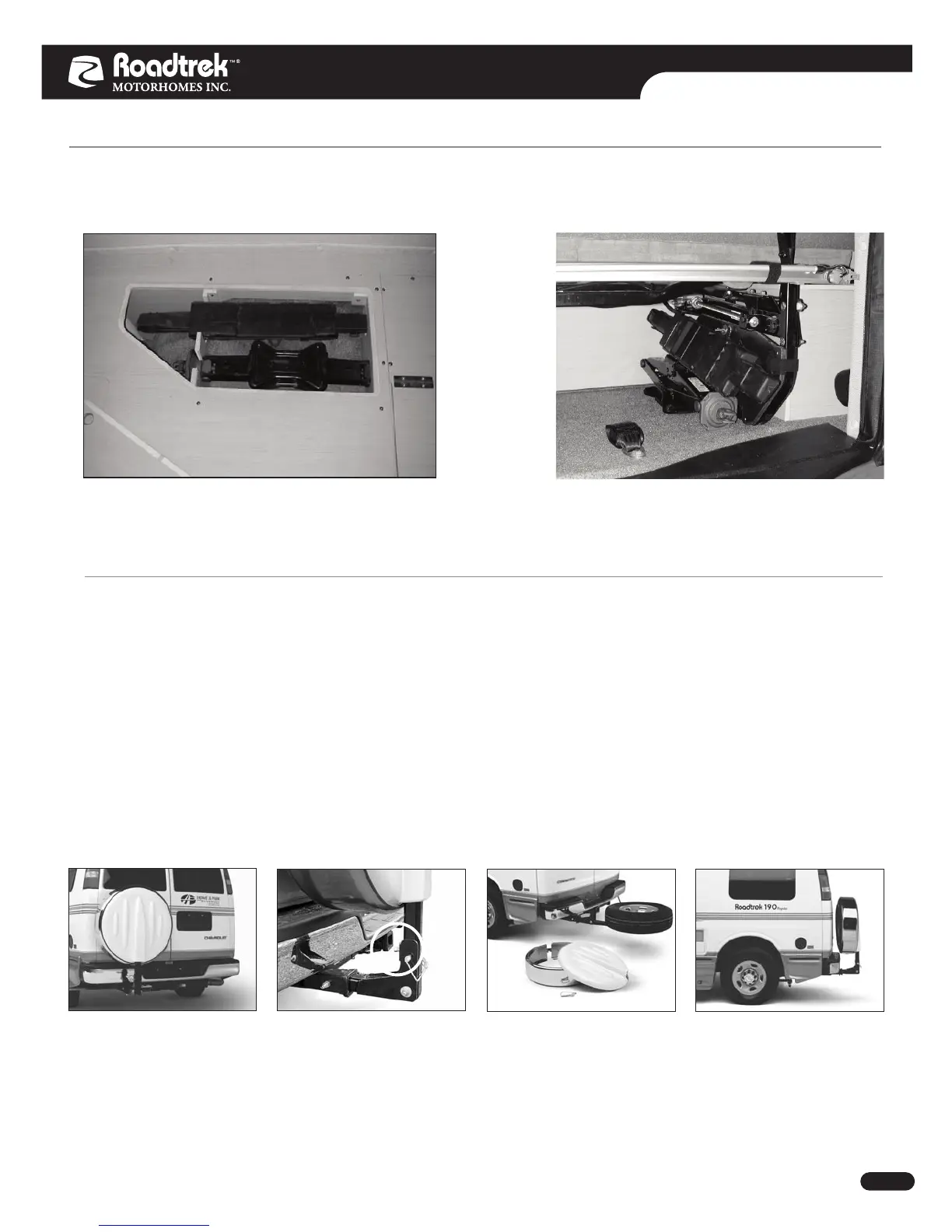

SPARE TIRE STORAGE:
The spare tire is located in the storage area found under the passenger side rear bed in the units with dinette
seating or on the Continental style tire carrier for units with the power sofa option. Brace yourself for the weight of
the tire, (37 kg / 80 lbs).
Picture B-P53: Location of jack in newer units with
Dinette seating.
Picture B-P57:
Tire storage.
Picture B-P55A:
Anti vibration bolt.
Picture B-P55:
Spare tire kit.
CONTINENTAL SPARE TIRE KIT (optional):
To access the full-size spare tire:
1. Remove the lockable chrome ring and fiberglass disc.
2. Loosen the anti vibration bolt, (see picture B-P55A)
3. While holding the spare tire, in the upright position, remove catch pin on the elbow of the receiver.
4. Slowly lower the spare tire to the flat position, (see Picture B-P56). Brace yourself for the weight of
the tire, (37 kg / 80 lbs).
5. Remove lug nuts on spare tire to remove from carrier.
To store tire, repeat these steps in reverse.
Picture B-P56:
Remove from carrier.
Picture B-P54: Location of jack in newer units
with power sofa
.
