TOOL NEEDED
A. T-handle wrench
B. wrench
C. screwdriver
J
CONVERSION TO LP/PROPANE GAS
Every cooktop is provided with a set of injectors for the various types of gas.
Select the injectors to be replaced according to the table below. The nozzle diameters, expressed in hundredths
of a millimeter, are marked on the body of each injector.

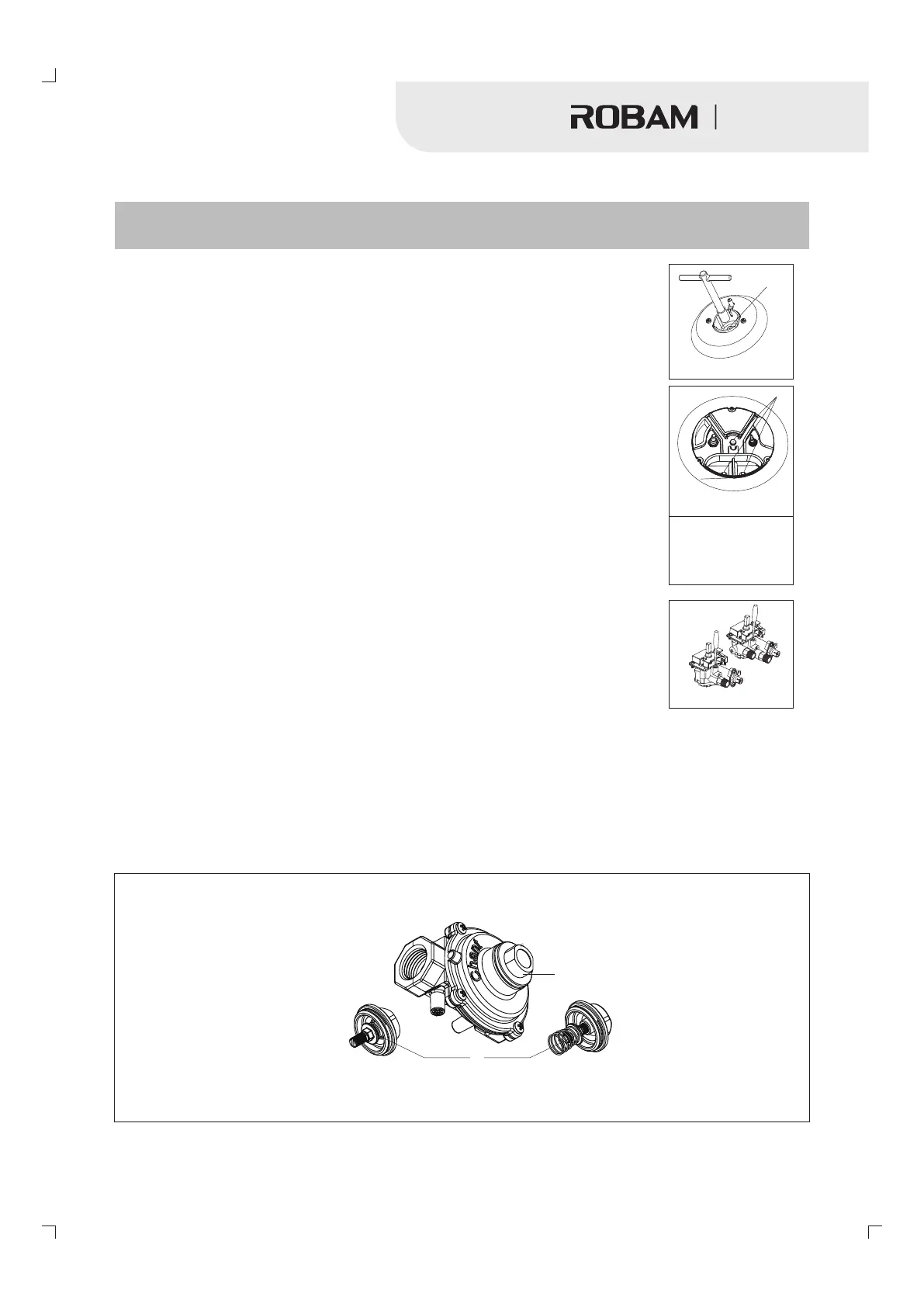

SETTING THE PRESSURE REGULATOR (Picture 7)
Attention: The regulator is pre-adjusted for both valves. Aside from the turning of the plug(1), there is no
further adjustment necessary.
Pressure regulator series RV...C
Natural/town gas adjustment
(low outlet pressure)
Pressure regulator series RV...C
LPG adjustment
(high outlet pressure)
1
Unscrew the cover
for conversion
Picture 5
Picture 6
Picture 7
J
Picture 4
14
Warning: Gas type and/or Injector conversion must be done by authorised
personnel.
◆
◆
◆ “ ”
Remove pot rack, the burner covers and the knobs;
Use a Phillips screwdriver to remove the drain pan and remove the panel;
Using a wrench substitute the nozzle injectors J ( Picture 4-5)The burner are
conceived in such a way so as not to require the regulation of the primary air.
REGULATING THE BURNER
MINIMUM SETTING
When switching from one type of gas to another. The minimum
Flow rate needs also be correct: the flame should not go out even
When passing suddenly from maximum to minimum flame.
To regulate the flame follow the instructions below:
◆
◆
Light the burner;
Set the gas valve to minimum:
On gas valves provided with adjustment screw in the center of the shift
(Picture 6).Using a screwdriver with max, diameter 3 mm. turn the screw
inside the tap until the correct setting is obtained.
Manifold pressure should be check ed with a manometer. NATURA L gas
requires 1. 0 kPa . and U. L. P. GAS requi res 2.75 kPa.(see product p.arameter)
The installer adjusts the pressure regulator to the corresponding
pressure according to the gas type and data plate .
Examples of a qualified person include licensed heating personnel ,
authorized gas company personnel, and authorize d service personnel .
Failure to do so can result in death, explosion, or fire .
Gas conversion
Gas Hob
