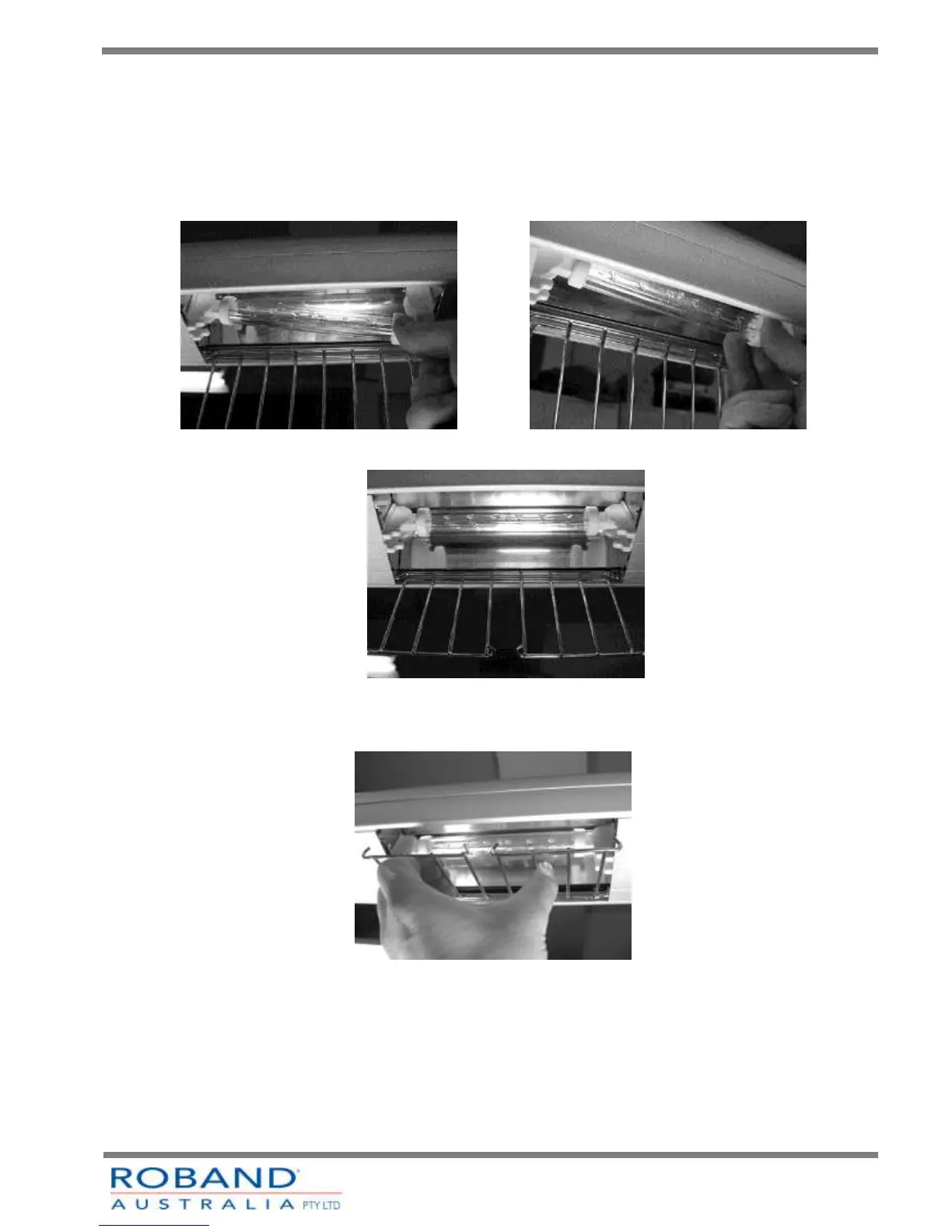

4) Using gentle force, push the lamp so that the sprung terminal pin and lamp
retracts 5mm into the terminal block, then rotate lamp upwards so that alternate
end is inserted into the other terminal block. Taking care to line up Centre Boss
of Lamp with terminal pin in terminal, release spring and allow lamp to seat
between the two terminal blocks. Jiggle lamp slightly to make sure it is secure in
place.
