robatherm AR3 - Circuit Diagram

Page: 17

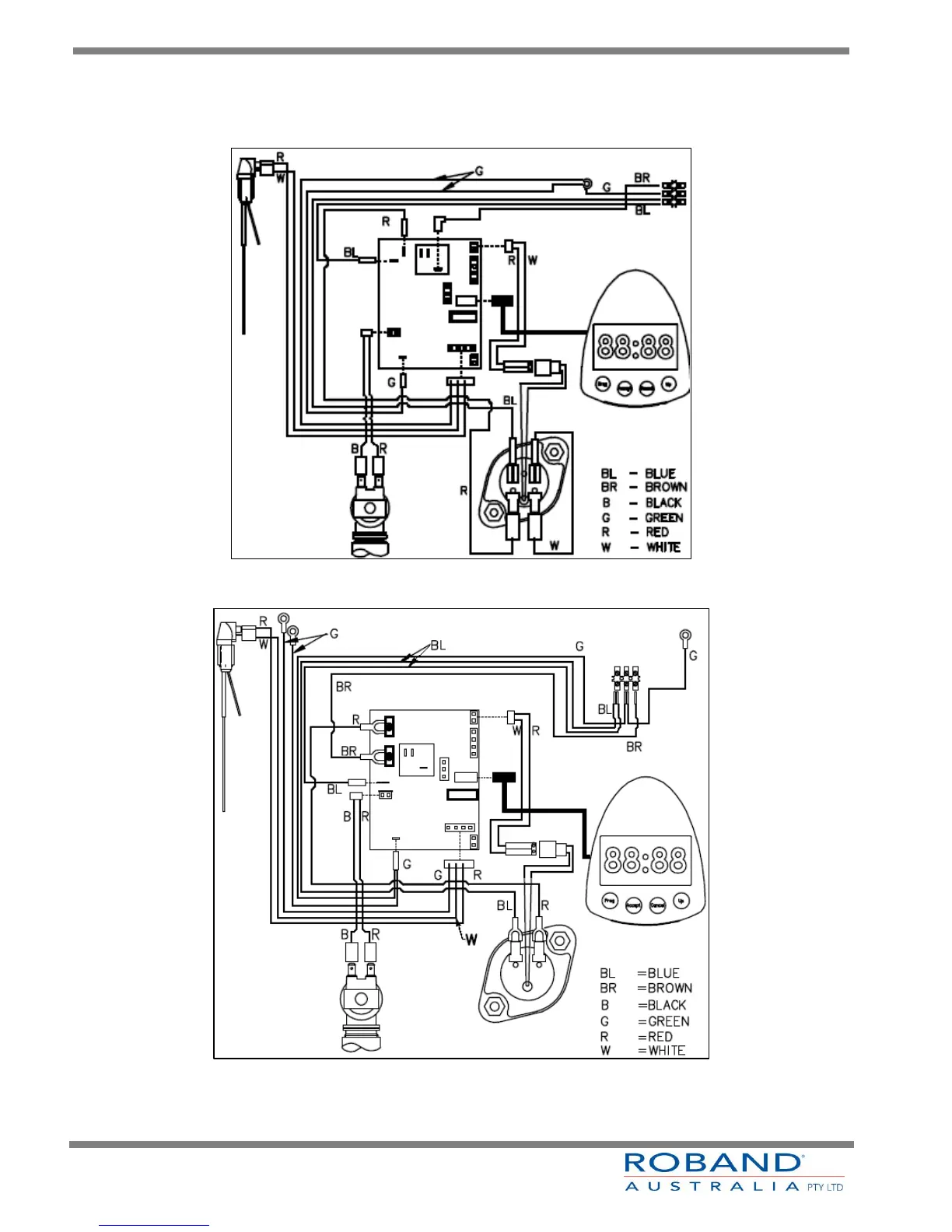

CIRCUIT DIAGRAM
3 – 15L MODELS
25 & 40L MODELS
NOTE: This circuit diagram has been provided for reference and to assist qualified service
and repair agents only. Under no circumstances should person’s not suitably qualified
attempt repairs to any electrical equipment.
