Roberts 10-600 - Replacement Parts List

ROBERTS 10-600
3/16” CROWN ELECTRIC STAPLER

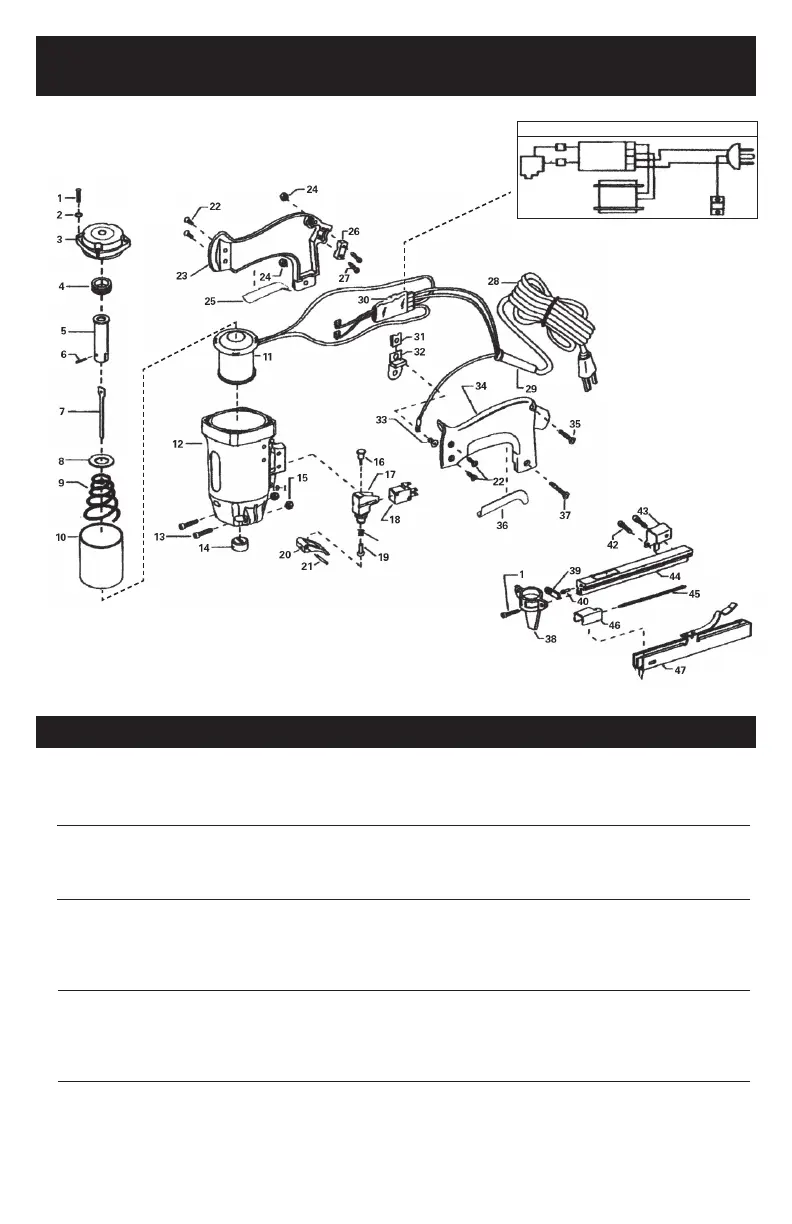

REPLACEMENT PARTS LIST
120 Volt Wiring Diagram
Power
Supply
Coil
White
Green
Ground
Clip
Red
Red
Red
Trigger
Switch
Line
Cord
Plug
Black
Blue
SKU# Description
Contents of Kit
Part # Description
10-600-01 Cap Assembly 1 Hex Bolt (4)
2 Washers (4)
3 Cap Casting
10-600-02 Driver Assembly 4 Retainer
5 Drive Plunger
6 Roll Pin
7 Driver Blade
10-600-03 Solenoid Assembly 8 Retaining Washer
9 Return Spring
10 Sleeve
11
Coil Assembly w/ Lead Wires
10-600-04 Head Assembly 12 Head Casting
13 Bolts (2)
14 Nose Bumper
15 Lock Nuts
