Roberts R737 - Controls Left Hand End

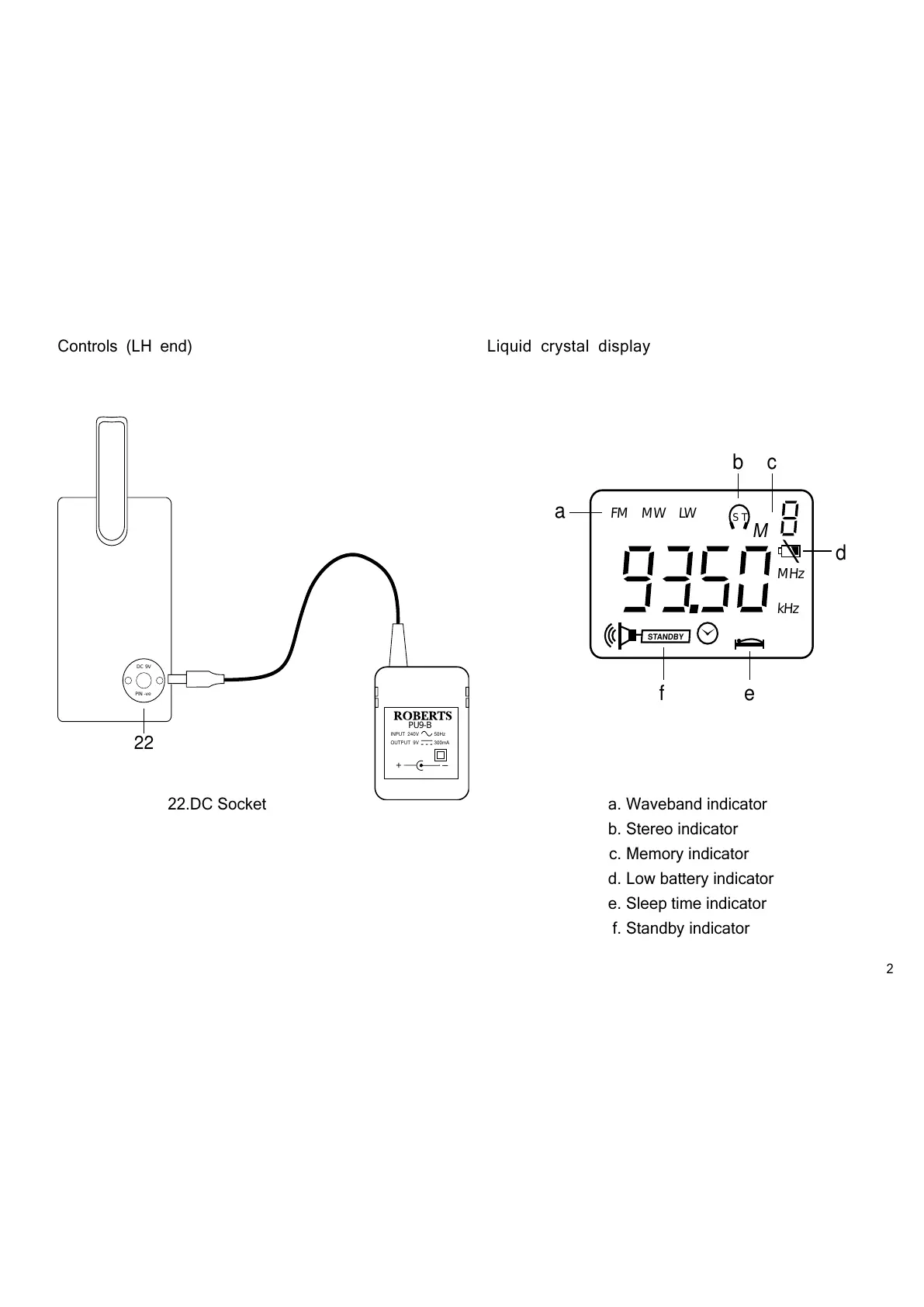

Controls (LH end)
PU9-B
INPUT 240V 50Hz
OUTPUT 9V 300mA
-
+
DC 9V
PIN -ve
22
Liquid crystal display
22.DC Socket
STANDBY
ST
MHz
kHz
FM MW LW
M
a
bc
d
ef
a. Waveband indicator
b. Stereo indicator
c. Memory indicator
d. Low battery indicator
e. Sleep time indicator
f. Standby indicator
2
