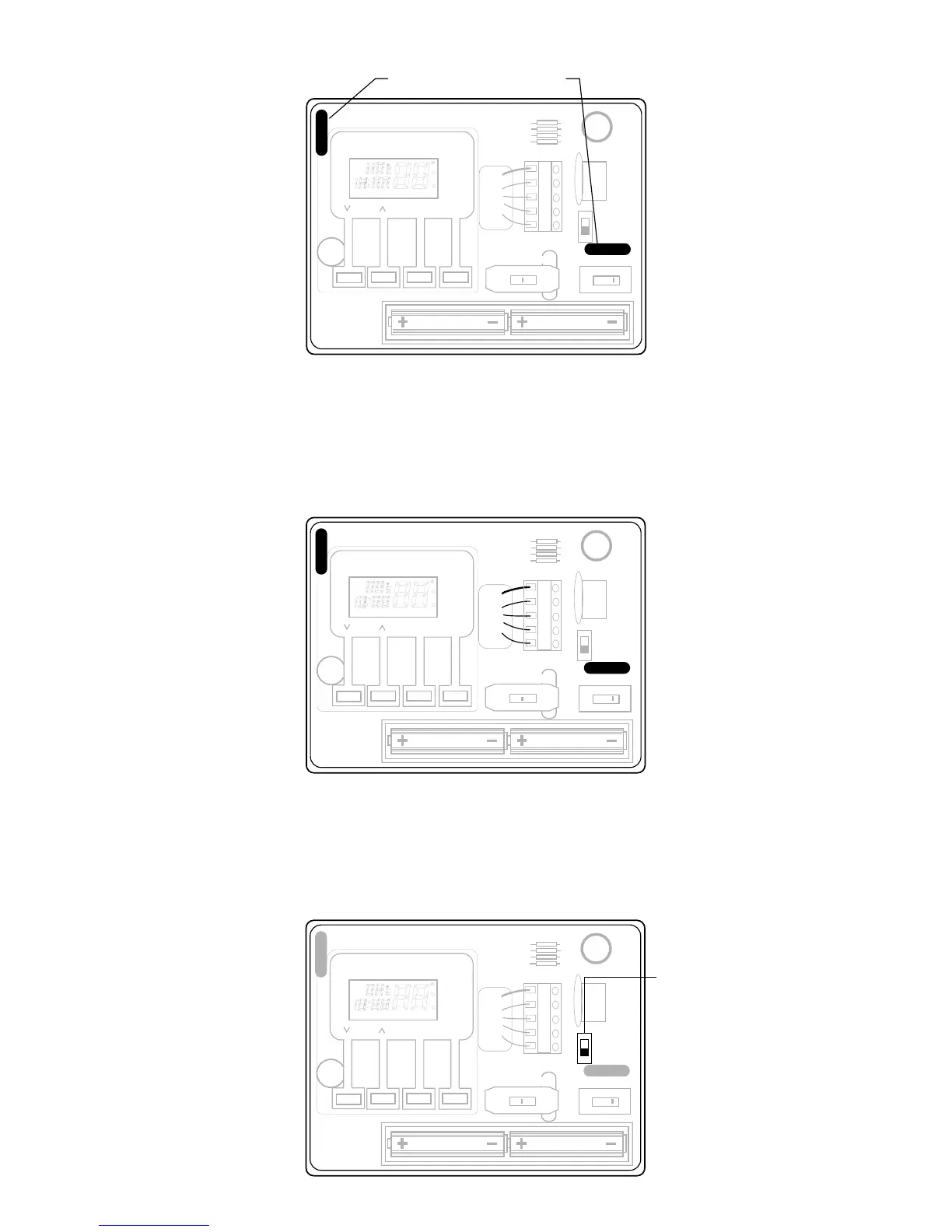

Figure 3
7. Drill the marked holes using a 3/16” drill bit. Note: Enclosed plastic
anchors do not require a drilled hole for drywall.
8. Tap plastic anchors into the wall.
9. Align base with plastic anchors and feed wires through opening (see
Figure 4).
Figure 4
10. Secure base to wall with supplied screws.
11. Connect wires to terminal strip. Refer to wiring diagrams on other
side of this sheet. Make sure wire connections are secure.
12. Place fan option switch into either the ELEC or GAS position depend-
ing on the type of furnace. Refer to Figure 5.
Figure 5
4
