Robin DY23-2D Service Manual

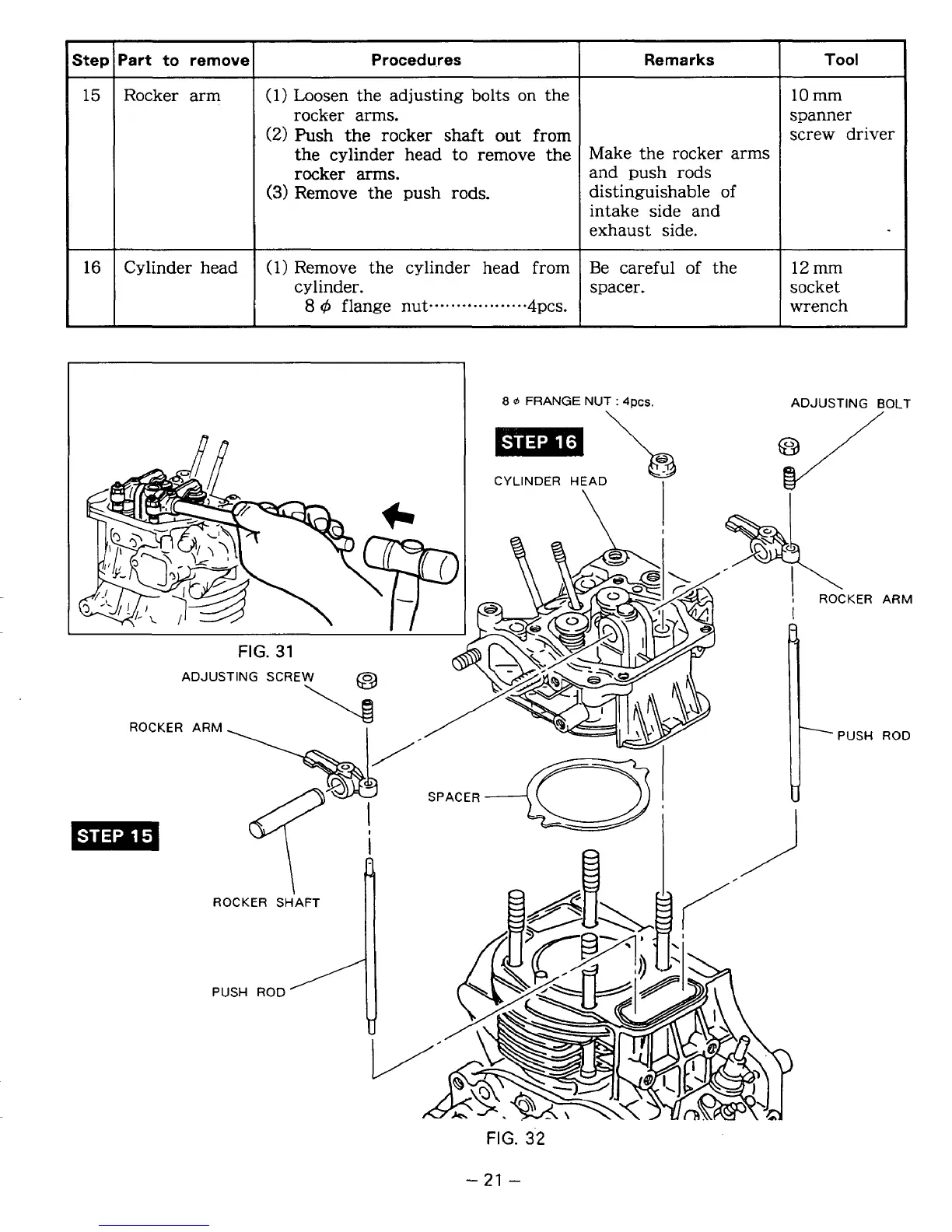

Step Part to remove
15 Rocker arm
Procedu.res
(1) Loosen the adjusting bolts on the
rocker arms.
(2) Push the rocker shaft out from
the cylinder head to remove the
rocker arms.
(3) Remove the push rods.
Remarks
Make the rocker arms
and push rods
distinguishable
of
intake side and
exhaust side.
16 Cylinder head (1) Remove the cylinder head from Be careful of the
cylinder. spacer.
8 4 flange nut ....... ..... . .... 4pcs.
P
ROCKER
8 6 FRANGE NUT : 4DC.s.
CYLINDER HEAD \
I
Tool
10 mm
spanner
screw driver
12 mm
socket
wrench
ADJUSTING BOLT
ARM
ROD
FIG. 32
- 21 -

Robin DY23-2D Specifications

General

Brand	Robin
Model	DY23-2D
Category	Engine
Language	English
