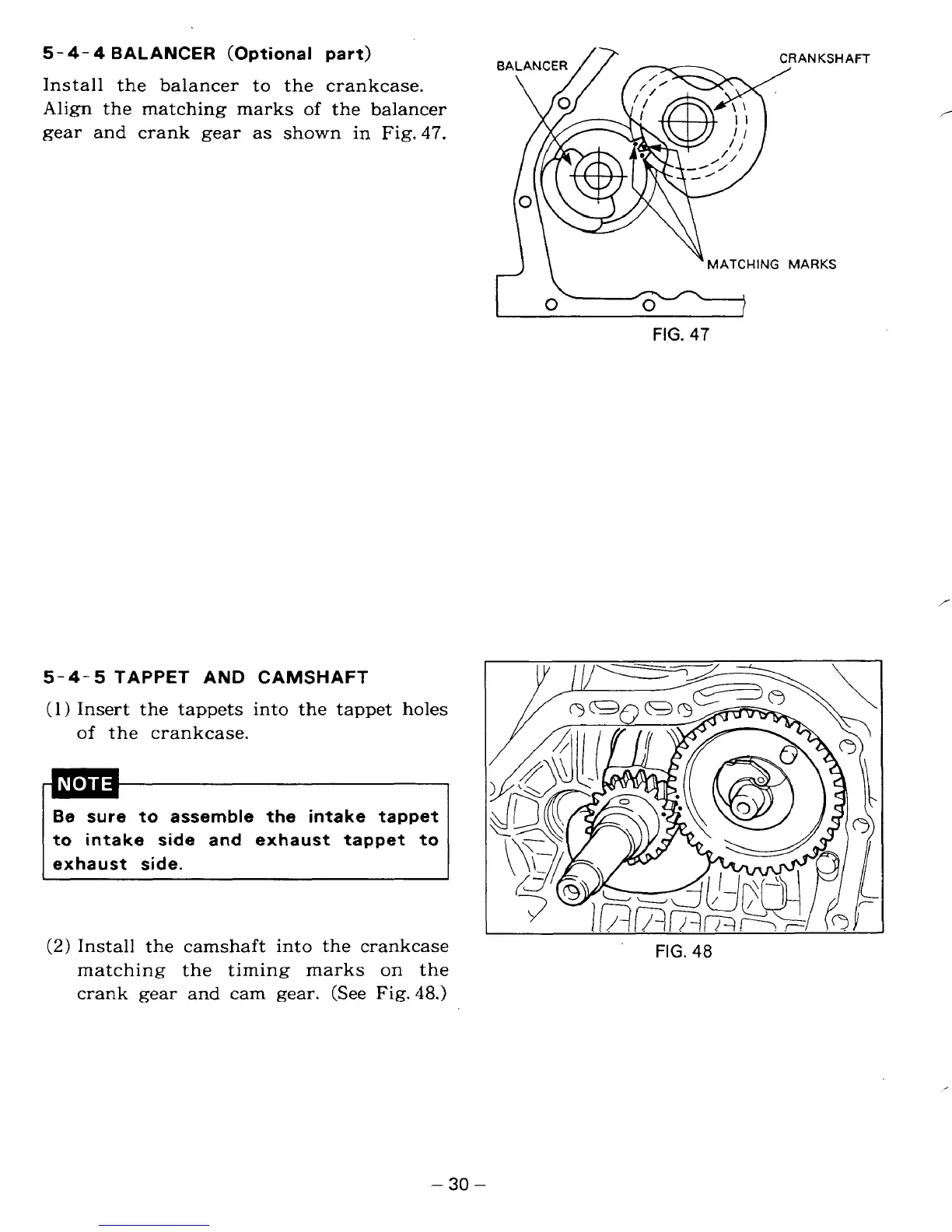

BALANCER (Optional part)
Install the balancer to the crankcase.
Align the matching marks
of
the balancer
gear and crank gear as shown in Fig,
47.
5-4-
5
TAPPET AND CAMSHAFT
(1)
Insert the tappets into the tappet holes
of
the crankcase.
Be sure to assemble the intake tappet
to intake side and exhaust tappet to
exhaust side.
FIG.
47
-I
AFT
(2)
Install the camshaft into the crankcase
matching the timing marks
on
the
crank gear and cam gear. (See Fig.
48.)
FIG.
48
,
-
30
-
