Robin DY23-2D Service Manual

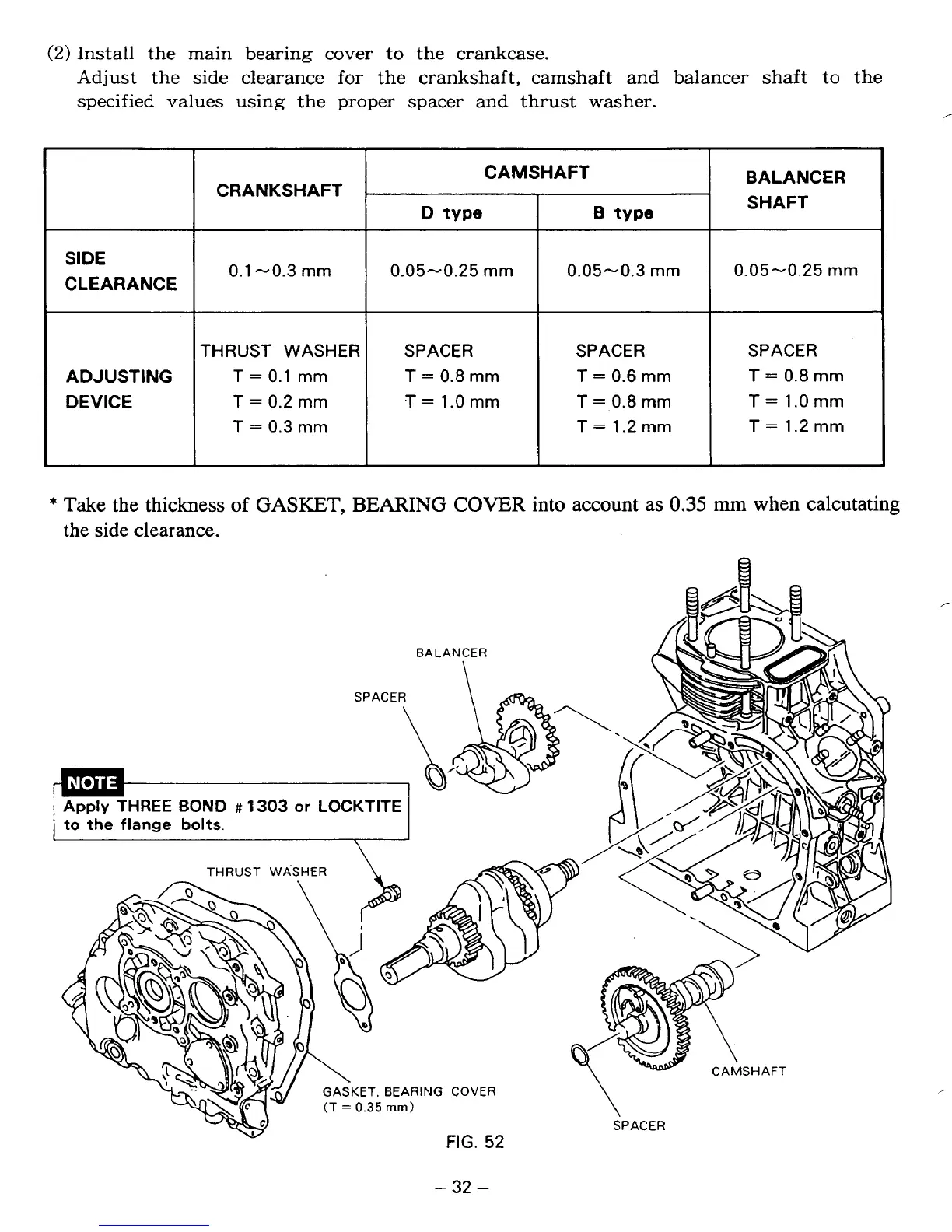

(2) Install the main bearing cover to the crankcase.
Adjust the side clearance for the crankshaft, camshaft
and balancer shaft to the
specified values using the proper spacer and thrust washer.
SIDE
CLEARANCE
ADJUSTING
DEVICE
CAMSHAFT
CRANKSHAFT
.
BALANCER
SHAFT
D type
type
0.1 -0.3 mm I 0.05-0.25 mm I 0.05-0.3 mm I 0.05-0.25 mm I
THRUST WASHER
SPACER
SPACER SPACER
T = 0.1 mm
T = 1.2 mm
T = 1.2 mm T = 0.3 mm
T = 1.0 mm
T =.0.8 mm
T= 1.0 mm T = 0.2 mm
T = 0.8 mm
T = 0.6 mm T = 0.8 mm
A
,
- 32 -
