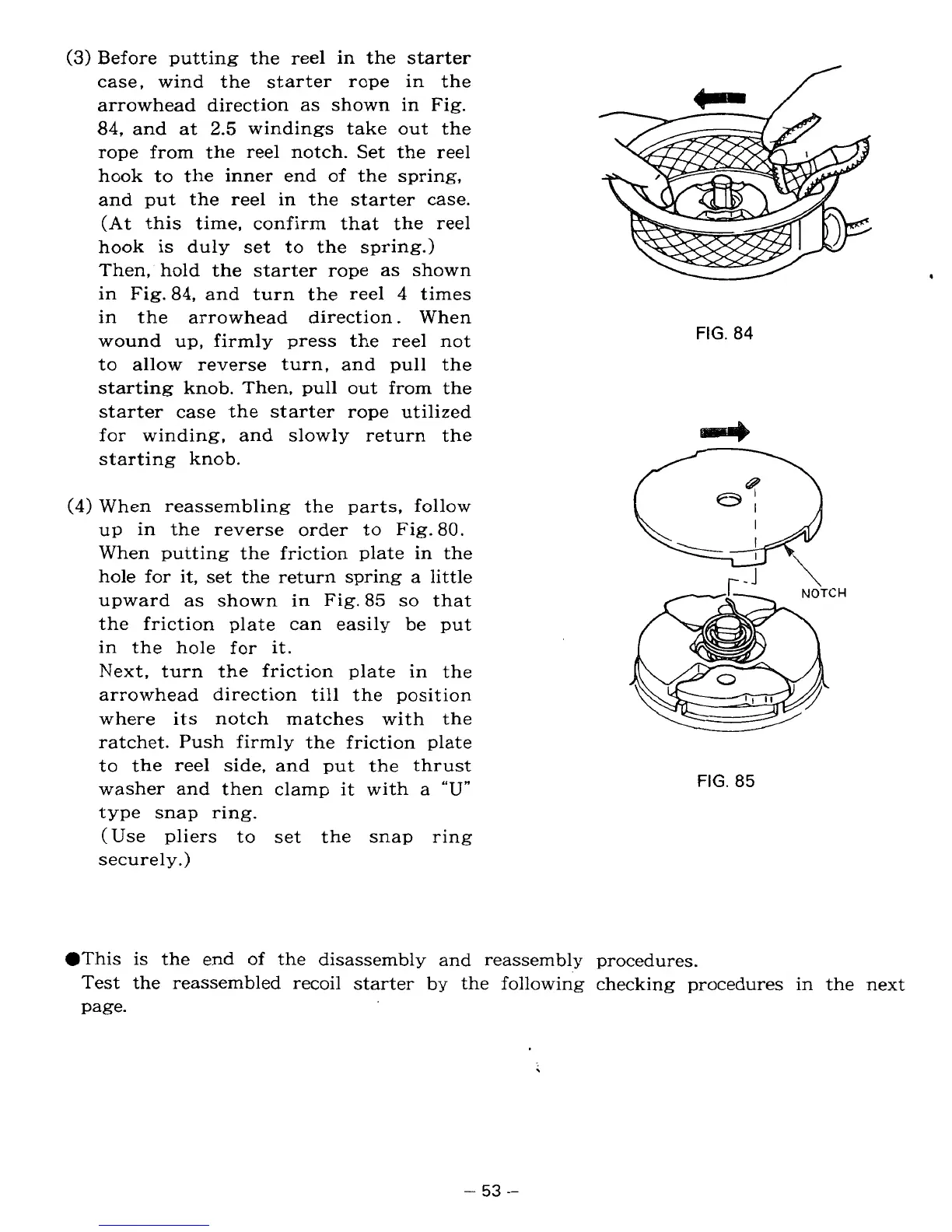

Before putting the reel in the starter
case, wind the starter rope in the
arrowhead direction as shown in Fig.
84,
and at
2.5
windings take out the
rope from the reel notch. Set the reel
hook to the inner end of the spring,
and put the reel in the starter case.
(At
this time, confirm that the reel
hook
is duly set to the spring.)
Then, hold the starter rope as shown
in Fig.
84,
and turn the reel
4
times
in the arrowhead direction. When
wound up, firmly press the reel not
to allow reverse turn, and pull the
starting knob. Then, pull out from the
starter case the starter rope utilized
for winding, and slowly return the
starting knob.
When reassembling the parts, follow
up in the reverse order to Fig.
80.
When putting the friction plate in the
hole for it, set the return spring a little
upward as shown in Fig.
85
so
that
the friction plate can easily be put
in the hole for it.
Next, turn the friction plate in the
arrowhead direction till the position
where its notch matches with the
ratchet. Push firmly the friction plate
to
the reel side, and put the thrust
washer and then clamp it with a
“U”
type snap ring.
(Use pliers to set the snap ring
securely.)
*
FIG.
84
CH
FIG.
85
.This is the end
of
the disassembly and reassembly procedures.
Test the reassembled recoil starter by the following checking procedures in the next
page.
-
53
-
