Robin DY23-2D Service Manual

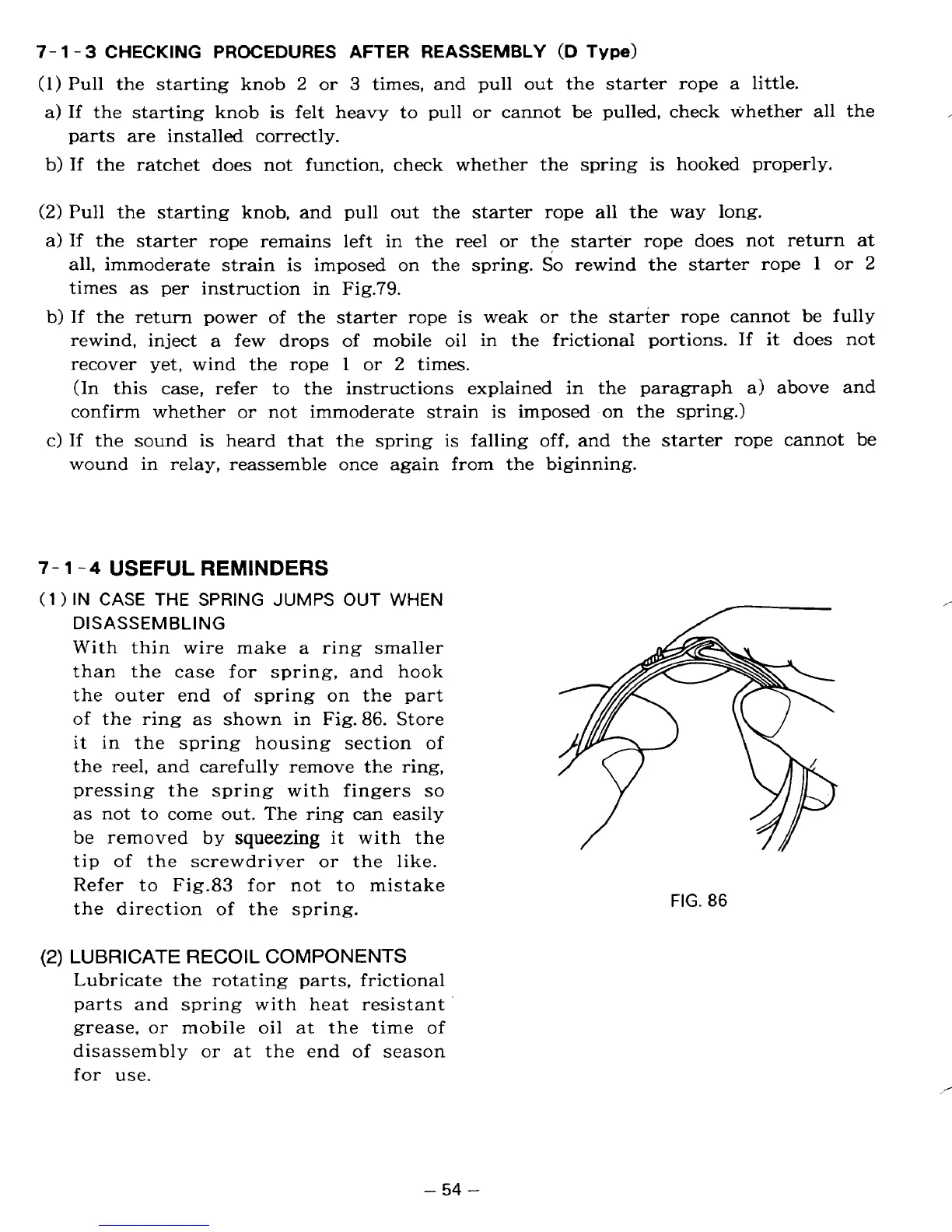

7- 1 - 3 CHECKING PROCEDURES AFTER REASSEMBLY (D Type)
(1) Pull the starting knob 2 or 3 times, and pull out the starter rope a little.
a)
If the starting knob is felt heavy to pull or cannot be pulled, check whether all the
parts are installed correctly.
b) If the ratchet does not function, check whether the spring is hooked properly.
(2) Pull the starting knob, and pull out the starter rope all the way long.
a)
If the starter rope remains left in the reel or the starter rope does not return at
all, immoderate strain
is imposed on the spring. So rewind the starter rope 1 or 2
times as per instruction in Fig.79.
b) If the return power of the starter rope is weak or the starter rope cannot be fully
rewind, inject a few drops of mobile oil in the frictional portions. If it does not
recover yet, wind the rope
1 or 2 times.
(In this case, refer
to the instructions explained in the paragraph a) above and
confirm whether
or not immoderate strain is imposed on the spring.)
c) If the sound is heard that the spring is falling off, and the starter rope cannot be
wound in relay, reassemble once again from the biginning.
7- 1-4 USEFUL REMINDERS
(1 ) IN CASE THE SPRING JUMPS OUT WHEN
DISASSEMBLING
With thin wire make a ring smaller
than the case for spring, and hook
the outer end of spring
on the part
of the ring as shown in Fig. 86. Store
it in the spring housing section of
the reel, and carefully remove the ring,
pressing the spring with fingers
so
as not to come out. The ring can easily
be removed
by squeezing it with the
tip of the screwdriver or the like.
Refer to Fig.83 for
not to mistake
the direction of the spring.
(2) LUBRICATE RECOIL COMPONENTS
Lubricate the rotating parts, frictional
parts and spring with heat resistant
grease,
or mobile oil at the time of
disassembly or at the end of season
for use.
FIG. 86
,
- 54 -
