Robin EC04ER User Manual

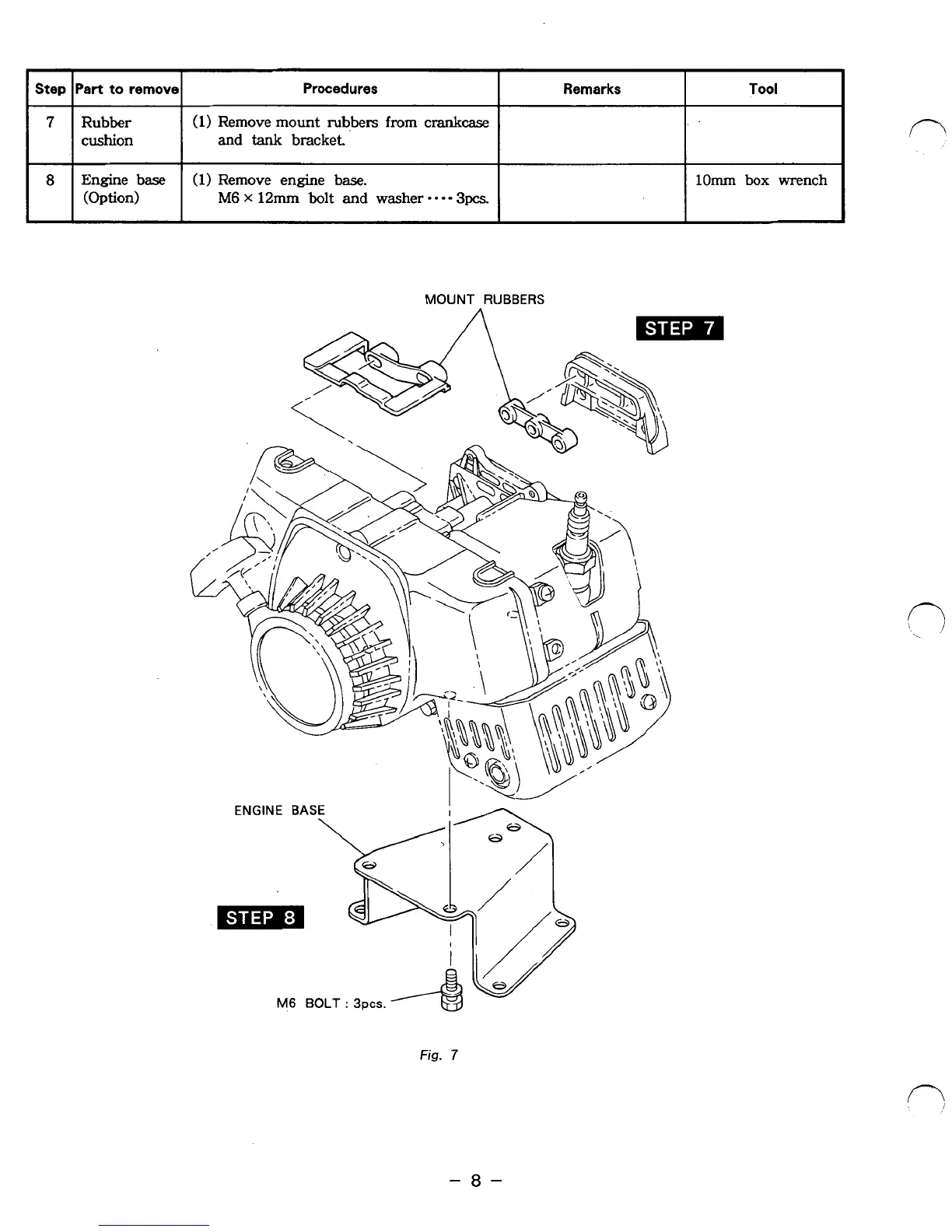

I Step lPart to remove1 Procedures I Remarks I Tool I
7
(1) Remove mount rubbers from crank- Rubber
cushion
and tank bracket.
8 lOmm box wrench
(1) Remove engine base. Engine base
(Option)
M6 x 12mm bolt and washer * - - - 3pcs.
MOUNT RUBBERS
I
M6 BOLT : 3pcs.
fl
Fig. 7
-8-

Robin EC04ER Specifications

General

Brand	Robin
Model	EC04ER
Category	Engine
Language	English
