Robin EC04ER - Page 12

&=
Step Part to remove
* cover
Procedures
(1) Remove muffler cover from muffler.
(2) Remove muffler.
M5 x 8mm screw ***a 3pc~:
' M6 bolt and washer - : *-2pcs.
(1) Remove cylinder cover.
M5 X 14mm screw and waSher****2pcs..
M5 X 20mm screw and washer-. 0. lpce.
Remarks
(1) Be careful not to
lose the washer
Tool
Phillips screw driver
lOmm
box wrench
Phillips scniw driver
.
..

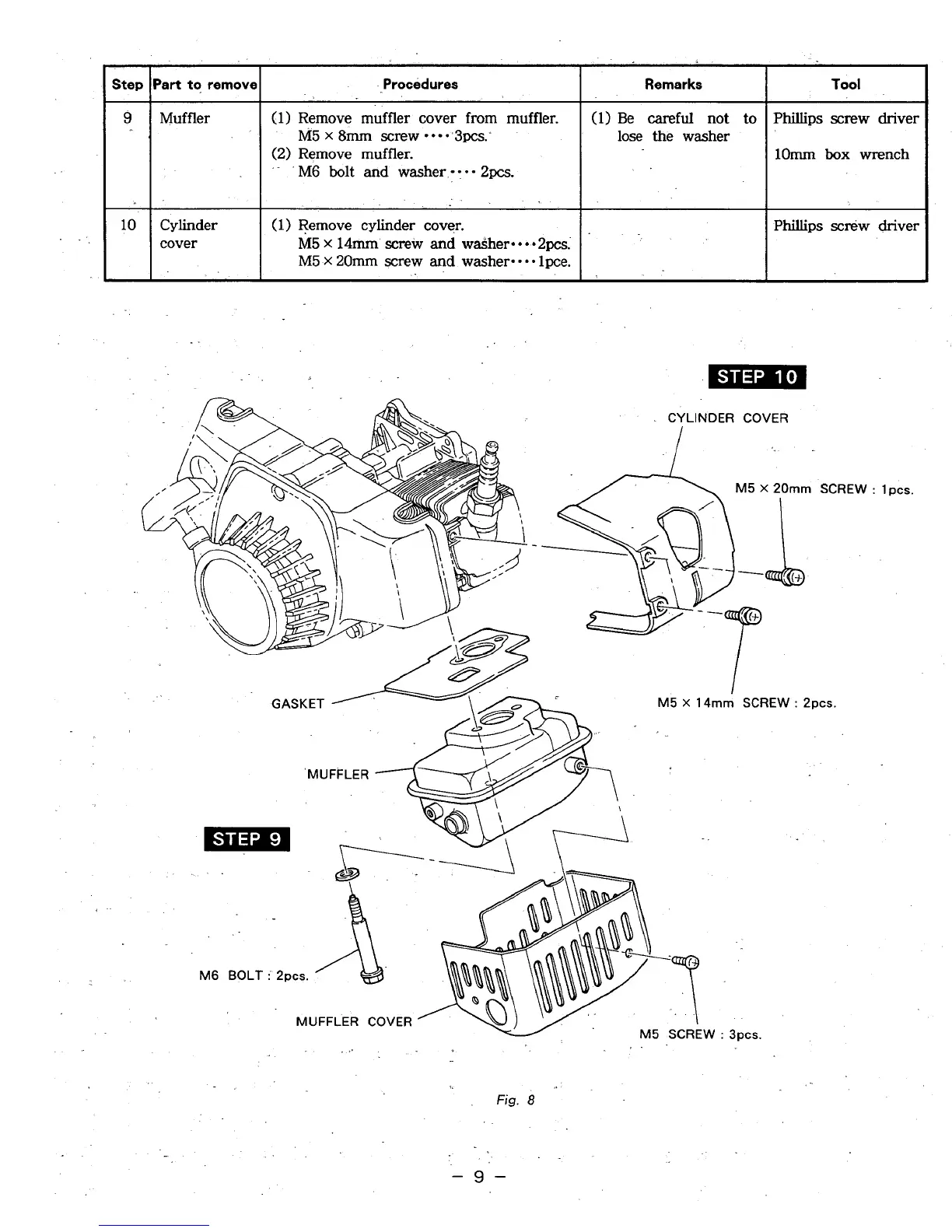

Fig. 8
..
-9-
