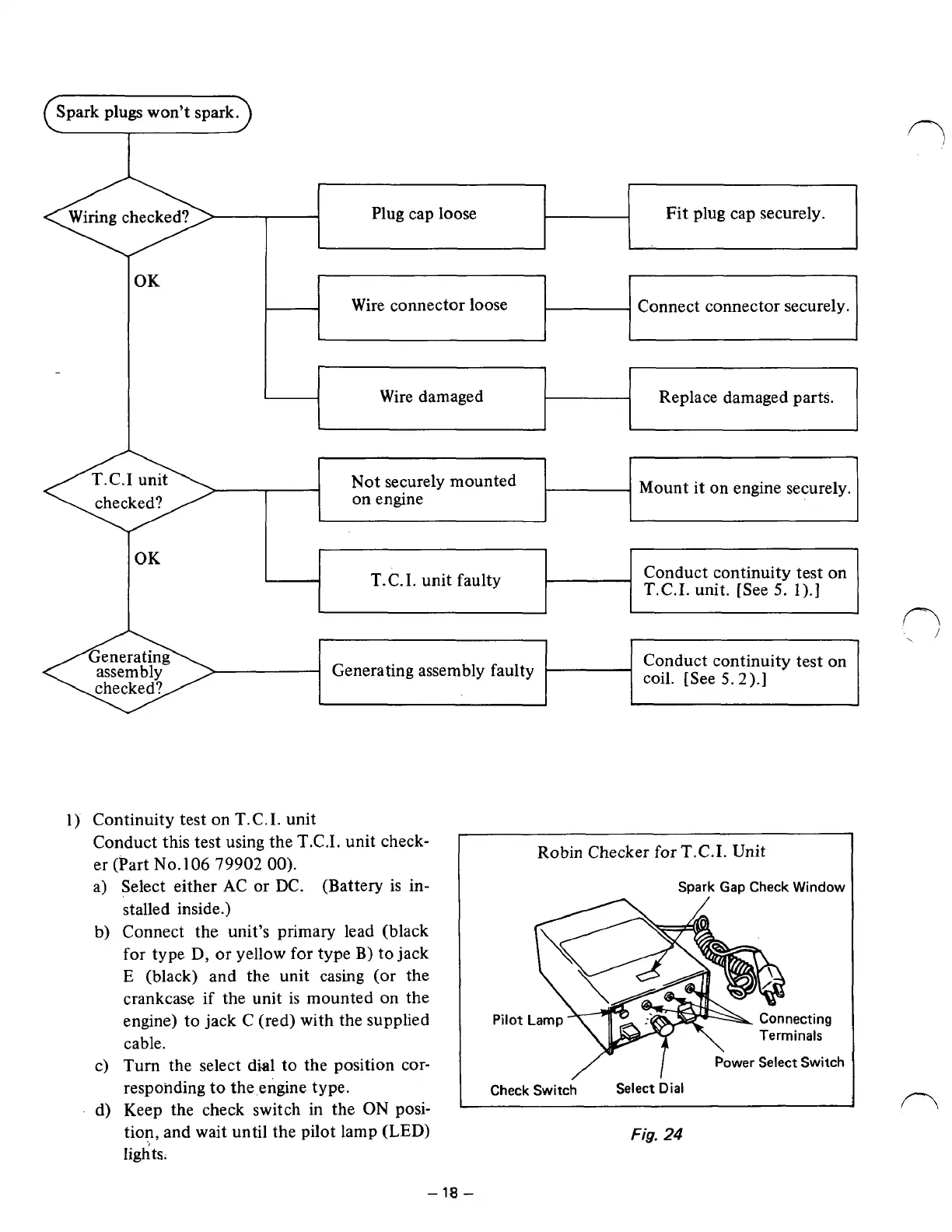

Spark plugs won't spark.
OK
-
Wire connector loose
Connect connector securely.
L
Wire damaged
Replace damaged parts.
~
Mount it on engine securely.
Not securely mounted
on engine
-
OK
i
T.C.I. unit faulty
Conduct continuity test on
T.C.I. unit. [See 5. I).]
r"\
\I
Generating assembly faulty
Conduct continuity test on
coil. [See
5.2).]
1) Continuity test on T.C.I. unit
Conduct this test using the T.C.I. unit check-
er (Part
No.106 79902 00).
Select either AC or DC. (Battery is in-
stalled inside.)
Connect the unit's primary lead (black
for type D, or yellow for type B) to jack
E (black) and the unit casing (or the
crankcase if the unit is mounted on the
engine) to jack
C (red) with the supplied
cable.
Turn the select dial to the position cor-
respoilding to the,engine type.
Keep the check switch
in the ON posi-
tion, and wait until the pilot lamp
(LED)
lights.
Robin Checker
for T.C.I. Unit
Spark Gap Check Window
wer Select Switch
Check Switch Select
Dial
Fig. 24
- la -
