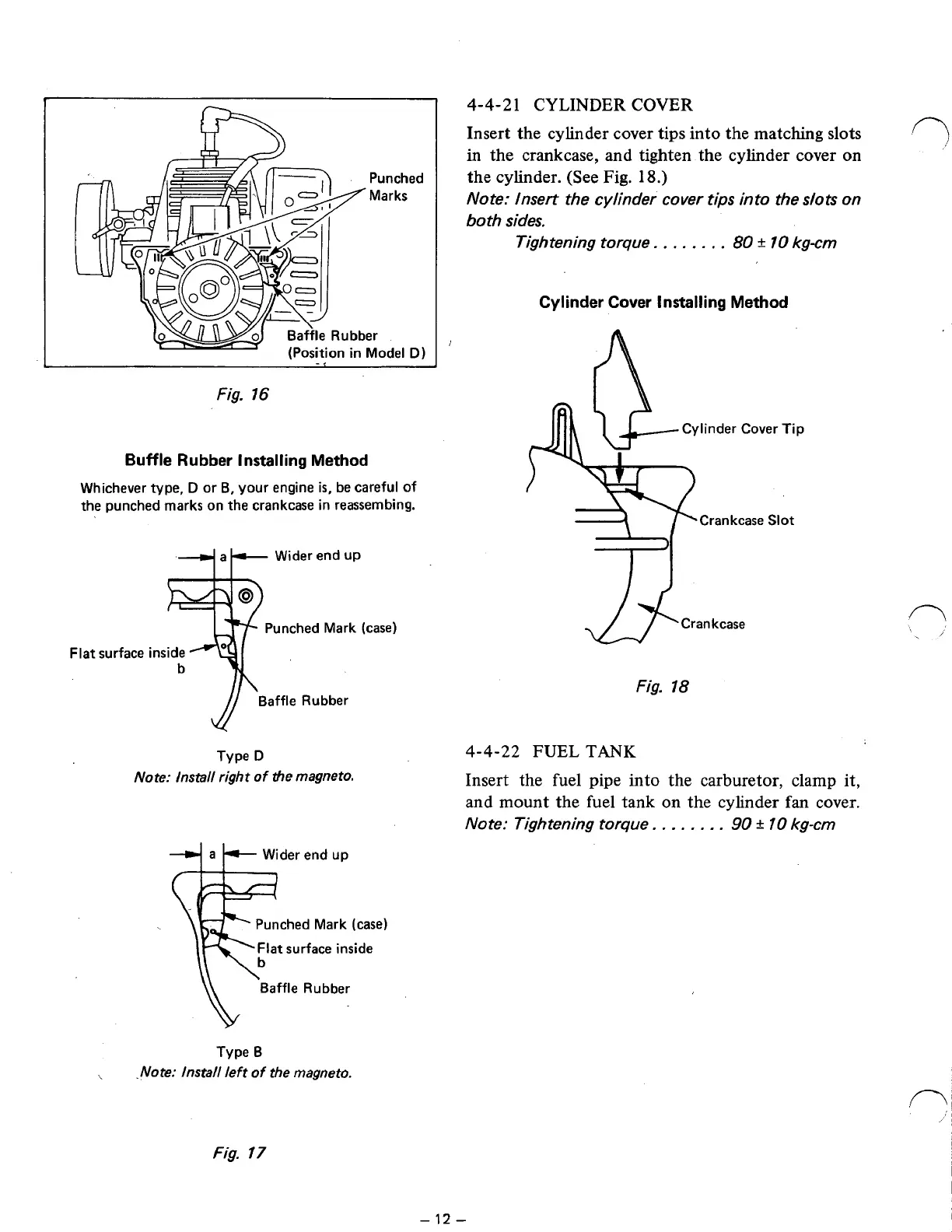

(Position
in
Model
Dl
Fig.
16
Buffle
Rubber
installing Method
Whichever type,
D
or
B,
your engine
is,
be careful of
the
punched marks on the crankcase in reassembing.
Wider end up
Punched Mark (case)
Flat surface inside
Baffle Rubber
Type
D
Note:
Install
right
of
the magneto.
Wider end up
Punched Mark (case)
Flat surface inside
Baffle Rubber
Type
,
.Note:
Install left
of
the magneto.
4-4-21
CYLINDER COVER
Insert the cylinder cover tips into the matching slots
in the crankcase, and tighten the cylinder cover on
the cylinder. (See
Fig.
18.)
Note: Insert the cylinder cover tips in
to
the
slots
on
both sides.
Tightening torque
Cylinder Cover
.
.
.
.
.
.
.
.
80
f
10
kg-cm
Installing Method
Crankcase
Fig.
18
4-4-22
FUEL
TANK
Insert the fuel pipe into the carburetor, clamp it,
and mount the fuel tank on the cylinder
fan
cover.
Note: Tightening torque
. .
.
.
. .
.
.
90
f
10
kg-cm
f7
,’
fig.
17
-
12
-
