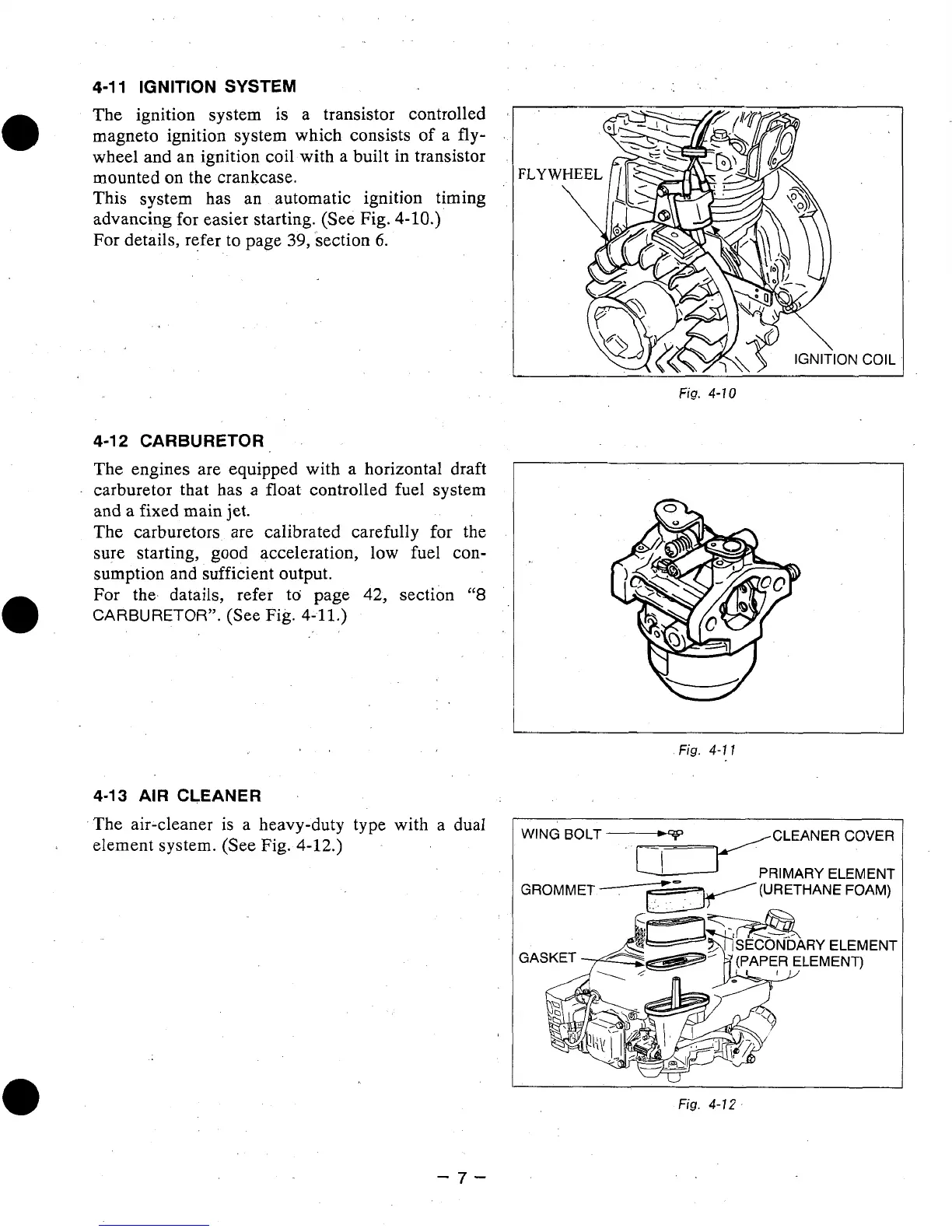

4-1 1 IGNITION SYSTEM
The ignition system is a transistor controlled
magneto ignition system which consists of a
fly-
wheel and an ignition coil with a built in transistor
mounted on the crankcase.
This system has an automatic ignition timing
advancing for easier starting. (See Fig.
4-10.)
For details, refer to page 39, section 6.
4-12 CARBURETOR
The engines are equipped with a horizontal draft
carburetor
that has a float controlled fuel system
and a fixed main jet.
The carburetors are calibrated carefully for the
sure starting,
good acceleration, low fuel con-
sumption and sufficient output.
For the- datails, refer
to page 42, section “8
CARBURETOR”. (See Fig. 4-11.)
4-13 AIR CLEANER
The air-cleaner is a heavy-duty type with a dual
. element system. (See Fig. 4-12.)
-7-
Fig. 4-1 1
WING BOLT I;’ < CLEANER COVER
PRIMARY ELEMENT
GROMMET eo #(URETHANE FOAM)
SECONDARY ELEMENT
(PAPER ELEMENT)
. :’ . .’ J
SECONDARY ELEMENT
PAPER ELEMENT)
Fig. 4-12
