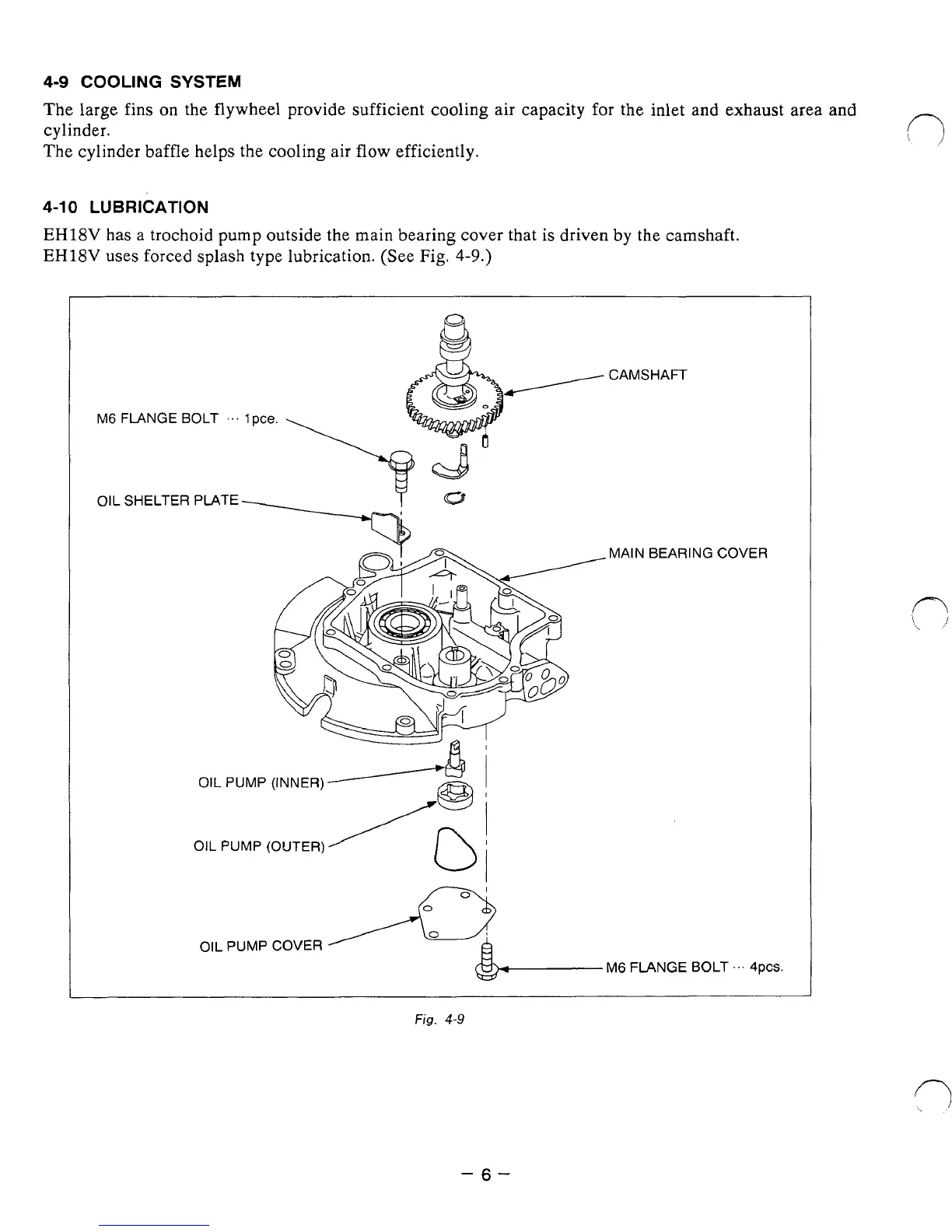

4-9 COOLING SYSTEM
The large fins on the flywheel provide sufficient cooling air capacity for the inlet and exhaust area and
cylinder.
The cylinder baffle helps the cooling air flow efficiently.
4-1 0 LUBRICATION
EH18V has a trochoid pump outside the main bearing cover that is driven by the camshaft.
EH18V uses forced splash type lubrication. (See Fig. 4-9.)
/ CAMSHAFT
M6 FLANGE BOLT ... 1 pce.
OIL SHELTER PLATE
M, AIN BEARING COVER
OIL PUMP COVER
&- M6 FLANGE BOLT ... 4pcs.
Fig. 4-9
-6-
