5-3 DISASSEMBLY PROCEDURES (PRO POLY) -CONTINUED
-
Step
6
-
Part to remove
Air cleaner
Procedures
(1) Remove air cleaner element
M6 wing
bolt .... lpce.
(2) Remove breather hose from cleaner base
and crankcase.
(3) Remove air cleaner base from air-cleaner
bracket.
M6X12mm
bolt ---- lpce.
cleaner) from carburetor.
M6
nut - - 2pcs.
M6X12mm
bolt .... lpce.
(4) Remove cleaner base and gasket (air
(5) Remove bracket (AK) from the engine.
Remarks Tool
lOmm box wrench
lOmm box wrench
lOmm box wrench
M6 WING BOLT '1. 1 pce.
AIR CLEANER ELEMENT \
r:

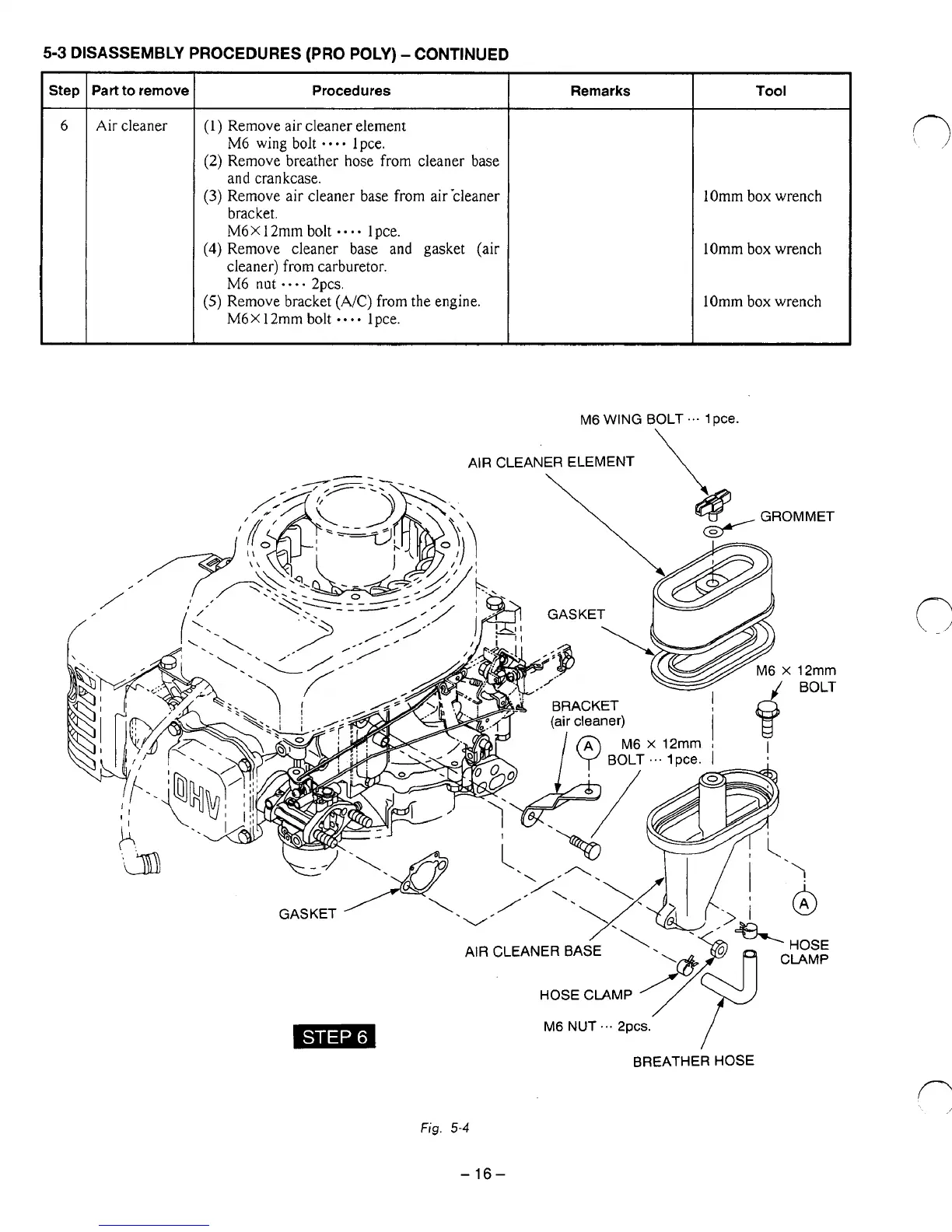

Fig. 5-4
