Robin EH18V OHV - Page 22

Dart to remove
Carburetor
Muffler
Procedures
(1) Remove carburetor from stud bolts.
(2) Remove gasket and insulator from stud
bolts.
(I) Remove muffler cover from muffler.
M5X lOmm tapping screw .... 3pcs.
(2) Remove muffler and gasket. (muffler)
M8 X70rnm bolt and washer assy
M8 X 16mm bolt and washer assy
-*.. Zpcs.
.*.- lpce.
Remarks
M5 x 10mm TAPPING SCREW ... 3pcs.
\
MUFFLER COVER
I M8 x 16mm BOLT AND
Tool
(+) driver
12mm
box wrench
CARBURETOR

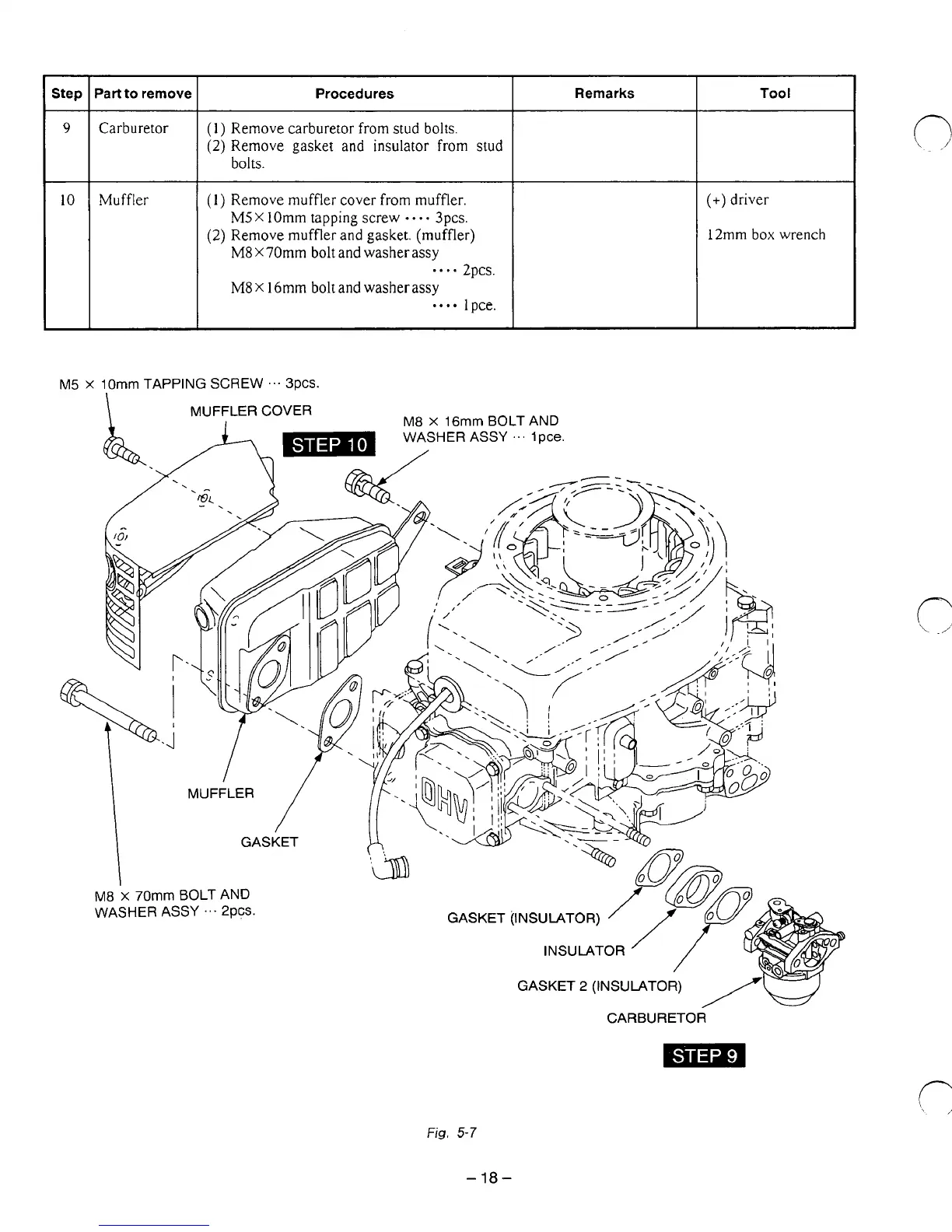

Fig. 5-7
- 18-
