Step
Too
I
Remarks
Procedures
Part
to remove
15
lOmm
box
wrench
(1)

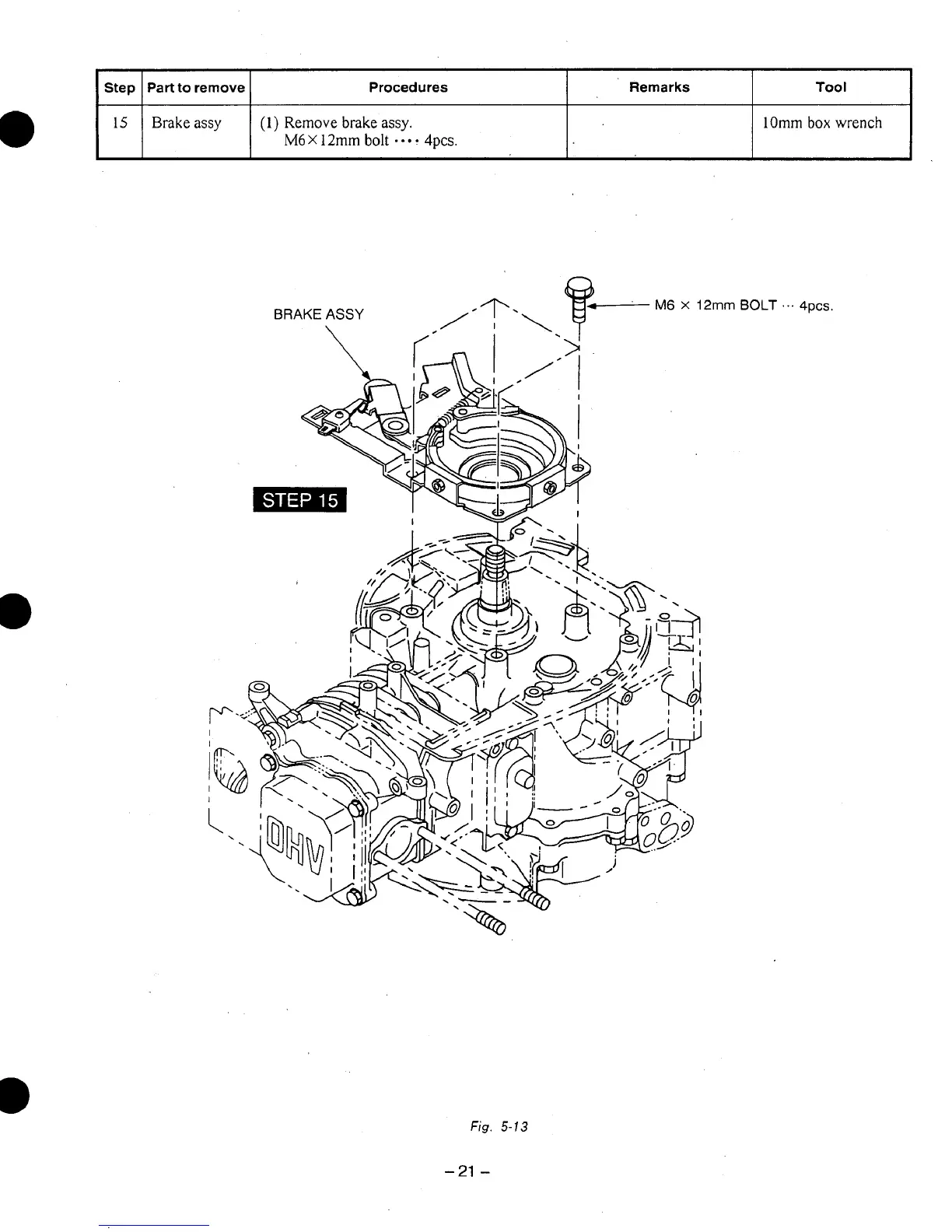

Remove
brake
assy.
Brake
assy
M6
X
12mm
bolt
-
-
4pcs.
BRAKE
ASSY
\
M6
x
12mm
BOLT
...
4pcs.
Fig.
5-13
-21
-
