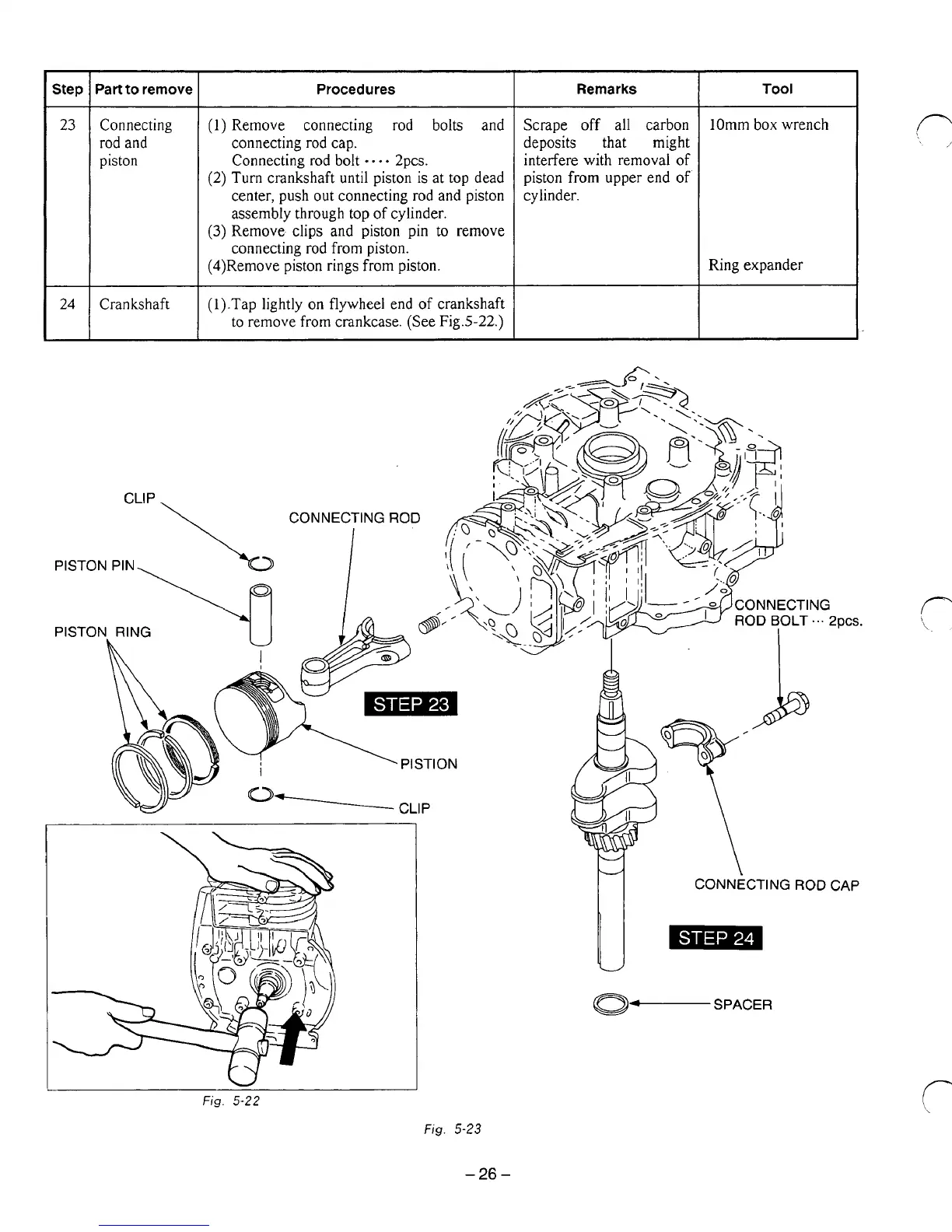

Step I Part to remove
23 I Connecting
rod and
L
piston
24 I Crankshaft
Procedures
Tool
Remarks
I
I
I
(1) Remove connecting rod bolts and
connecting rod cap.
Connecting
rod bolt 2pcs.
(2) Turn crankshaft until piston
is at top dead
center,
push out connecting rod and piston
assembly through
top of cylinder.
(3) Remove clips and piston pin to remove
connecting
rod from piston.
(4)Remove piston rings from piston.
Scrape off all carbon
deposits that might
interfere
with removal of
piston from upper end of
cylinder.
lOmm box wrench
Ring expander
(l).Tap lightly on flywheel end of crankshaft
to remove from crankcase. (See Fig.5-22.)
W
Fig. 5-22
M
\
CONNECTING ROD CAP
0- SPACER
f-
Fig. 5-23
-26-
