Step
22
-

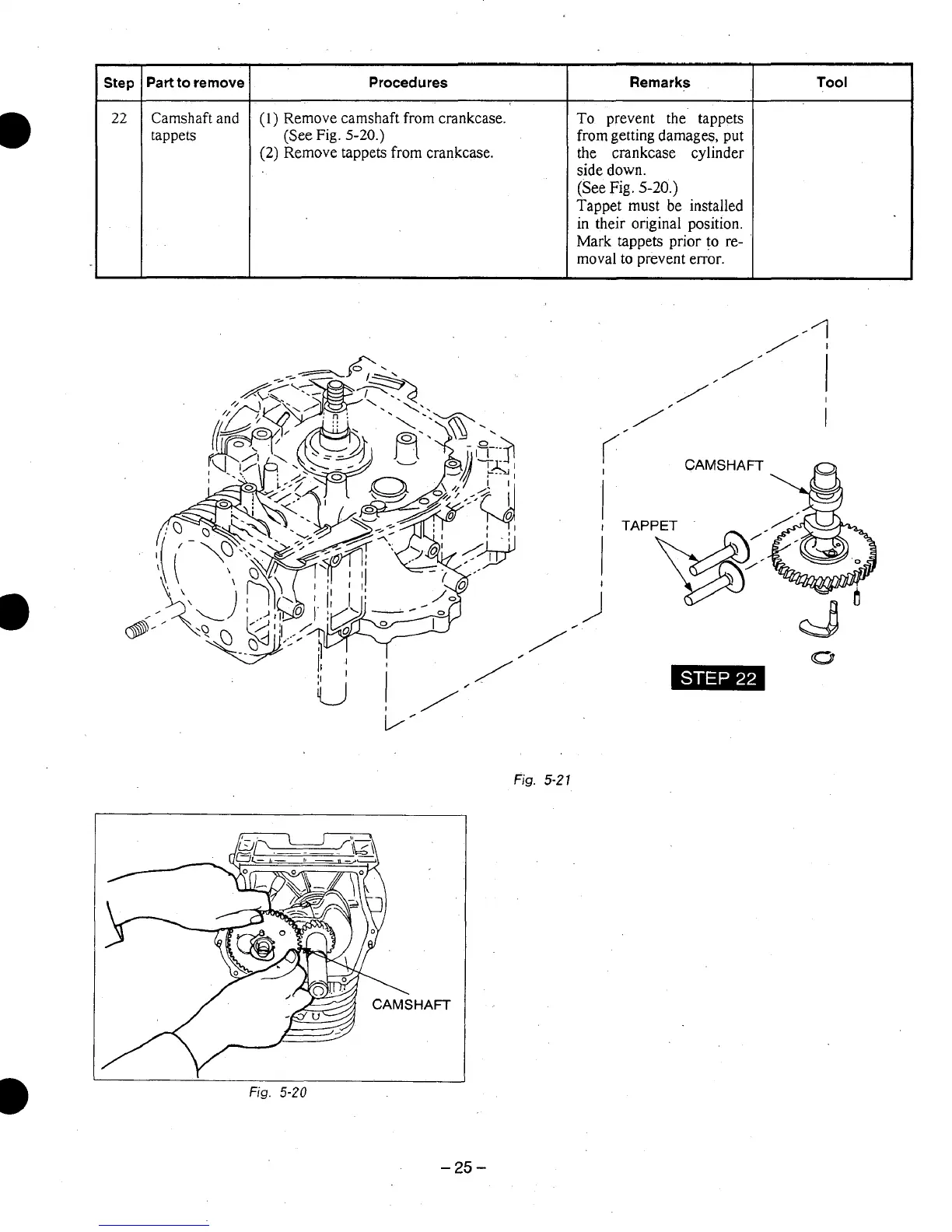

Part to remove 1 Procedures
Camshaft and
(See Fig.
5-20.)
tappets
(1) Remove camshaft from crankcase.
(2) Remove tappets from crankcase.
Remarks
Tool
To prevent the tappets
from getting damages, put
the crankcase cylinder
side
down.
(See Fig. 5-20.)
Tappet must be installed
in their original position.
Mark tappets prior
to re-
moval to prevent error.
f
I
I
/'
B
I I
Fig. 5-20
/,
/,
,/' I
CAMSHAFT
TAPPET
-25-
