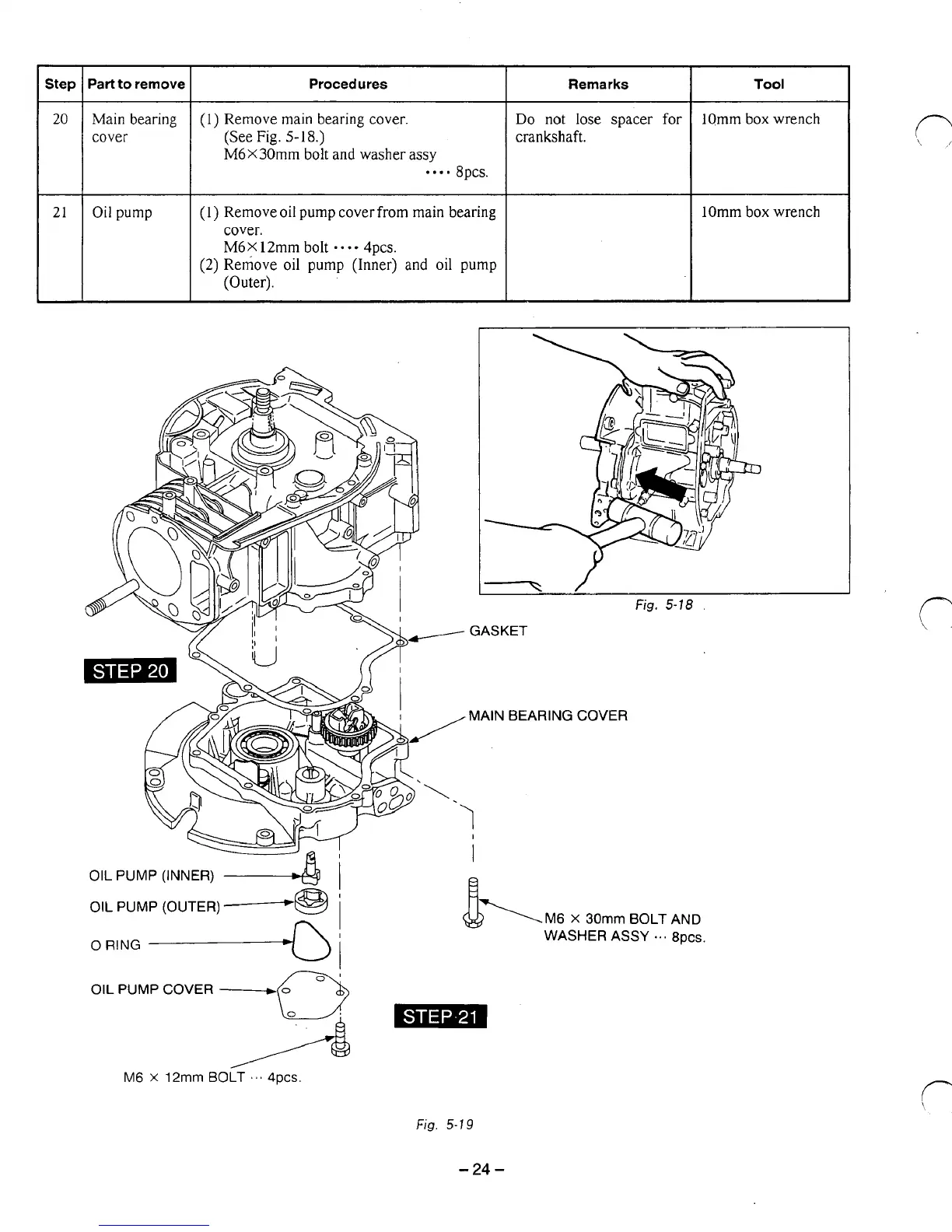

Robin EH18V OHV - Page 28

Part to remove Procedures
Remarks
Tool
Main bearing (1) Remove main bearing cover. Do not lose spacer for lOmm box wrench
cover (See
Fig. 5-18.)
crankshaft.
M6X30mm bolt and washer assy
*e*. 8~~s.
Oil pump (1) Remove oil pump cover from main bearing
cover.
M6 X 12mm bolt - 4pcs.
(Outer).
(2) Remove oil pump (Inner) and oil pump
lOmm box wrench
OIL PUMP COVER I fi
M6 x 12mm BOLT '.' 4pcs.
Fig. 5-1 9
-24 -
