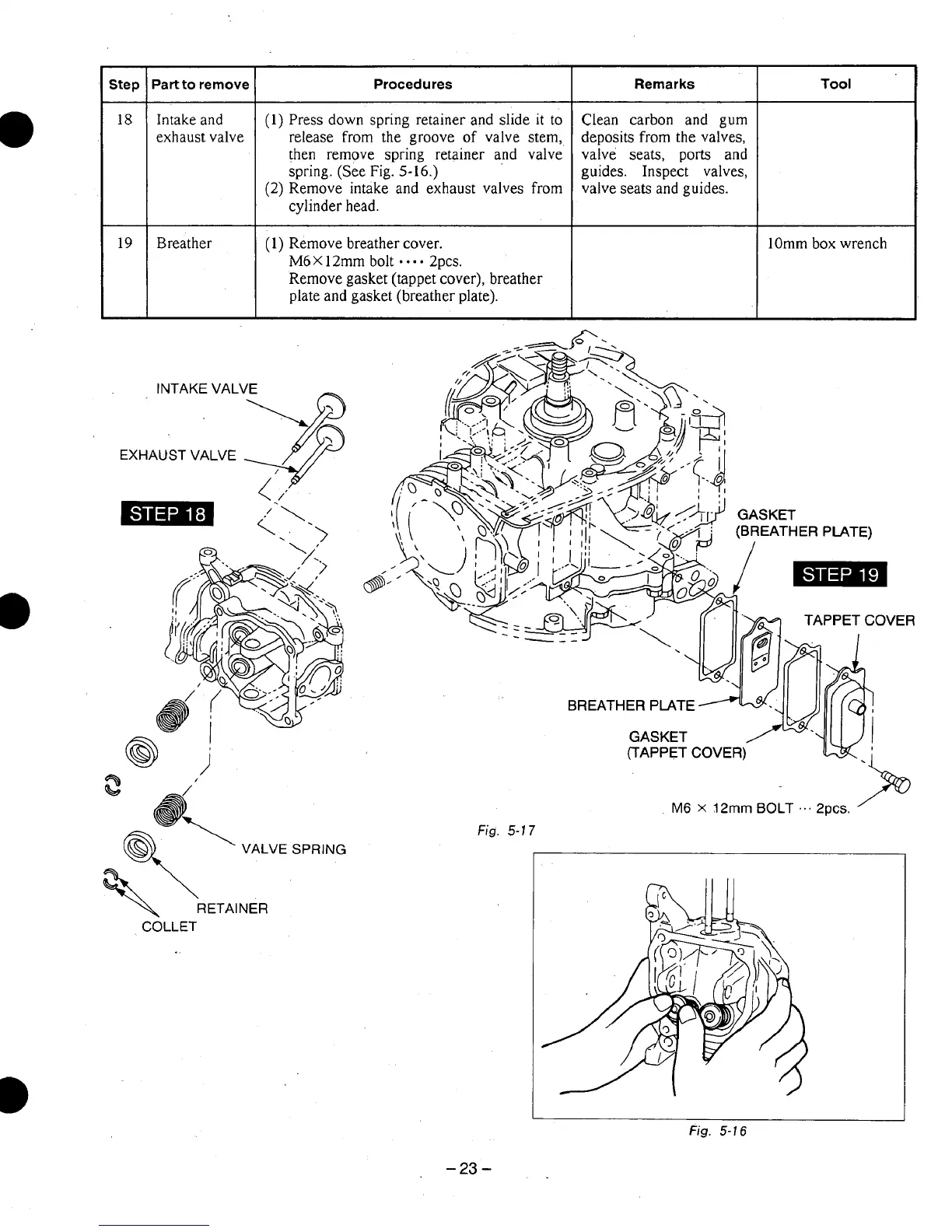

Step
18
-
19
-
'art to remove
Intake and
exhaust valve
Breather
Procedures
Tool
Remarks
(1)
Press down spring retainer and
slide
it
to
release from the groove of valve stem,
then remove spring retainer and valve
spring. (See Fig.
5-16.)
(2) Remove intake and exhaust valves
from
cylinder head.
Clean carbon and gum
deposits from the valves,
valve seats, ports and
guides. Inspect valves,
valve seats and guides.
(1)
Remove breather cover.
M6
X
12mm
bolt
.
2pcs.
Remove gasket (tappet cover), breather
plate and gasket (breather plate).
lOmm box wrench
INTAKE VALVE
EXHAUST VALVE
I
I
VALVE
SPRING
\\
RETAINER
COLLET
M6
x
12mm
BOLT
...
2pcs.
/
Fig.
5-1
7
Fig.
5-1
6
-23
-
