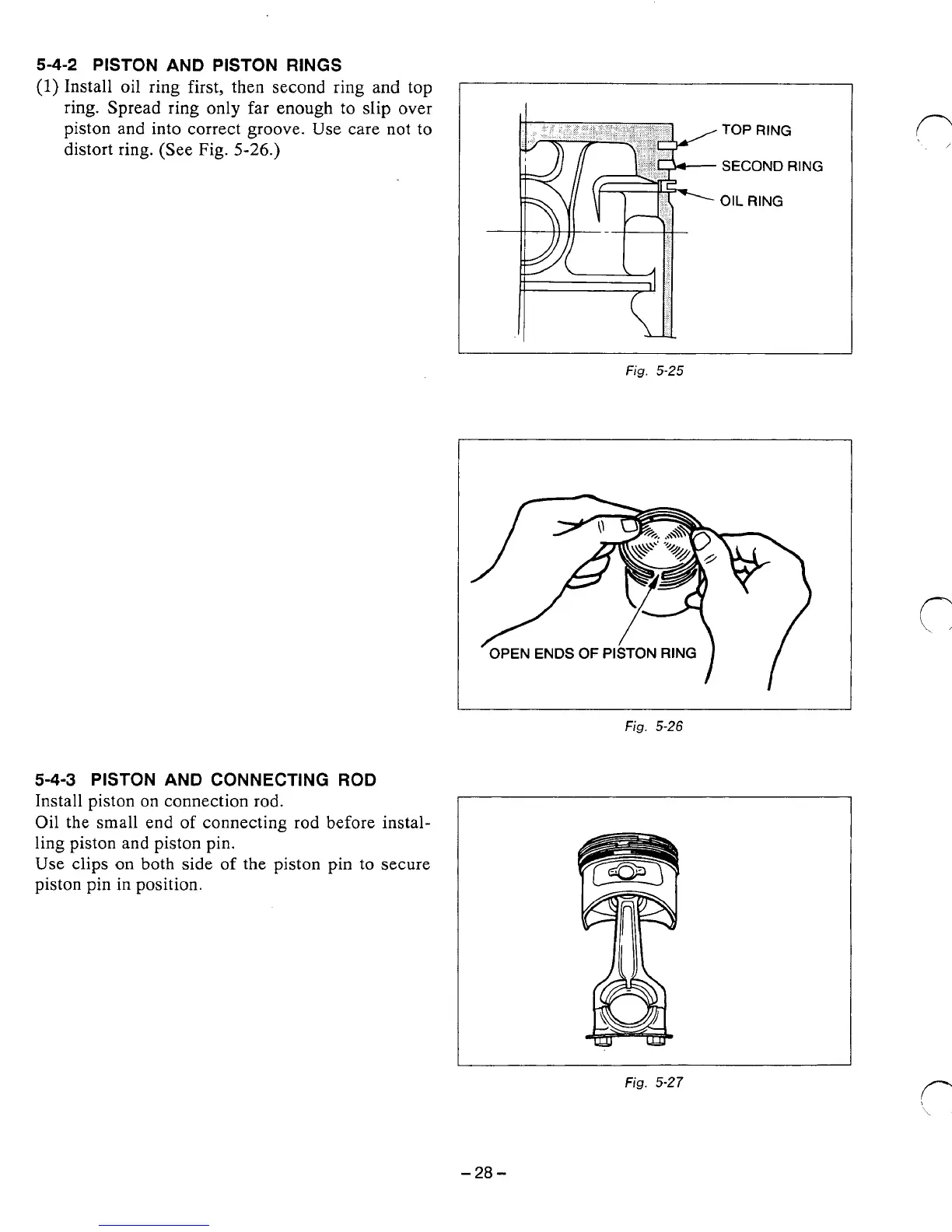

5-4-2
PISTON AND PISTON RINGS
(1)
Install oil ring first, then second ring and top
ring. Spread ring only far enough
to
slip over
piston and into correct groove. Use care not to
distort ring. (See Fig.
5-26.)
5-4-3
PISTON AND CONNECTING ROD
Install piston on connection rod.
Oil the small end of connecting rod before instal-
ling piston and piston pin.
Use
clips
on
both
side
of
the piston pin to secure
piston pin in position.
Fig.
5-25
EN
ENDS
OF
PI
Fig.
5-26
Fig.
5-27
-28-
