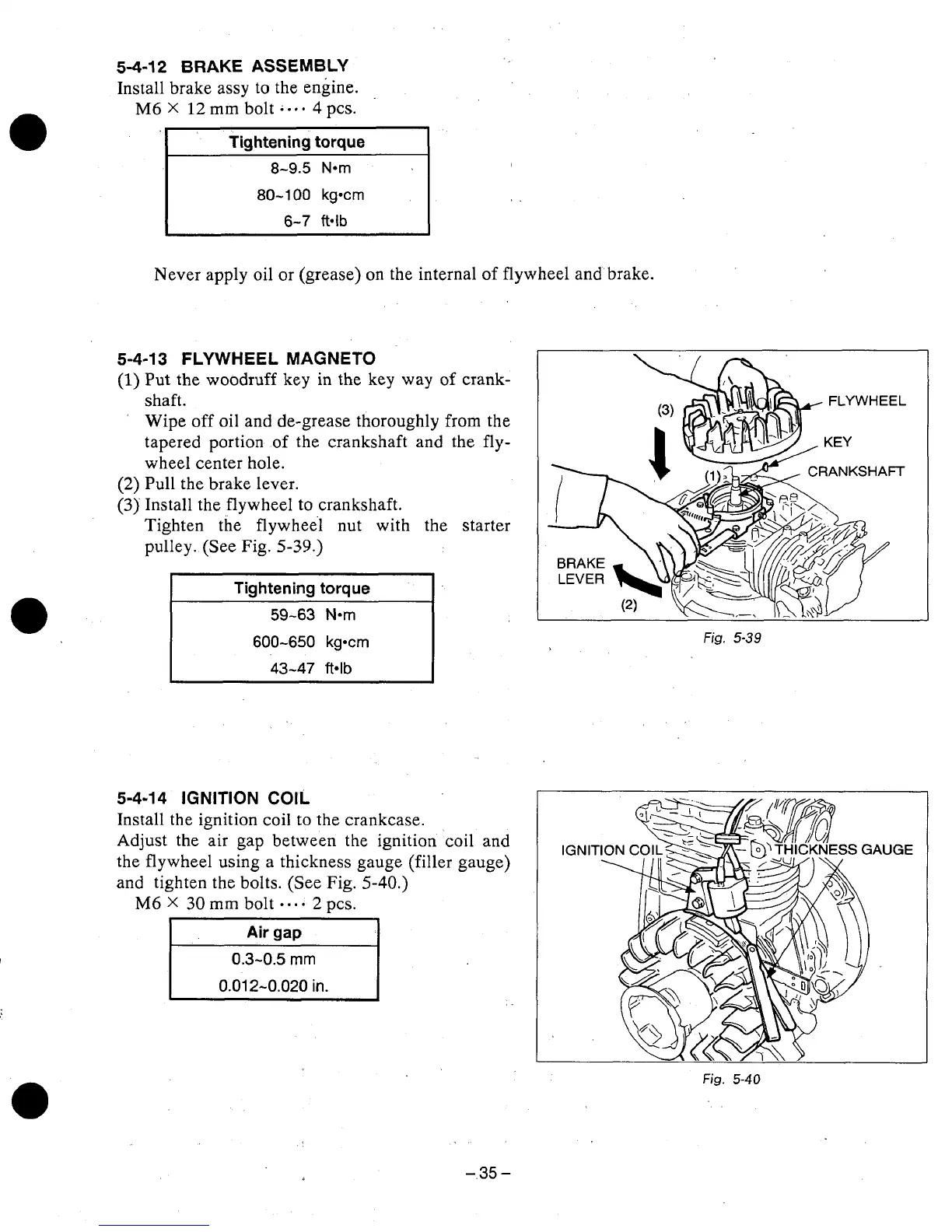

54-12
BRAKE
ASSEMBLY
Install brake assy
to
the engine.
M6
X
12
mm
bolt
.
4
pcs.
80-
1
00
kg-cm
Never apply
oil
or (grease) on the internal
of
flywheel and brake.
5-4-13
FLYWHEEL
MAGNETO
(1)
Put the woodruff key in the key way
of
crank-
shaft.
Wipe
off
oil and de-grease thoroughly from the
tapered portion of the crankshaft and the fly-
wheel center hole.
(2)
Pull the brake lever.
(31
Install the flywheel to crankshaft.
Tighten the flywheel nut with the starter
pulley. (See Fig.
5-39.)
I
Tightening torque
I-
59-63
Nom
600-650
kgocrn
43-47
ft'lb
5-4-14
IGNITION
COIL
Install the ignition coil to the crankcase.
Adjust the air gap between the ignition coil and
the flywheel using a thickness gauge (filler gauge)
and tighten the bolts. (See Fig.
5-40.)
M6
X
30
mm
bolt
-
-
2
pcs.
I
Air
gap
I
I
0.3-0.5
mm
0.01
2-0.020
in.
I
RANKSHAFT
Fig.
5-39
-.35
-
Fig.
5-40
