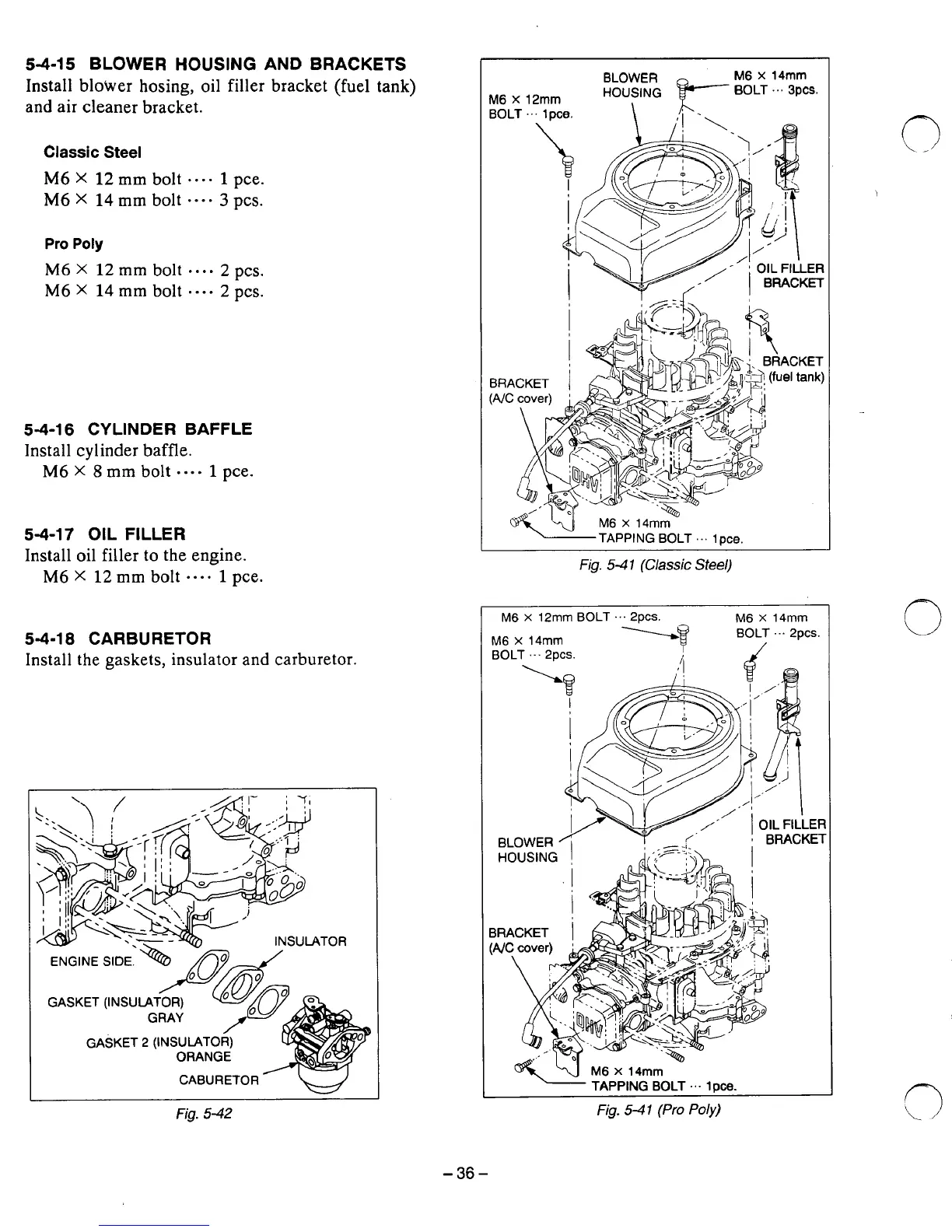

5-4-15 BLOWER HOUSING AND BRACKETS
Install blower hosing, oil filler bracket (fuel tank)
and air cleaner bracket.
Classic Steel
M6 X 12 mm bolt -. - 1 pce.
M6 X 14 mm bolt .... 3 pcs.
Pro Poly
M6 X 12 mm bolt - 2 pcs.
M6 X 14 mm bolt --e. 2 pcs.
5-4-16 CYLINDER BAFFLE
Install cylinder baffle.
M6 X 8 mm bolt 1 pce.
54-17 OIL FILLER
Install oil filler to the engine.
M6 X 12 mm bolt .... 1 pce.
5-4-18 CARBURETOR
Install the gaskets, insulator and carburetor.
ENGINE SIDE.
GASKET 2 (INSULATOR)
CABURETOR
Fig. 542
BLOWER
M6 x 14mm
HOUSING
BOLT
'.' 3PcS.
M6 x 12mm
BOLT
... lpce. \
I
TAPPING BOLT ... 1 Dce
Fig. 54 1 (Classic Steel)
~~~
M6 x 12mm BOLT ... 2pcs.
M6 x 14mm
M6 x 14mm \v
BOLT ... 2pcs.
BOLT
... 2pCS. J
I
\-
TAPPING BOLT ... lorn.
Fig. 5-41 (Pro Poly)
-36-
