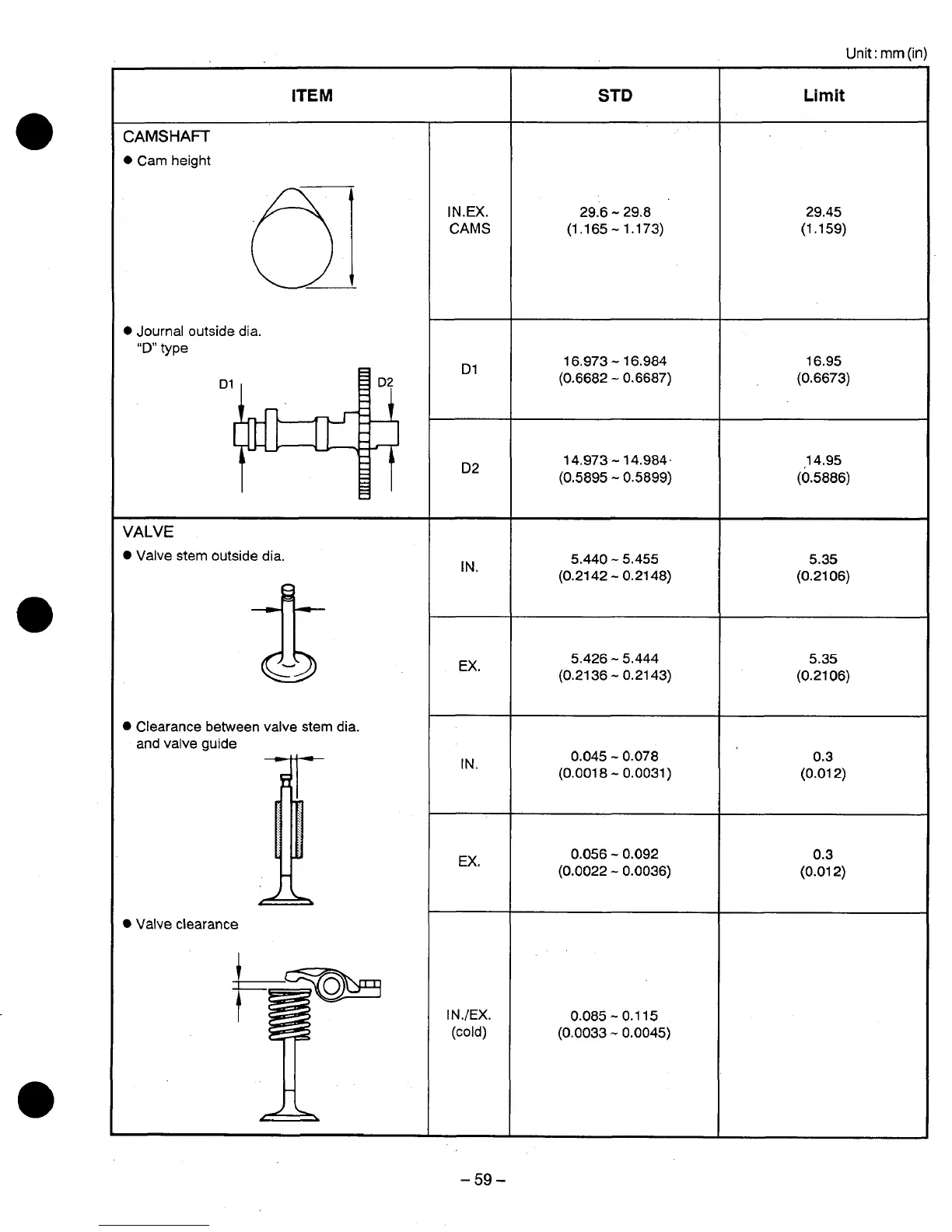

Robin EH18V OHV - Page 63

Unit: mm (ir
~
STD
Limit ITEM
~
IN.EX.
CAMS
CAMSHAFT
0 Cam height
29.6
- 29.8
(1.165-1.173)
29.45
(1.159)
0 Journal outside dia.
"D" type
Dl
16.973
- 16.984
(0.6682
- 0.6687)
16.95
(0.6673)
14.973
- 14.984.
(0.5895
- 0.5899)
14.95
(0.5886)
D2
VALVE
0 Valve stem outside dia.
5.440
- 5.455
(0.21 42 - 0.21 48)
5.35
(0.21 06)
IN.
5.426
- 5.444
(0.21 36
- 0.21 43)
5.35
(0.21 06)
EX.
0 Clearance between valve stem dia.
and valve guide
0.045
- 0.078
(0.0018
- 0.0031)
0.3
(0.01 2)
IN.
EX.
IN./EX.
(cold)
0.056
- 0.092
(0.0022
- 0.0036)
0.3
(0.01 2)
0 Valve clearance
0.085
- 0.1 15
(0.0033
- 0.0045)
-59-
