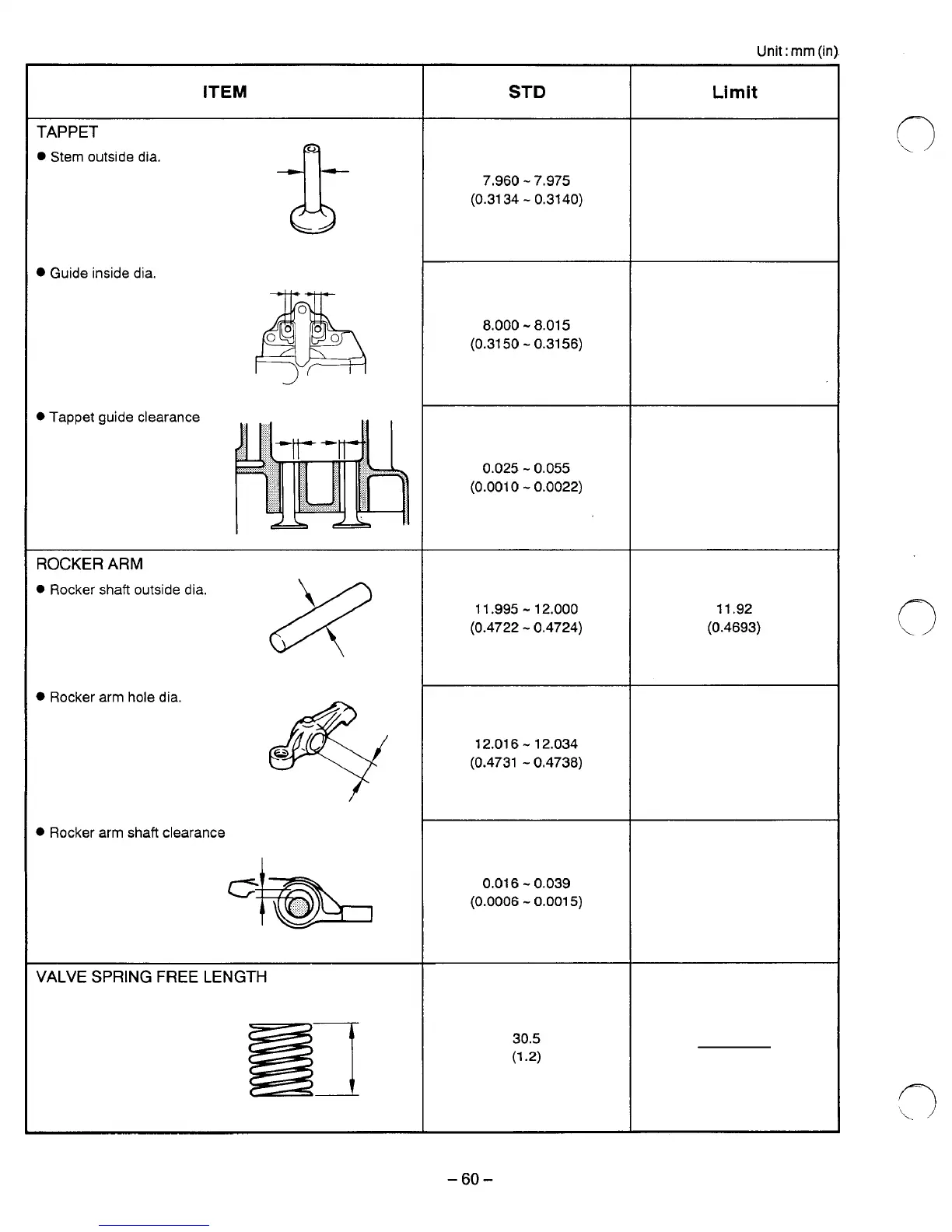

Unit : mm (in).
ITEM
TAPPET
0 Stem outside dia.
8
Guide inside dia.
0 Tappet guide clearance
ROCKER ARM
0 Rocker shaft outside dia.
0 Rocker arm shaft clearance
VALVE SPRING FREE LENGTH
~~
STD
7.960 - 7.975
(0.31 34
- 0.3140)
8.000 - 8.01 5
(0.31 50 - 0.31 56)
0.025 - 0.055
(0.001 0 - 0.0022)
11.995 - 12.000
(0.4722
- 0.4724)
12.01
6 - 12.034
(0.4731
- 0.4738)
0.01
6 - 0.039
(0.0006 - 0.001 5)
-60-
Limit
11.92
(0.4693)
0
