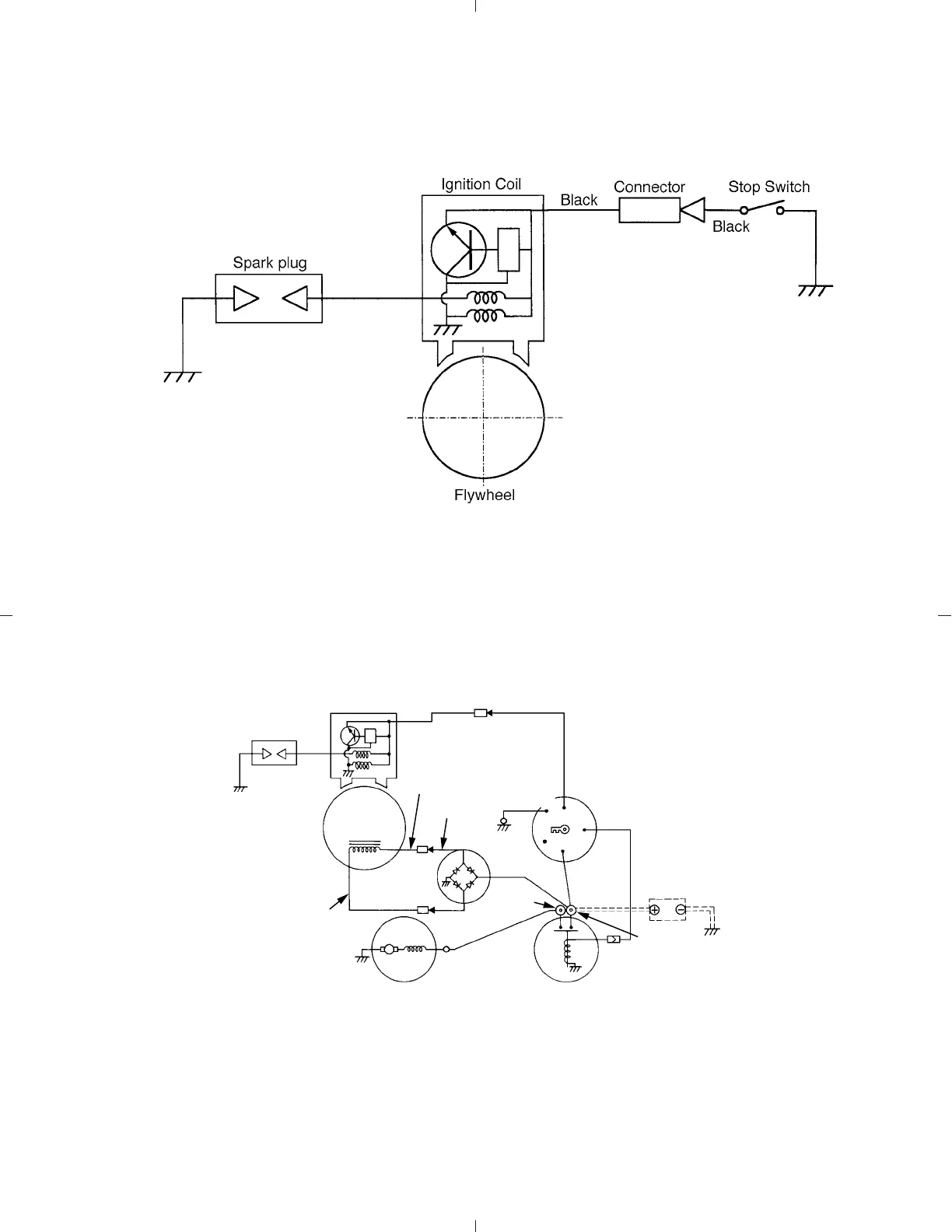

6-3 WIRING DIAGRAM
● STANDARD
● ENGINE WITH ELECTRIC STARTER
Fig. 6-2
Spark Plug
Ignition Coil Unit
Black
Black
Black
Black
Red
Charge coil
Light Blue
Key switch
+M
ST
L
B
Battery
(
12V,24Ah
)
Diode
Rectifier
Green / White
Green / White
Blue
Electric starter Magnetic Switch
Earth wire
LA106
LA406
Green
Green
(
LA406
)
-M
Fig. 6-3
