− 8−
WIRING
■ Connect positive terminal of the
electric starter and positive termi-
nal of the battery with battery
cable.
■ Ground negative terminal of the
battery to the body of engine or
machine with ground wire.
NOTE
Tighten bolts and nuts on terminals
securely so they will not be loosened
by vibration.

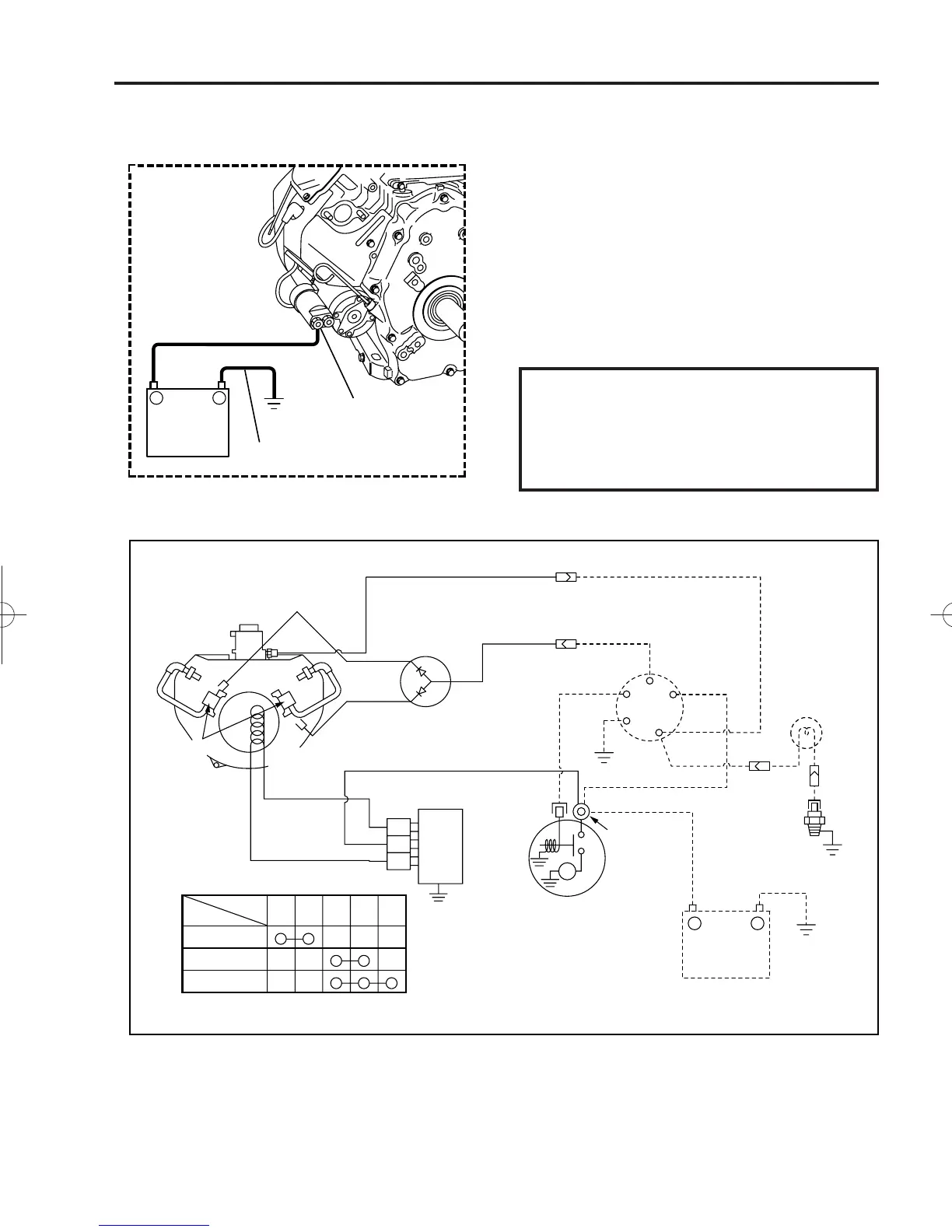

WIRING DIAGRAM
Optional hardware shown by dotted lines. Select wires of proper gauge and
connect battery as shown by the dotted line in the wiring diagram.
To Next Page
