Robin EHO9-2D User Manual

– 3 –

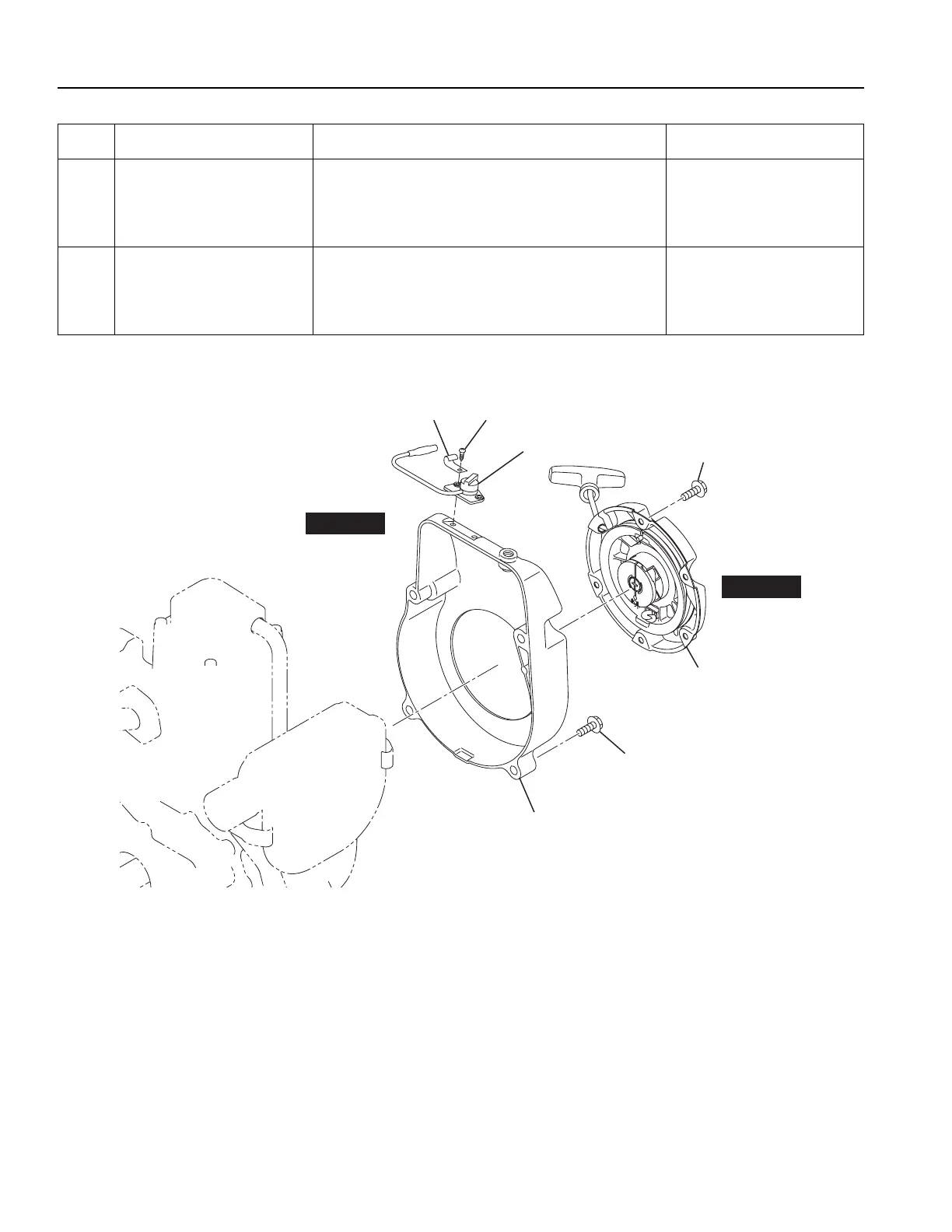

M4 TAPPING SCREW : 2 pcs.CLAMP
M8 x 35 FLANGE
BOLT : 4 pcs.
BLOWER HOUSING
STOP SWITCH
STEP 4
STEP 3
RECOIL
STARTER
M6 x 8 FLANGE
BOLT : 3 pcs.
Step Parts to remove Remarks and procedures Fasteners
3
Recoil starter Remove recoil starter from blower housing.
Be careful of pulling direction of starter rope.
M6 x 8 : 3 pcs.
10 mm box spanner
4
Blower housing
Disconnect wire of stop switch first, then
remove blower housing from crankcase.
M8 x 35 : 4 pcs.
12 mm box spanner
